IDEC SmartRelay functions
IDEC SmartRelay Manual 131

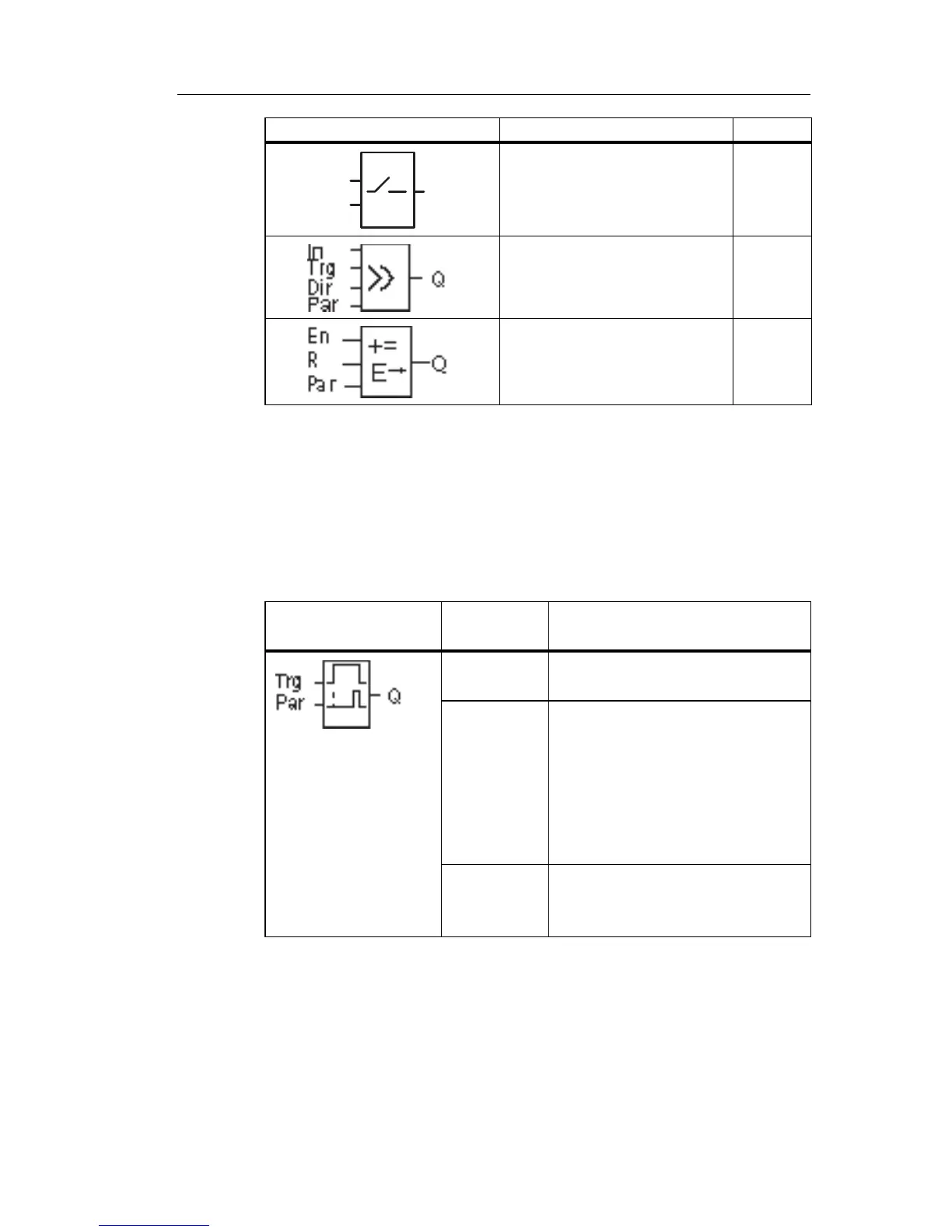

4.4.1 On-delay
Short description
The output is only set after a configur
able on-delay time has
expired.
Softkey
(see Page 205)
REM
Shift register
(see Page 208)
REM
Analog math error detection
(see Page 230)
Symbol in IDEC
SmartRelay
Wiring Description
Input Trg A signal at input Trg (Trigger)
triggers the on-delay timer.
Parameter T represents the time after
which the output is switched
on (0 to 1 transition of the
output signal).
Retentivity:
/ = no retentivity
R = the status is retentive.
Output Q Q is switched on when the set
time T has expired, provided
Trg is still set.
View in IDEC SmartRelay Name of the special function Rem
