IDEC FL1E-H12RCE User Manual

IDEC SmartRelay functions
116 IDEC SmartRelay Manual

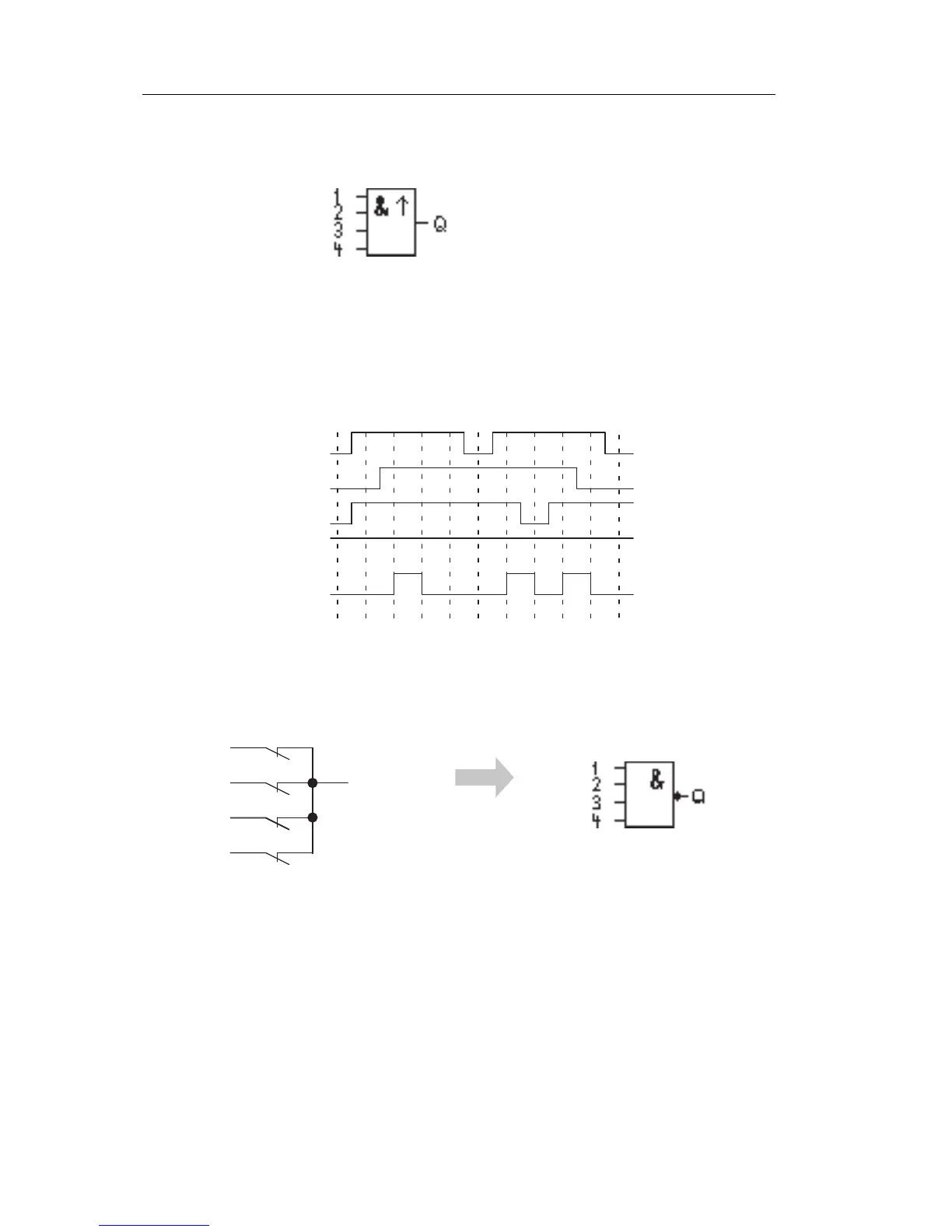

4.2.2 AND with Edge Detection
Symbol in IDEC SmartRelay:
The output of an edge triggered AND is only 1 if all inputs are
1 and if at least one input was low in the previous cycle.
At an unused block input (x): x = 1.
1
Cycle
3
Q
2
12345678910
4
Timing diagram for the AND with Edge Detection
4.2.3 NAND (not AND)
Parallel circuit with multiple normally
closed contacts in the circuit diagram:
Symbol in IDEC
SmartRelay:
The output of the NAND is only 0 if the status at all inputs is
1, i.e. the contacts are closed.
At an unused block input (x): x = 1.
