Applications
IDEC SmartRelay Manual 267

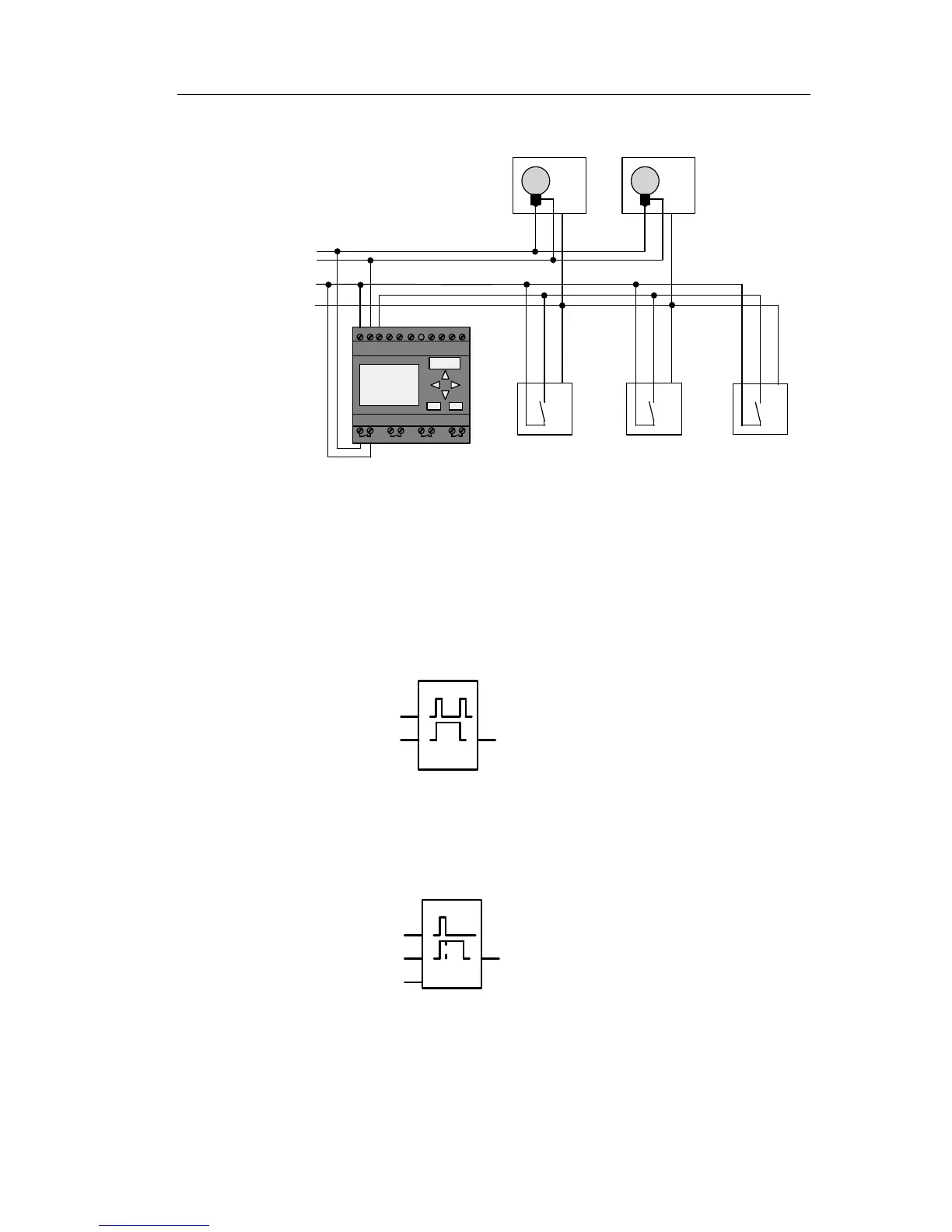

Wiring of a lighting system with FL1E-H12RCC
The external wiring of a lighting system with an IDEC
SmartRelay is no different than it is for a conventional
stairway and corridor lighting system. Only the automatic
stairwell light switch/current impulse relay is replaced.
Supplementary functions are entered directly in IDEC
SmartRelay.
Current impulse relay with IDEC SmartRelay
Output Q1 is toggled with a pulse signal at input I1.
Automatic stairwell light swit
ch w
ith IDEC SmartRelay
Output Q1 is set for the duration of 6 minutes with a pulse
signal at
input I1.
