IDEC SmartRelay installation and wiring
26 IDEC SmartRelay Manual
2.2.1 DIN rail mounting
Mounting

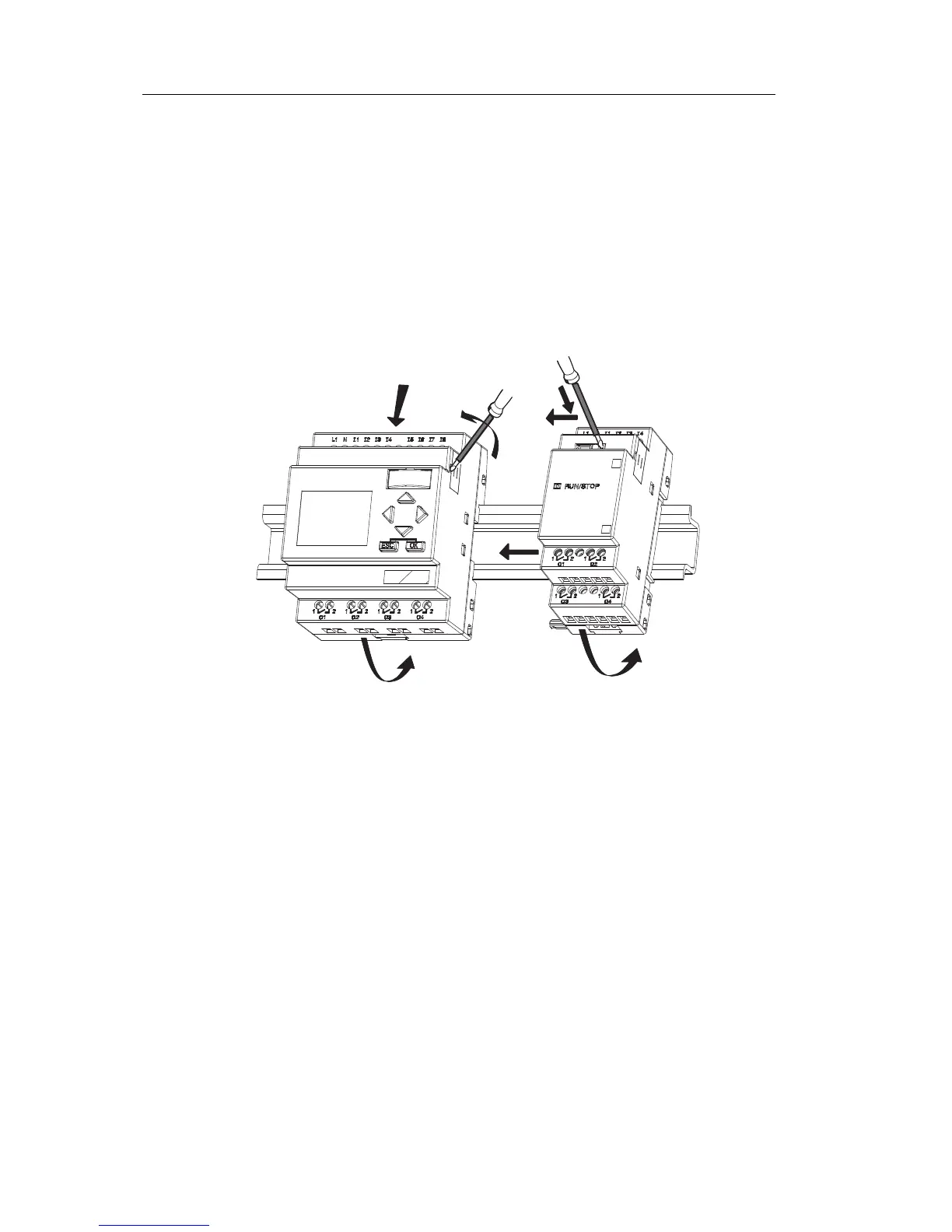

How to mount an IDEC Sm
artRelay base module and a
digital module onto a DIN rail:
IDEC SmartRelay base module:
1. Hook the IDEC SmartRelay base module onto the rail.
2. Push down the lower end to snap it on. The mounting
in
terloc
k at the rear must engage.
IDEC SmartRelay digital module:
3. On the right side of the IDEC SmartRelay base module/
IDEC SmartRelay expan
sion module, remove the
connector cap.
4. Place the digital module onto the DIN rail on the right-
hand side
of the IDEC SmartRelay base module.
5. Slide the digital module towards the left until it contacts
the IDEC
SmartRelay base module.
