IDEC SmartRelay installation and wirin
g
IDEC SmartRelay Manual
27
6.

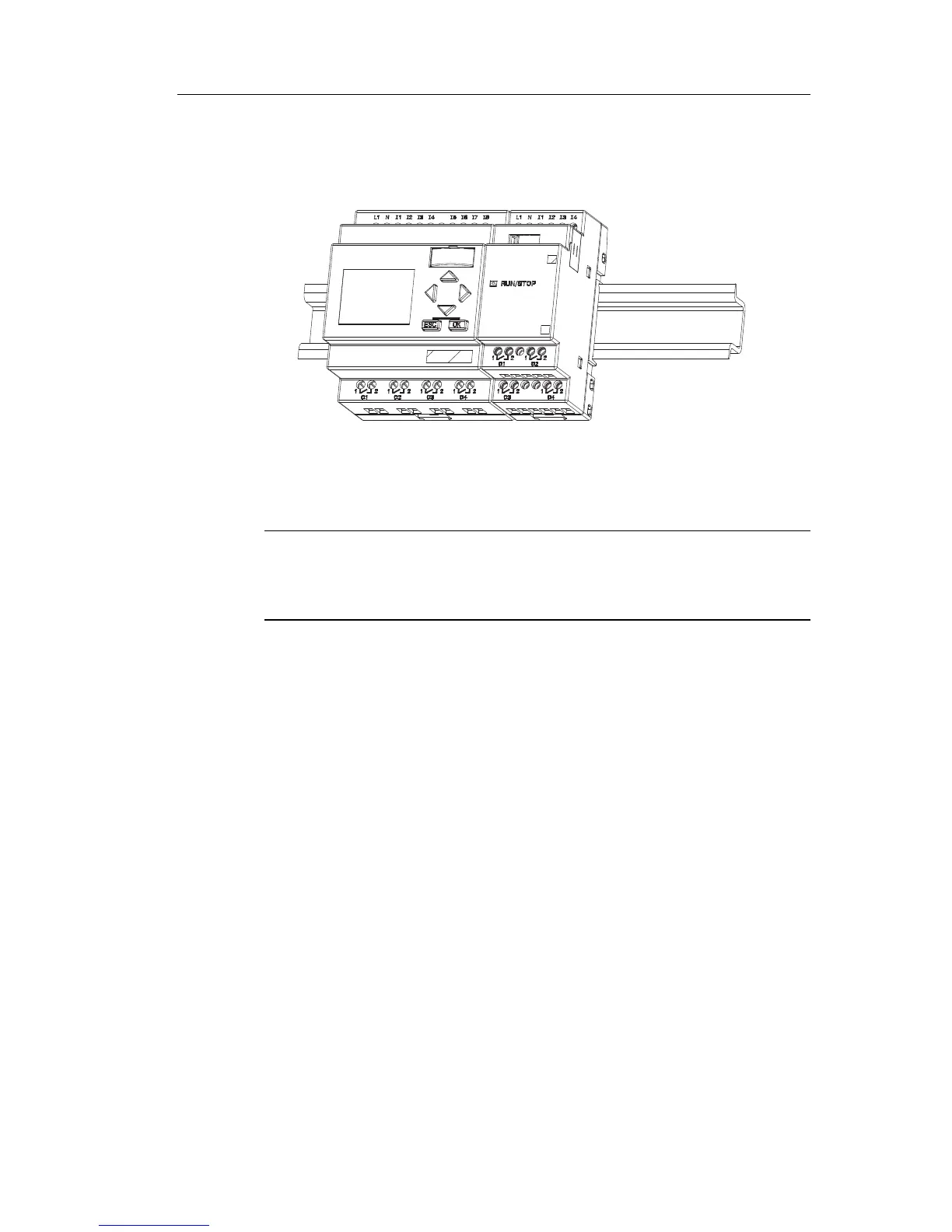

Using a screwdriver, push the
interlock to the left. In its
end position the slide interlock enga
ges in IDEC
SmartRela
y base module.
Repeat steps 3 throu
gh 6 to mount further expansion
modules.
Note
The expansion
interface o
n the last exp
ansion module
must be
covered.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
40
42
Table of Contents
Default Chapter
9
Table of Contents
9
1 Getting Started with IDEC Smartrelay
15
2 IDEC Smartrelay Installation and Wiring
31
Modular IDEC Smartrelay Setup
34
Maximum Setup
34
Setup with Different Voltage Classes
36
Compatibility
38
Installing/Removing IDEC Smartrelay
39
DIN Rail Mounting
40
Wall-Mounting
43
Mounting the Text Display
44
Wiring IDEC Smartrelay
46
Connecting the Power Supply
47
Connecting the Text Display Power Supply
48
Connecting IDEC Smartrelay Inputs
49
Connecting Outputs
58
Connecting the as Interface Bus
63
Putting into Operation
65
Switching on the IDEC Smartrelay/Power on
65
Operating States
68
3 Programming IDEC Smartrelay
71
Connectors
72
Blocks and Block Numbers
74
From Circuit Diagram to IDEC Smartrelay Program
77
The Four Golden Rules for Operating IDEC Smartrelay
80
Overview of IDEC Smartrelay Menus
82
Writing and Starting the Circuit Program
83
Selecting Programming Mode
83
The First Circuit Program
84
Circuit Program Input
86
Assigning a Circuit Program Name
91
Password
92
Switching IDEC Smartrelay to RUN Mode
98
Second Circuit Program
100
Deleting a Block
106
Deleting Block Groups
107
Correcting Programming Errors
108
Selecting Analog Output Values for RUN/STOP Transition
108
Defining the Type of Analog Outputs
109
Deleting the Circuit Program and Password
110
Summertime/Wintertime Conversion
111
Synchronization
115
Memory Space and Circuit Program Size
117
4 IDEC Smartrelay Functions
123
Constants and Connectors - Co
124
Basic Functions List - GF
128
And
129
AND with Edge Detection
130
NAND (Not AND)
130
NAND with Edge Detection
131
NOR (Not OR)
133
XOR (Exclusive OR)
134
NOT (Negation, Inverter)
134
Special Functions
135
Designation of the Inputs
135
Time Response
136
IDEC Smartrelay Manual
136
Backup of the Real-Time Clock
137
Retentivity
137
Parameter Protection
138
Calculating the Gain and Offset of Analog Values
139
Special Functions List - SF
142
On-Delay
145
Off-Delay
149
On-/Off-Delay
150
Retentive On-Delay
152
Interval Time-Delay Relay/Pulse Output
153
Edge-Triggered Interval Time-Delay Relay
154
Asynchronous Pulse Generator
156
Random Generator
158
Stairwell Light Switch
160
Dual-Function Switch
162
Seven-Day Time Switch
164
Twelve-Month Time Switch
169
Up/Down Counter
175
Operating Hours Counter
178
Frequency Trigger
182
Analog Trigger
185
Analog Differential Trigger
188
Analog Comparator
191
Analog Watchdog
196
Analog Amplifier
199
Latching Relay
204
Current Impulse Relay
205
Message Texts
207
Softkey
219
Shift Register
222
Analog Multiplexer
224
Analog Ramp Control
226
PI Controller
230
Pulse Width Modulator (PWM)
236
IDEC Smartrelay Manual
236
Analog Math
239
Analog Math Error Detection
244
5 Configuring IDEC Smartrelay
247
Selecting Parameter Assignment Mode
248
Parameters
249
Selecting the Parameters
250
Modifying Parameters
251
Setting the Default Values for IDEC Smartrelay
253
Setting the Time of Day and Date (FL1E-H12RC
254
Setting the Display Contrast and Backlight Choice
255
Setting the Menu Language
257
Setting the Number of Ais in the Base Module
258
Setting the Start Screen
259
6 IDEC Smartrelay Memory and Battery Cartridge (Card)
261
Security Function (Copyprotect)
264
Inserting and Removing Memory and Battery Cartridges
266
Copying Data from IDEC Smartrelay to the Memory Cartridge
268
Copying Data from the Memory Cartridge to IDEC Smartrelay
270
7 IDEC Smartrelay Software
273
Connecting IDEC Smartrelay to a PC
275
8 Applications
277
Stairway or Corridor Lighting
279
Requirements for a Stairway Lighting System
279
Previous Solution
279
Lighting System with IDEC Smartrelay
280
IDEC Smartrelay Manual
281
Special Features and Expansion Options
282
Automatic Door
283
Requirements of an Automatic Door
283
Conventional Solution
284
Door Control System with IDEC Smartrelay
284
Special Features and Expansion Options
287
Extended Solution with FL1E-H12RCC
287
Air-Conditioning System
290
Requirements for an Air-Conditioning System
290
Advantages of Using IDEC Smartrelay
293
Factory Door
295
Requirements for a Gate Control System
295
Previous Solution
296
Extended IDEC Smartrelay Solution
298
Centralized Control and Monitoring of Several Factory Doors
299
Requirements for a Gate Control System
300
Luminous Rows
303
Requirements for a Lighting System
303
Previous Solution
304
Luminous Row Control System with FL1E-H12RCC
305
Service Water Pump
307
Requirements for a Control System of a Service Water Pump
308
Previous Solution
308
Service Water Pump System with FL1E-H12RCC
309
Special Features and Expansions
310
Technical Data
311
General Technical Data
311
Technical Data: FL1E-H12RCC/FL1E-B12RCC
313
Technical Data: FL1B-M08C2R2
316
Technical Data: FL1E-H12SND
319
Technical Data: FL1B-M08B1S2
321
Technical Data: FL1E-H12RCA/FL1E-B12RCA
323
Technical Data: FL1B-M08D2R2
326
Technical Data: FL1E-H12RCE/ FL1E-B12RCE and FL1B-M08B2R2
328
Switching Capacity and Service Life of the Relay Outputs
331
Technical Data: FL1B-J2B2
332
Technical Data: FL1D-K2B2, FL1D-K2BM2
333
Technical Data: Text Display
334
Determining the Cycle Time
335
IDEC Smartrelay Without Display
339
IDEC Smartrelay Menu Structure
343
IDEC Smartrelay Base Module
343
Text Display
345
D.2 Text Display
345
Type Numbers
347
Index
349
