IDEC SmartRelay functions
IDEC SmartRelay Manual 155
4.4.12 Twelve-month time switch
Short description
The output is controlled by means of a configur
able on/off
date. You can configure the timer to activate on a yearly,
monthly, or user
-defined time basis. With any mode, you can
also configure the timer to pulse the output during the
defined time period. The time period is configurable within
the date range of January 1, 2000 to December 31, 2099
Note
Because FL1E-H12SND does not have a real-time clock, the
twelve-month time switch is not available for this version.

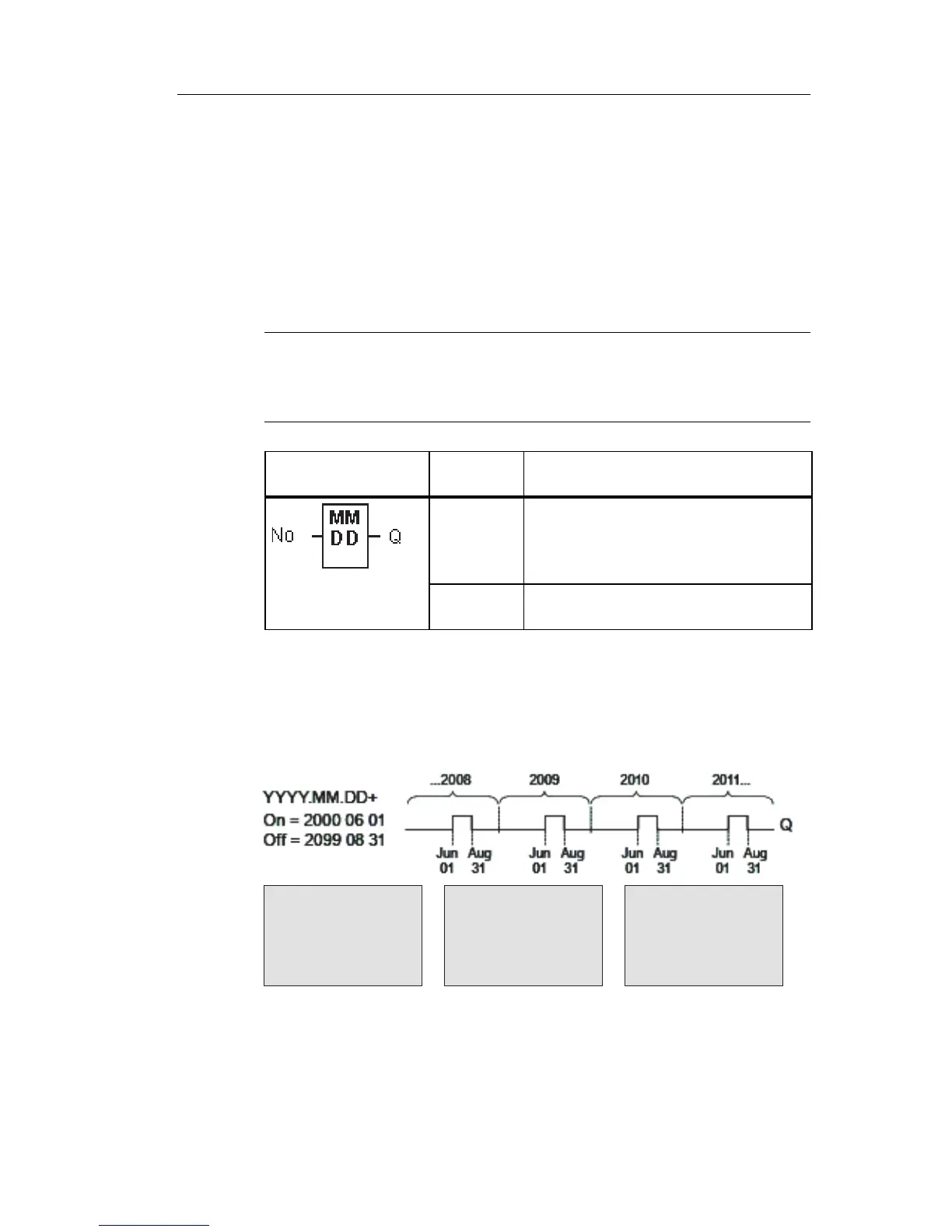

Timing diagrams
Example 1: Yearly mode on, Monthly mode off, Pulse Off,
On Time = 2000
–06–01, Off Time = 2099–08–31: Every year
on June 1 the timer output switches on and remains on until
August 31.
Symbol in IDEC
SmartRelay
Wiring Description
Cam
parameter
At the Cam parameter, you configure
the timer mode, the on-/off-times for
the timer, and whether the output is a
pulse output.
Output Q Q is set when the configured cam is
switched on.
