IDEC SmartRelay functions
156 IDEC SmartRelay Manual

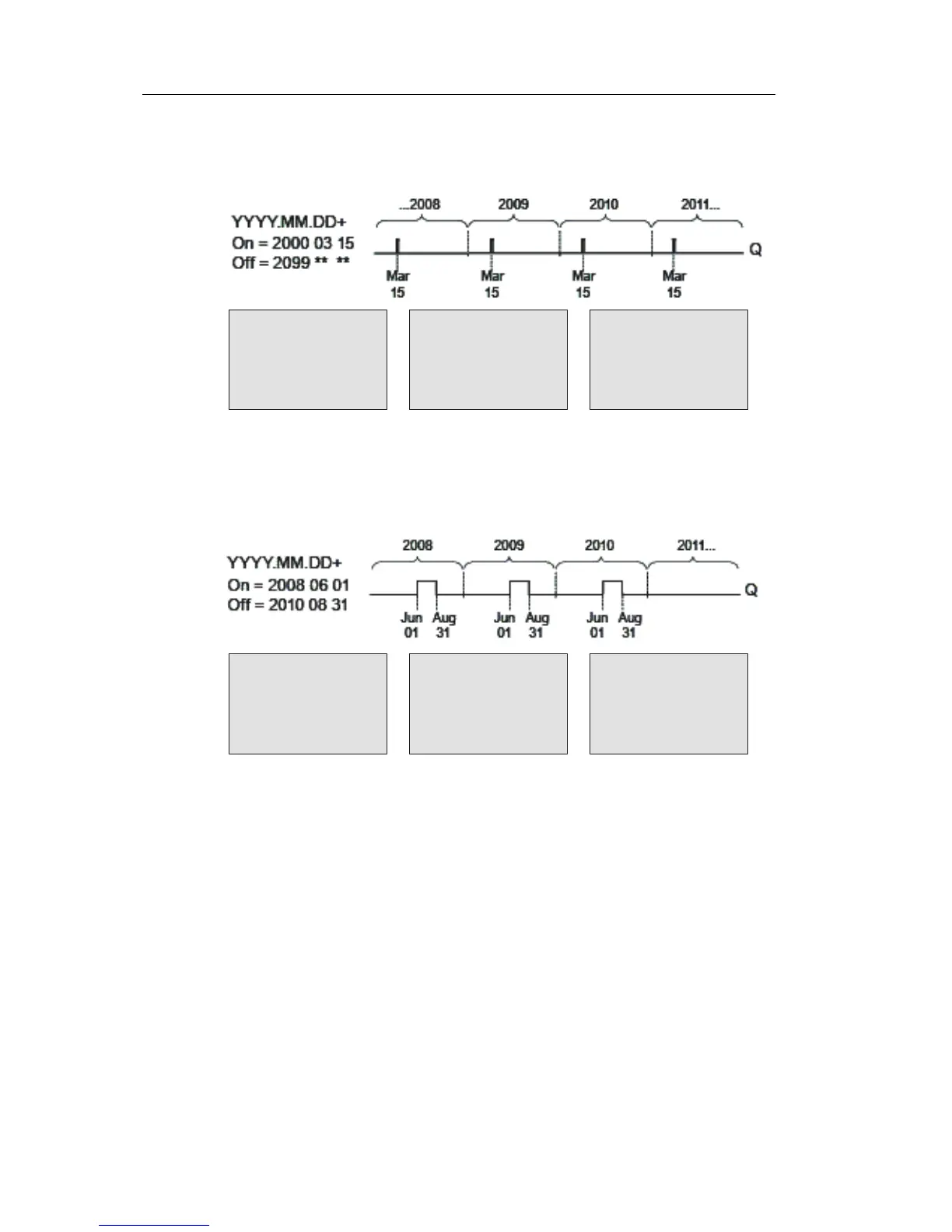

Example 2: Yearly mode on, Monthly mode off, Pulse on,
On Time = 2000
–03–15, Off Time = 2099–**–**: Every year
on March 15, the timer switches on for one cycle.
B6 2+
ON :
YYYY–MM–DD
2000–03–15
B6 1+
Yearly = On
Monthly=Off
Pulse = On
B6 3+
OFF :
YYYY–MM–DD
2099–**–**
Example 3: Yearly mode on, Monthly mode off, Pulse off,
On Time = 2008
–06–01, Off Time = 2010–08–31: On June 1
of 2008, 2009, and 2010 the timer output switches on and
remains on until August 31.
B6 2+
ON :
YYYY–MM–DD
2008–06–01
B6 1+
Yearly = On
Monthly=Off
Pulse =Off
B6 3+
OFF :
YYYY–MM–DD
2010–08–31
