IDEC SmartRelay functions
IDEC SmartRelay Manual 157

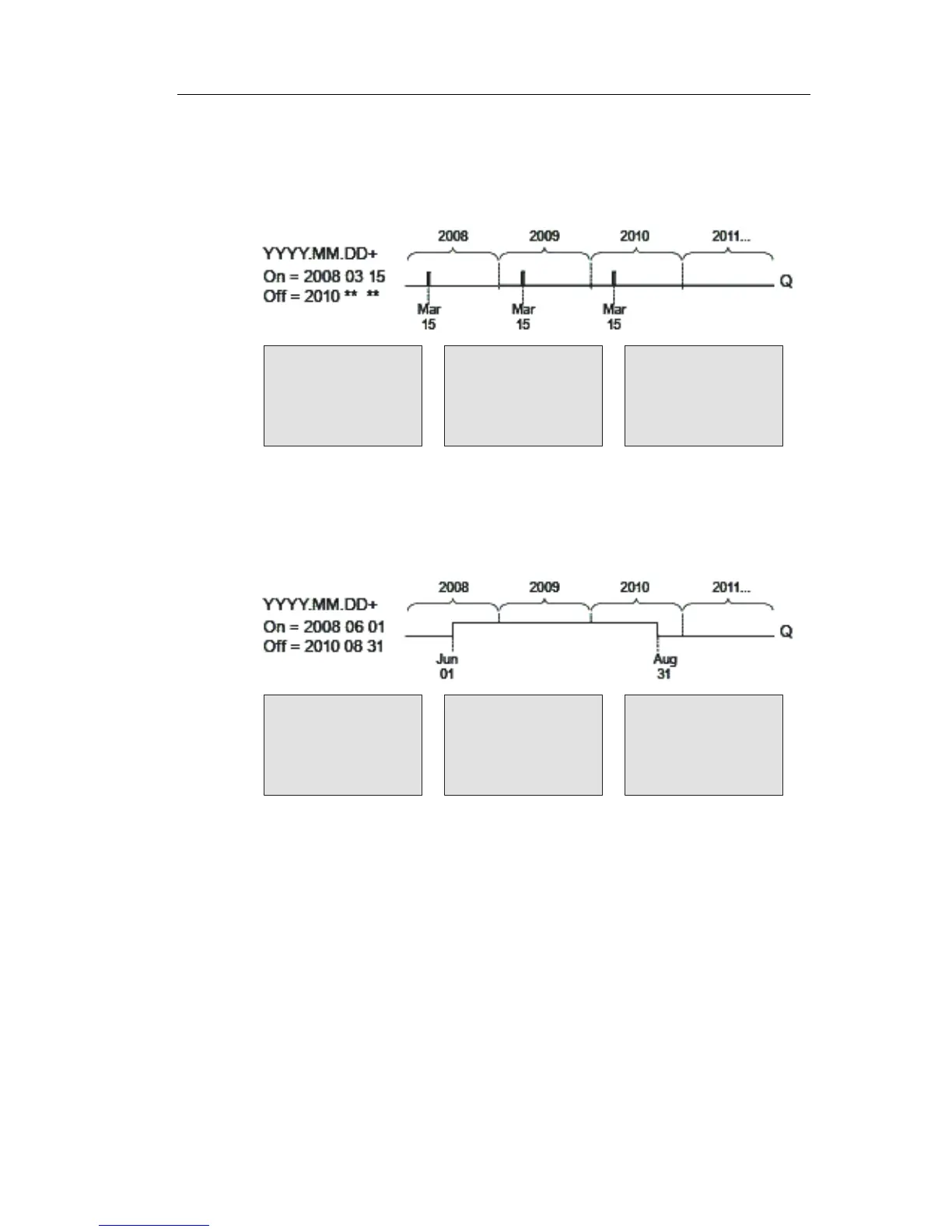

Example 4: Yearly mode on, Monthly mode off, Pulse on,
On Time = 2008
–03–15, Off Time = 2010–**–**: On March 15
of 2008, 2009, and 2010, the timer output switches on for
one cycle.
B6 2+
ON :
YYYY–MM–DD
2008–03–15
B6 1+
Yearly = On
Monthly=Off
Pulse = On
B6 3+
OFF :
YYYY–MM–DD
2010–**–**
Example 5: Yearly mode off, Monthly mode off, Pulse off,
On Time = 2008
–06–01, Off Time = 2008–08–31: On June 1,
2008 the timer output switches on and remains on until
August 31, 2010.
B6 2+
ON :
YYYY–MM–DD
2008–06–01
B6 1+
Yearly =Off
Monthly=Off
Pulse =Off
B6 3+
OFF :
YYYY–MM–DD
2010–08–31
