IDEC SmartRelay functions
158 IDEC SmartRelay Manual

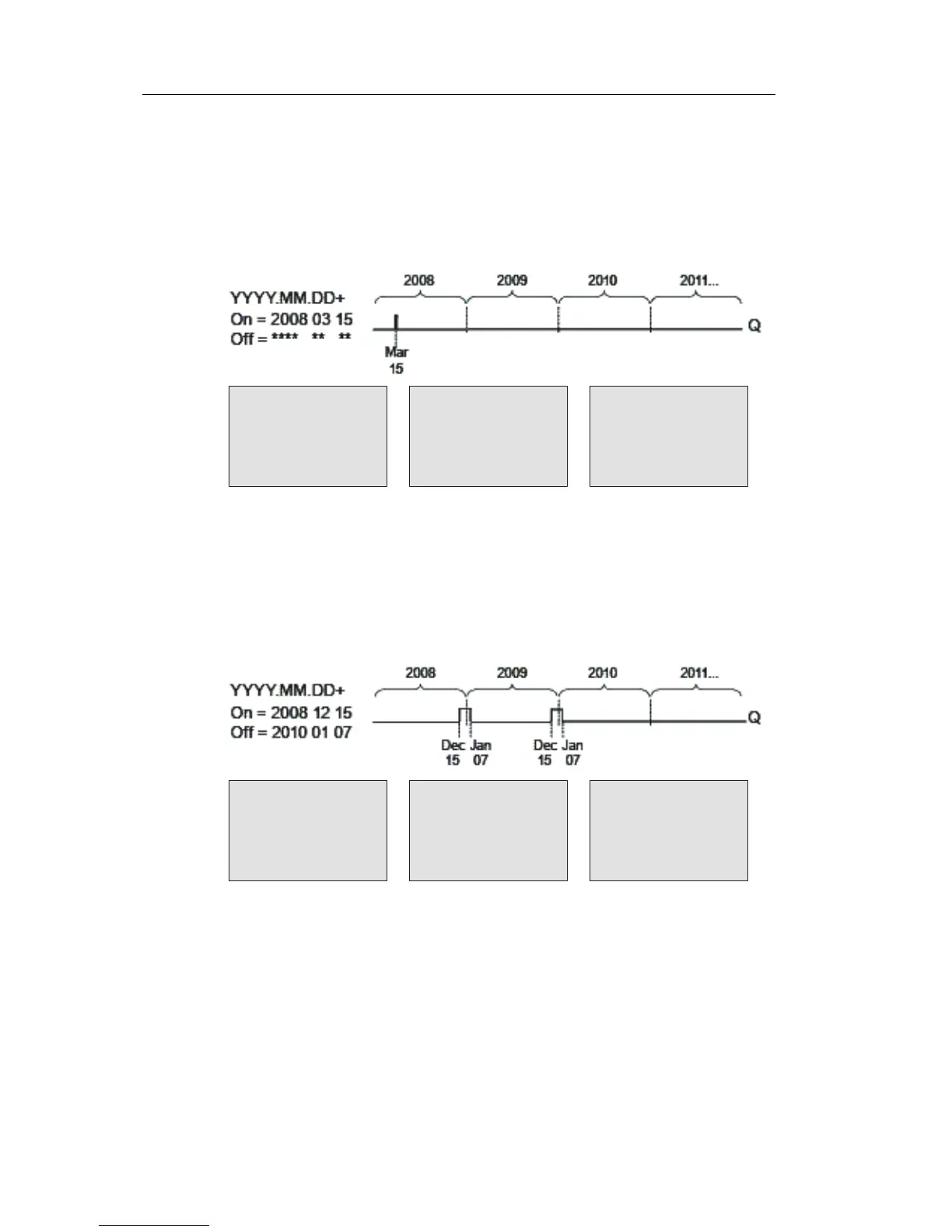

Example 6: Yearly mode off, Monthly mode off, Pulse
selected, On Time = 2008
–03–15, Off Time = ****–**–**: On
March 15, 2008 the timer output switches on for one cycle.
Because the timer does not have a monthly action or yearly
action, the timer output pulses only one time at the specified
On Time.
B6 2+
ON :
YYYY–MM–DD
2008–03–15
B6 1+
Yearly =Off
Monthly=Off
Pulse =On
B6 3+
OFF :
YYYY–MM–DD
****–**–**
Example 7: Yearly mode on, Monthly mode off, Pulse off,
On Time = 2008
–12–15, Off Time = 2010–01–07: On
December 15 of 2008 and 2009, the timer output switches on
and remains on until January 7 of the following year. When
the timer output turns off on January 7, 2010 it does NOT
turn on again the following December 15.
B6 2+
ON :
YYYY–MM–DD
2008–12–15
B6 1+
Yearly = On
Monthly=Off
Pulse =Off
B6 3+
OFF :
YYYY–MM–DD
2010–01–07
