IDEC SmartRelay functions
160 IDEC SmartRelay Manual
Backup of the real-time clock
The internal real-time clock of IDEC SmartRelay is buffered
against power failure. The buffering time is influenced by the
ambient temperature, and is typically 80 hours at an ambient
temperature of 25°C. If you are using the optional IDEC
SmartRelay Battery cartridge, or combined IDEC
SmartRelay Memory/Battery cartridge, IDEC SmartRelay
can retain the clock time for up to two years. To backup the
real time clock for more than 80 hours, insert a battery
cartridge or a combined memory/battery cartridge to the
base module.

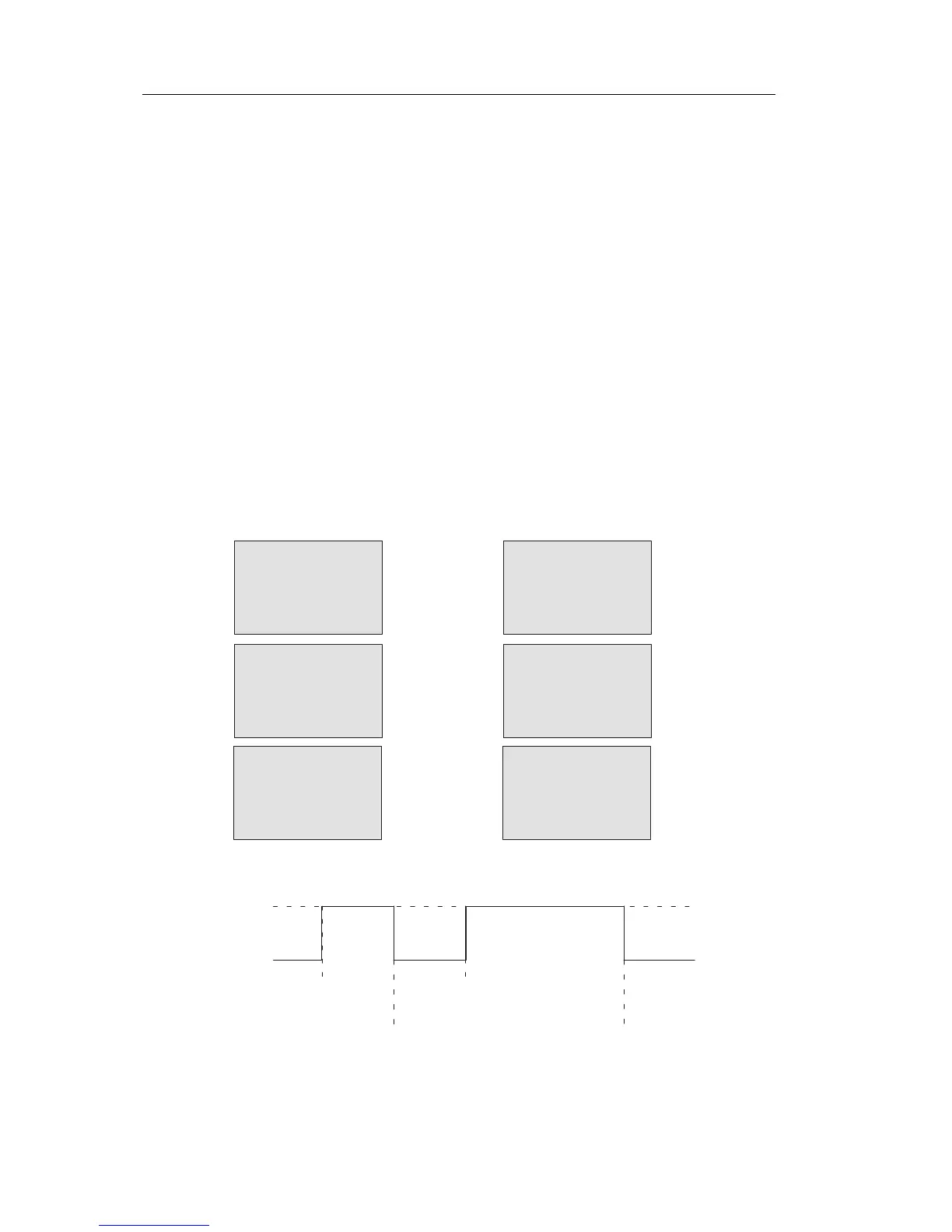

Sample configuration
The output of an IDEC SmartRela
y is to
be set annually on
March 1, reset on April 4, set again on July 7, and reset again
on November 19. You need to configure two twelve-month
time switches with corresponding on-times. Then logically
link the outputs by means of an OR block.
B1 2+
ON :
YYYY–MM–DD
2000–03–01
B1 1+
Yearly = On
Monthly=Off
Pulse =Off
B1 3+
OFF :
YYYY–MM–DD
2099–04–04
B2 2+
ON :
YYYY–MM–DD
2000–07–07
B2 1+
Yearly = On
Monthly=Off
Pulse =Off
B2 3+
OFF :
YYYY–MM–DD
2099–11–19
Twelve-month
time switch 1
On-time Mar 1
Off-time Apr 4
Twelve-month
time switch 2
On-time Jul 7
Off-time Nov 19
On
Off
B1
B2
March 1
at 00:00 h
April 4
at 00:00 h
July 7
at 00:00 h
November 19
at 00:00 h
Result
