Parameter MI
The maintenance interval MI can be provided by the actual
value of another already-programmed function. You can use
the actual values of the following functions:
• Analog comparator (actual value Ax - Ay, see Chapter
4.4.18)
• Analog trigger (actual value Ax, see Chapter 4.4.16)
• Analog amplifier (actual value Ax, see Chapter 4.4.20)
• Analog multiplexer (actual value AQ, see Chapter 4.4.26)
• Analog ramp control (actual value AQ, see Chapter
4.4.27)
• Analog math (actual value AQ, see Chapter 4.4.30)
• PI controller (actual value AQ, see Chapter 4.4.28)
• Up/down counter (actual value Cnt, see Chapter 4.4.13)
Select the required function by the block number.
Par:
Q
R
Ral
En
MN=MI
OT
MN=0
MI=5h
MI = Configured time interval
MN = Time-to-go
OT = Total time expired since the last hi signal at input Ral

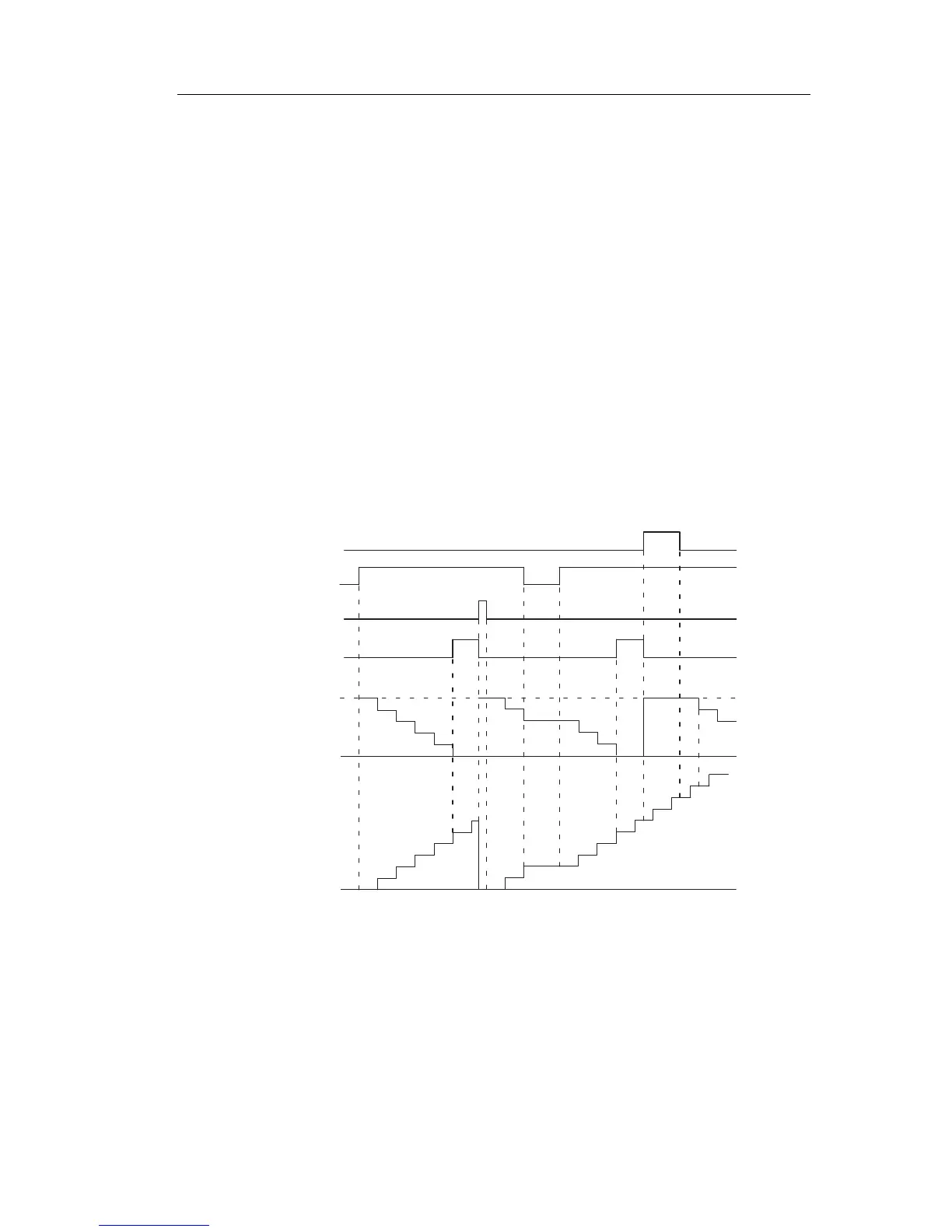

Timing diagram
