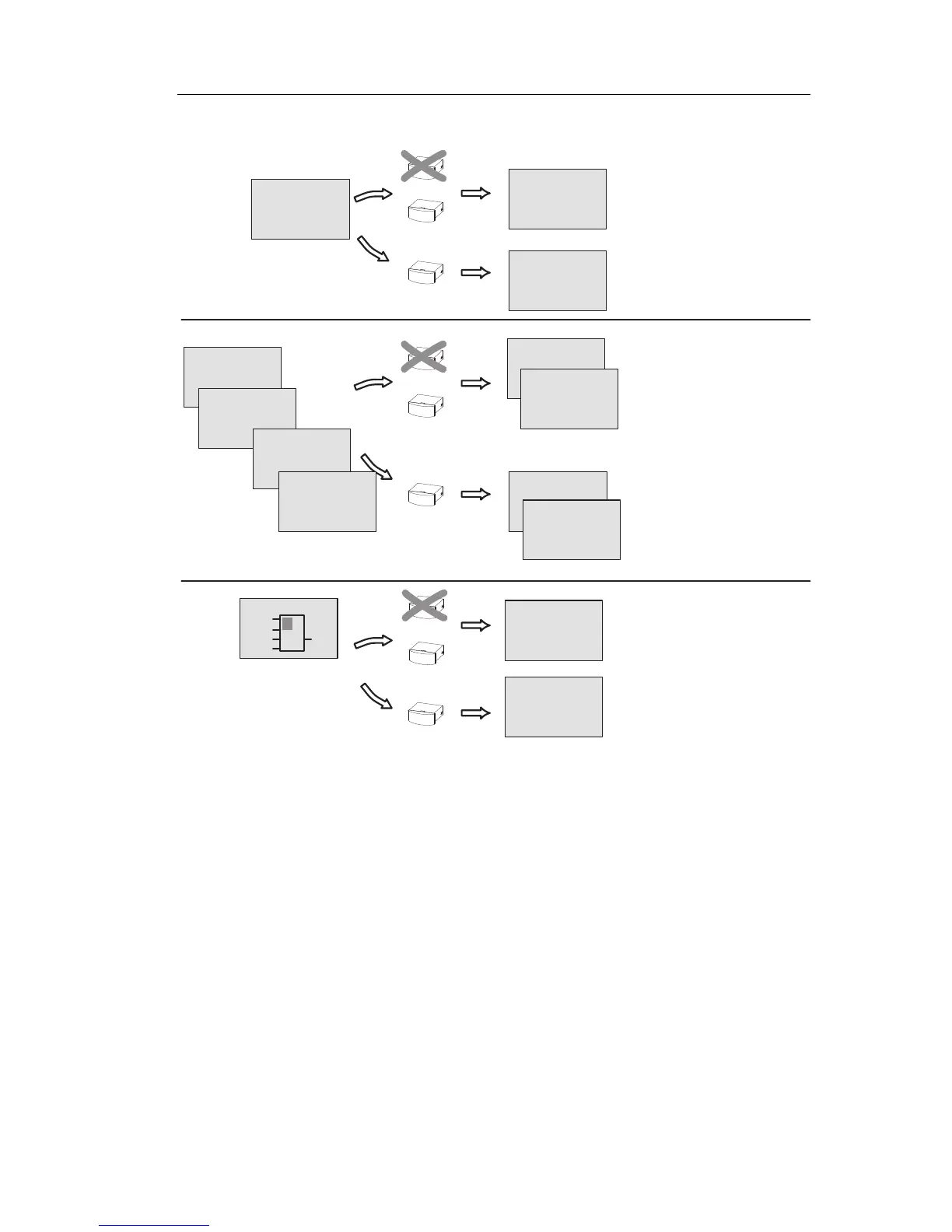

Before power off After power on
No program in
memory
or
(empty)
(with program)
IDEC SmartRelay
in RUN mode
or
(empty)
(with program)
with stored program from
IDEC SmartRelay
with a program copied from
the memory cartridge or
combined memory/battery
cartridge in IDEC
SmartRelay
IDEC SmartRelay in
RUN mode
or
(empty)
(with program)
Program in
memory
with stored program from
IDEC SmartRelay
with program copied from
the memory cartridge or
combined memory/battery
cartridge in IDEC
SmartRelay
IDEC SmartRelay installation and wiring
IDEC SmartRelay Manual 53
You can also memorize four simple rules for starting IDEC
SmartRelay :
1. If neither IDEC SmartRelay nor the inserted memory
cartridge
or combined memory/battery cartridge contains
a circuit program, IDEC SmartRelay (with display unit)
reports: ’No Program / Press ESC’.
2. A circuit program on the memory cartridge or combined
memory/bat
tery cartridge is automatically copied to IDEC
SmartRelay. The circuit program in IDEC SmartRelay is
overwritten.
3. If there is a circuit program in IDEC SmartRelay or on the
memory cart
ridge or combined memory/battery cartridge,
IDEC SmartRelay adopts the operational state it had prior
to POWER-OFF. Versions without display unit (FL1E-
B12...) automatically change from STOP to RUN (LED
changes from red to green).
