Power Supply Specification Guidelines Intel® Server Board S2600CW Family TPS
122 Revision 2.4
10. Power Supply Specification Guidelines
10.1 Power System Options Overview
The Intel
®
Server Board S2600CW can work with 550-W fixed power supply, or
750-W/1600-W redundant power supplies shipped with the Intel
®
Server Chassis.
This section provides power supply specification guidelines recommended for providing the
specified server platform with stable operating power requirements.
Note: The power supply data provided in this section is for reference purposes only. It reflects
Intel’s own DC power out requirements from a 750W power supply and the Power Distribution
Board as an option used in an Intel
®
Server Chassis. The intent of this section is to provide
customers with a guide to assist in defining and/or selecting a power supply for custom server
platform designs that utilize the server board detailed in this document.
10.2 750-W Power Supply
This specification defines a 750W redundant power supply that supports server systems. This
power supply has 2 outputs; 12V and 12V standby. The AC input is auto ranging and power
factor corrected.
10.2.1 Mechanical Overview
The physical size of the power supply enclosure is 39/40mm x 74mm x 185mm. The power
supply contains a single 40mm fan. The power supply has a card edge output that interfaces
with a 2x25 card edge connector in the system. The AC plugs directly into the external face of
the power supply. Refer to the following figure. All dimensions are nominal.

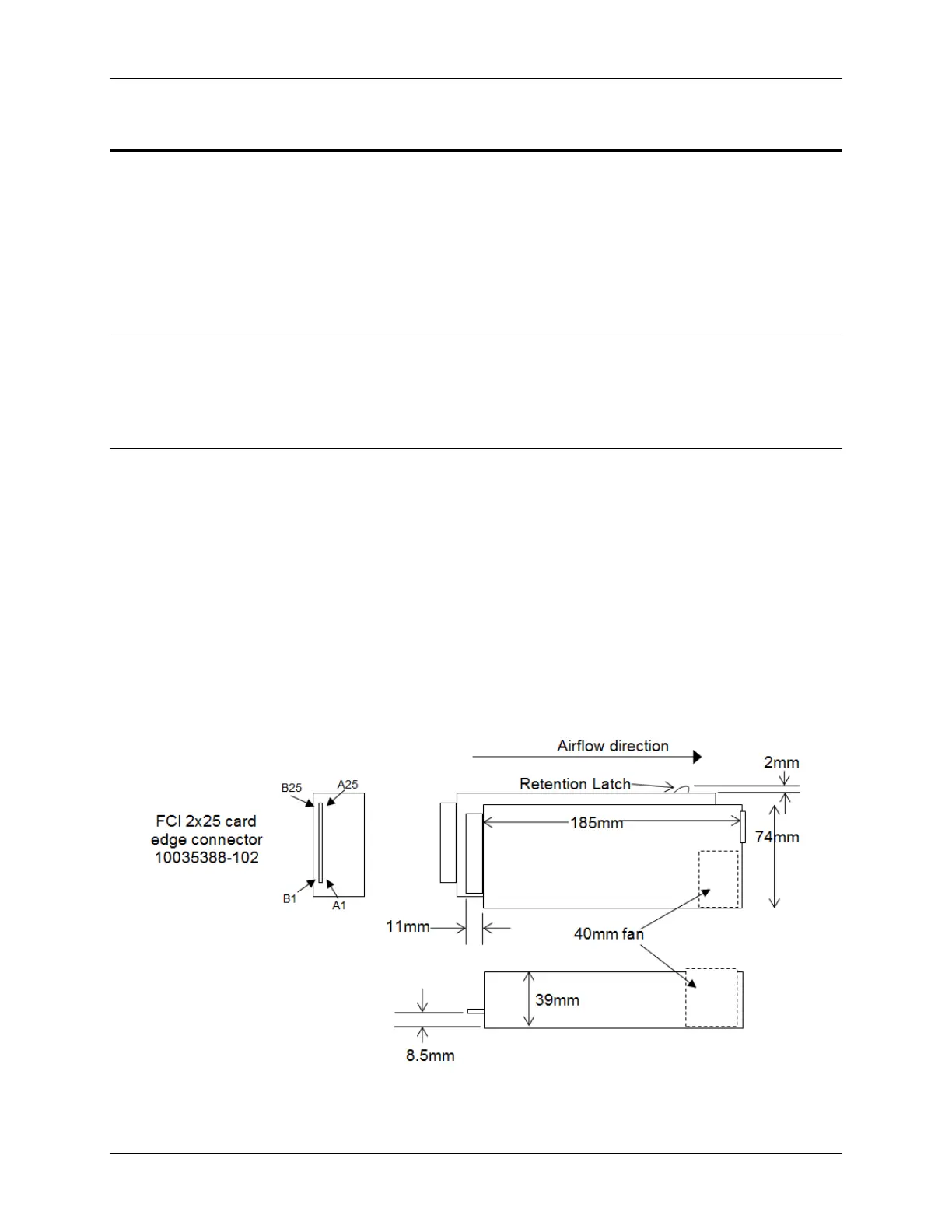

Figure 26. 750-W Power Supply Outline Drawing
