Intel® Server Board S2600CW Family TPS Intel® Server Board S2600CW Overview
Revision 2.4
7
2.2.1 Server Board Connector and Component Layout
The following figure shows the layout of the server board and the location of each connector
and major component except jumpers. The locations of jumpers can be found in Chapter 8.

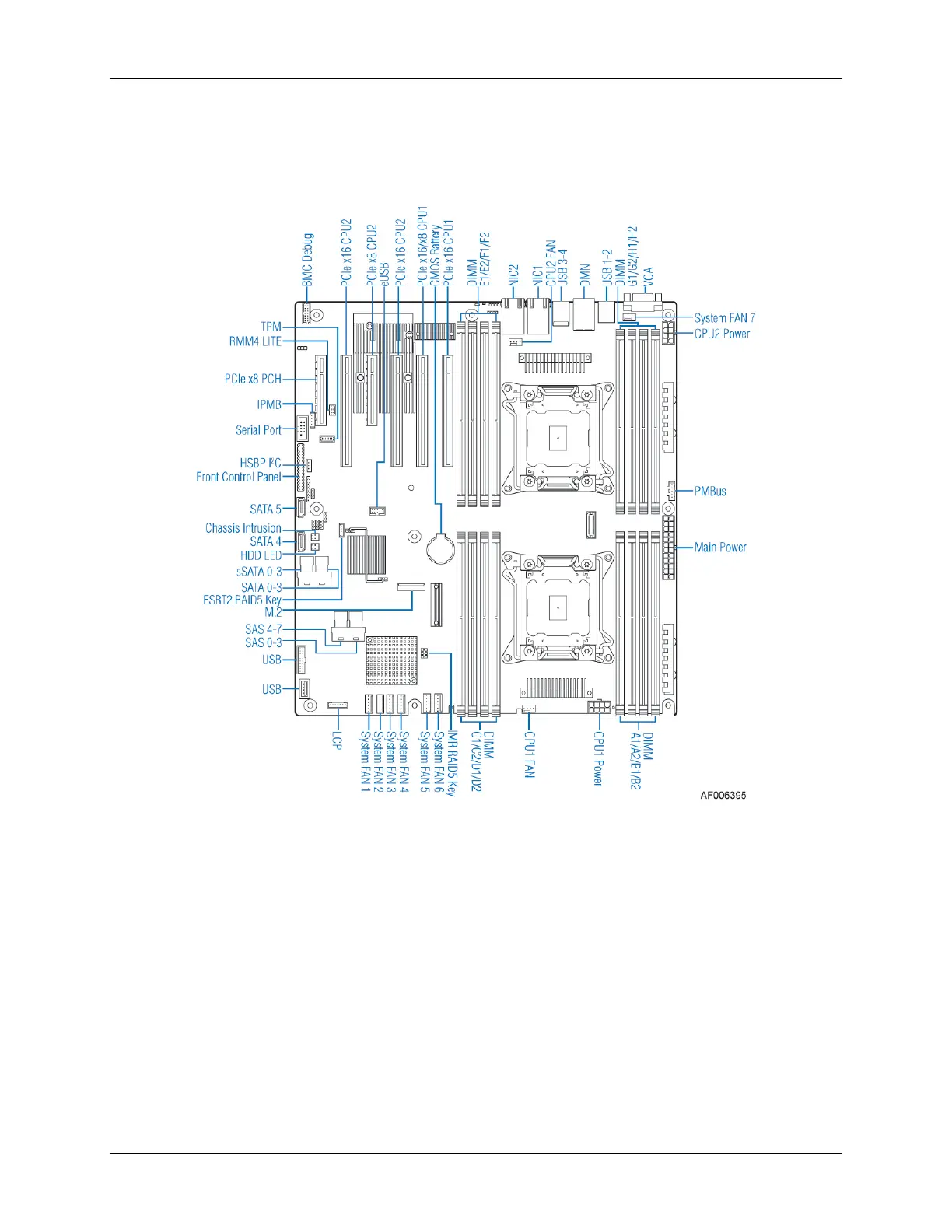

Figure 3. Connector and Component Layout
