Intel® Server Board S2600CW Family TPS Intel® Server Board S2600CW Functional Architecture
Revision 2.4
15
3. Intel® Server Board S2600CW Functional
Architecture
The architecture and design of the Intel® Server Board S2600CW is based on the Intel® Xeon®
E5-2600 v3 and v4 processors and the Intel® C612 chipset. This chapter provides a high-level
description of the functionality associated with each chipset component and the architectural
blocks that make up the server boards.

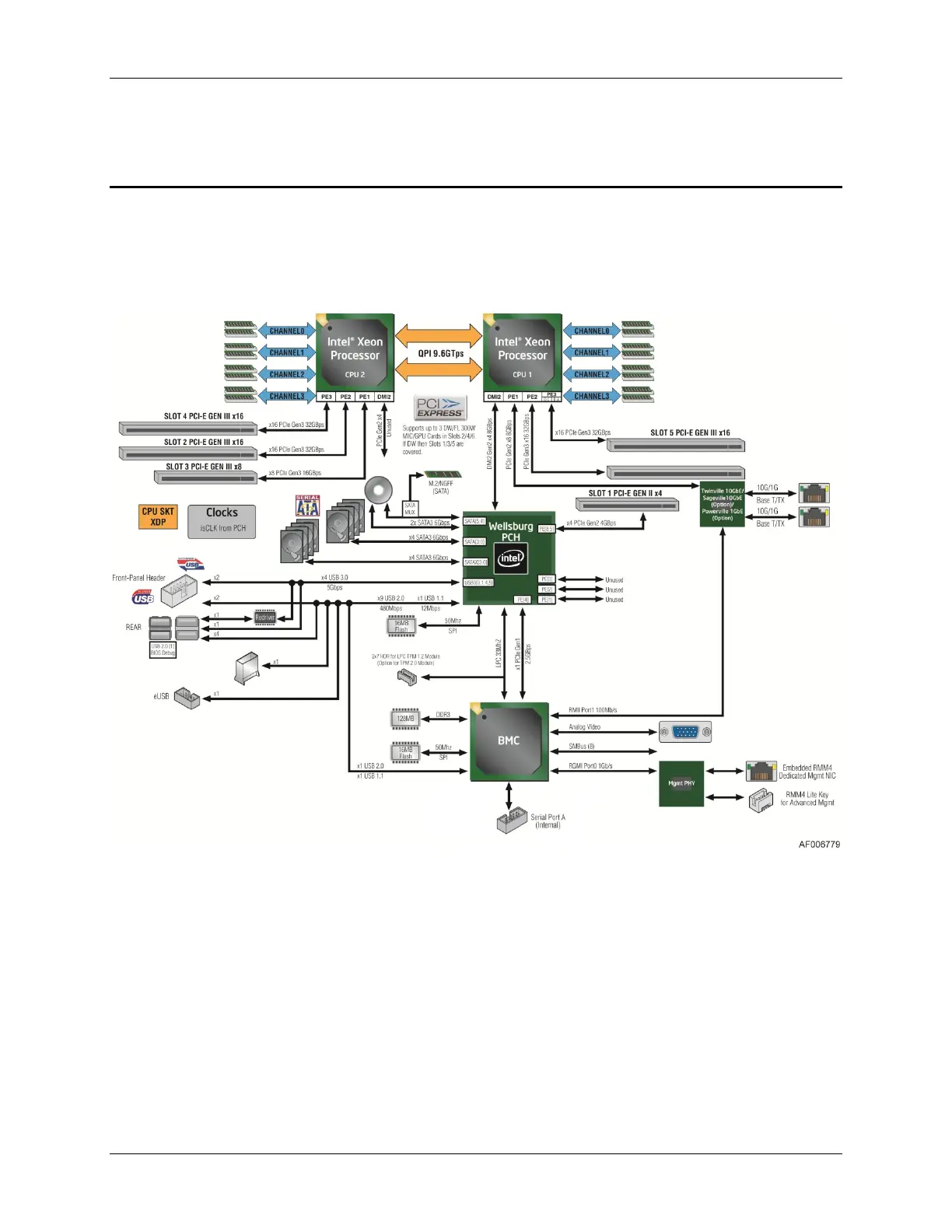

Figure 11. Intel® Server Board S2600CW2R/S2600CWTR Functional Block Diagram

Intel S2600CW Specifications
