Intel S2600CW - USB Support

Intel® Server Board S2600CW Family TPS Intel® Server Board S2600CW Functional Architecture
Revision 2.4
45
3.4.11 USB Support
The Intel® C612 Series chipset has up to two Enhanced Host Controller Interface (EHCI) host
controllers that support USB high-speed signaling. The Intel® C612 Series chipset supports up
to 14 USB 2.0 ports of which up to six can be used as USB3.0 ports.
3.4.11.1 USB connectors
The server board provides the following USB ports:
 Two USB 2.0 ports on the board rear end, next to the VGA connector.
 Two USB 3.0 ports on the board rear end, next to the NIC1 connector.
 One 2x10-pin USB 3.0 header on the board, providing USB connectivity to the front
panel.
 One Type-A USB header on the board.
3.4.11.2 eUSB Module
Smart Modular Z-U130 Value Solid State Drive (SSD) is an embedded USB2.0 (eUSB2.0)
storage solution built around high performance Intel® NAND flash memory. This module uses
single-level cell Intel® NAND flash memory with cache programming and dual plane feature
set designed to improve overall module performance. The Intel® Z-U130 Value SSD supports
the Universal Serial Bus (USB) specification v2.0 and is backward compatible with v1.1. The
module uses industry standard connectors which are available in two sizes. This device can be
used with operating systems compatible with the USB Mass Storage Class specification v1.0.

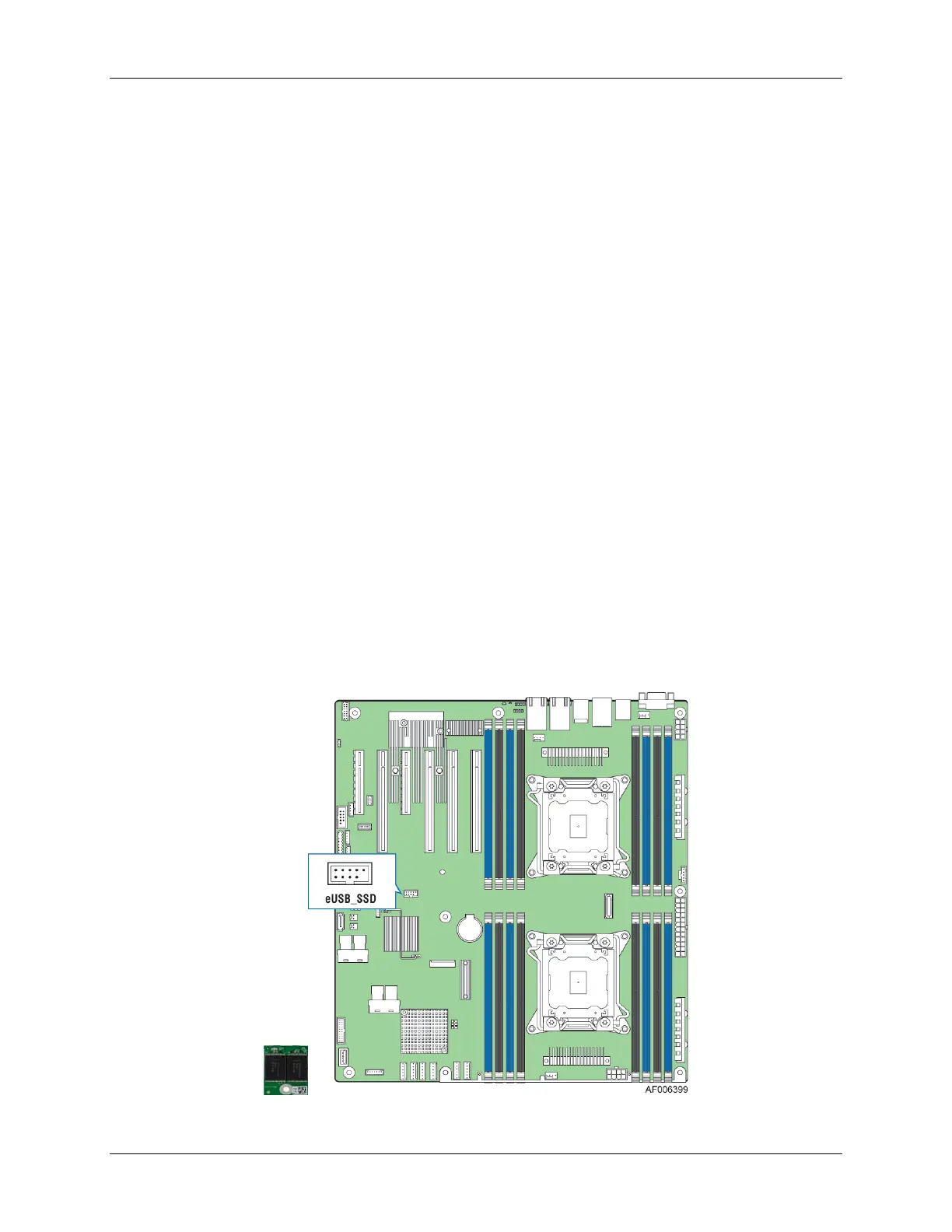

The following diagram identifies the location of the eUSB connector on the board.
