Intel S2600CW - Figure 15. Intel Server Board S2600 CW DIMM Slot Layout

Intel® Server Board S2600CW Family TPS Intel® Server Board S2600CW Functional Architecture
Revision 2.4
27
when populating a quad-rank DIMM with a single- or dual-rank DIMM in the same channel, the
quad rank DIMM must be populated farthest from the processor. Note that quad-rank DIMMs
and UDIMMs are not allowed in three slots populated configurations. Intel
®
MRC will check for
correct DIMM placement.
The nomenclature for DIMM sockets on the Intel
®
Server Board S2600CW is detailed in the
following table.
Table 5. Intel
®
Server Board S2600CW DIMM Nomenclature
Processor Socket 1
Processor Socket 2
(0)
Channel A
(1)
Channel B
(2)
Channel C
(3)
Channel D
(0)
Channel A
(1)
Channel B
(2)
Channel C
(3)
Channel D
A1
A2
B1
B2
C1
C2
D1
D2
E1
E2
F1
F2
G1
G2
H1
H2

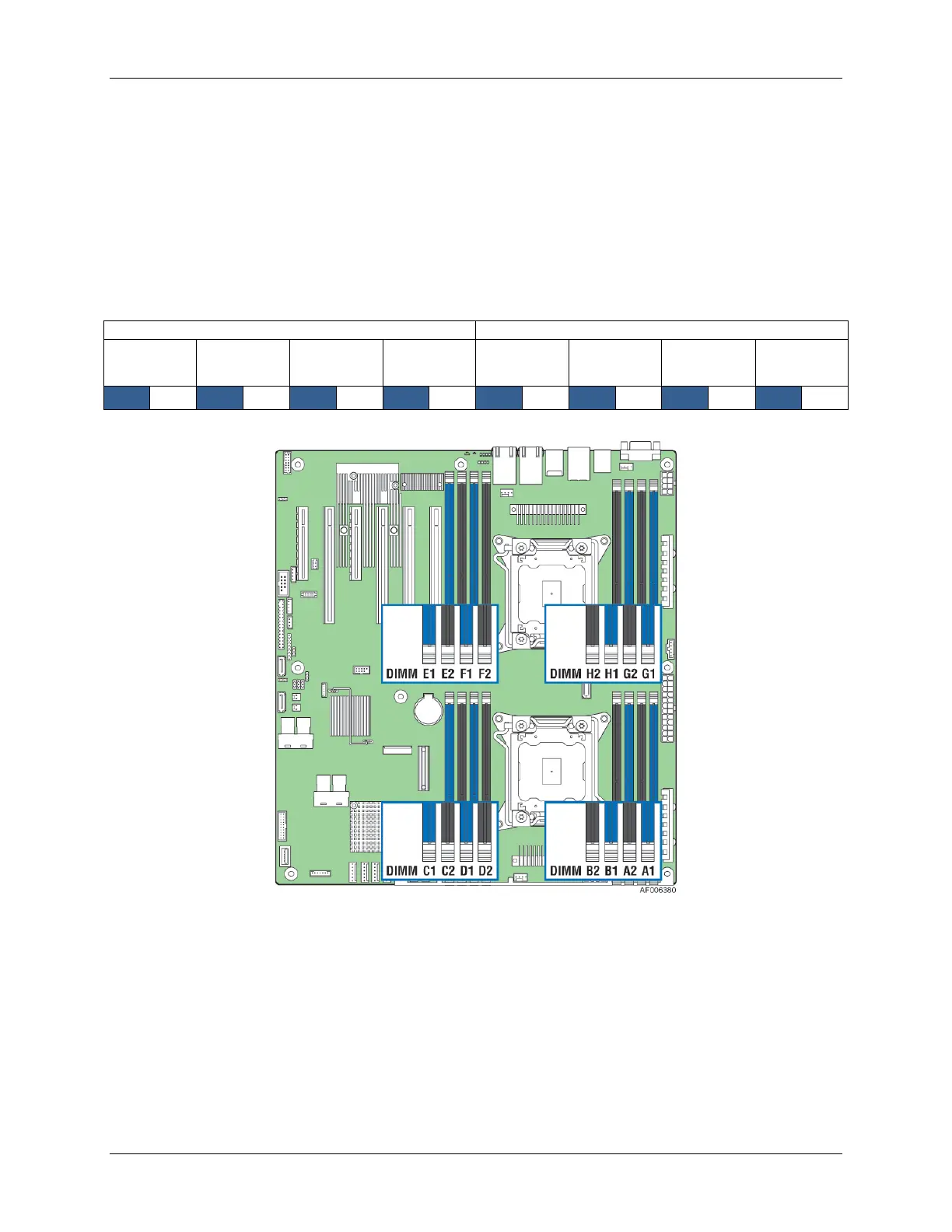

Figure 15. Intel
®
Server Board S2600CW DIMM Slot Layout
The following are generic DIMM population requirements that generally apply to the Intel
®
Server Board S2600CW.
 All DIMMs must be DDR4 DIMMs.
 Mixing of LRDIMM with any other DIMM type is not allowed per platform.
