Intel® Server Board S2600CW Functional Architecture Intel® Server Board S2600CW Family TPS
38 Revision 2.4
Intel® Server Chassis P4304XXMFEN2/P4304XXMUXX support up to airflow 200LFM/55°C.
Some PCIe SSD devices may require airflow 300LFM (or above), performance mode in BIOS
setup menu will need to be enabled.
When add-in card form factor PCIe SSD device requiring 300LFM (or above) used in Intel®
Server Chassis P4304XXMUXX, the device, the card should be installed on PCIe slot 3/4/5/6, in
addition to enabling the performance mode in BIOS setup menu.
Please also see the note in Section “HTA support for Intel® Server Chassis P4304XXMFEN2 /
P4304XXMUXX with Intel® Server Board S2600CW” in Intel® Server Chassis P4304XXMFEN2 /
P4304XXMUXX TPS.
3.4.5 Serial ATA (SATA) Support
The Intel® C612 Series chipset provides the server board with support for up to ten Serial ATA
(SATA) ports from two integrated controllers identified as SATA and sSATA.
The Intel® Server Board S2600CW family on-board SATA connectors include:
Two 7-pin single-port SATA connectors labeled “SATA-4” and “SATA-5”; each port is
capable of supporting up to 6 Gbps. These connectors are intended for use with optical
drives or SATADOM devices.
Two 4-port mini-SAS HD connectors labeled “SATA_0-3” and “sSATA_0-3”. All eight
ports are capable of supporting up to 6 Gbps.

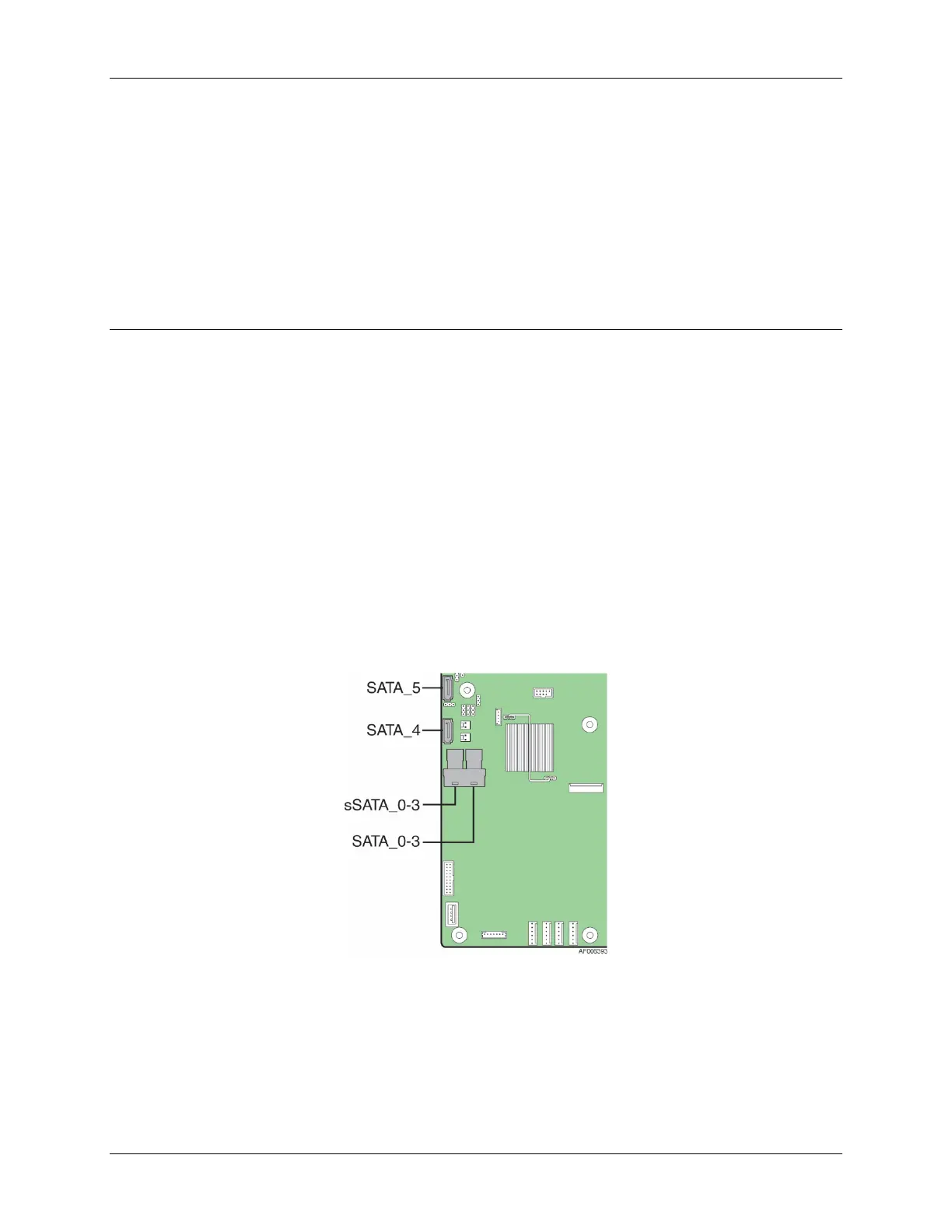

The following diagram identifies the location of all on-board SATA features.
3.4.6 SATADOM Support
SATADOM devices can be used on the 7-pin SATA connectors (SATA-4 and SATA-5). There
are configuration limitations when using SATADOM due to SATADOM clearance. Two slim
type SATADOMs can be used at a time, or one slim type SATADOM on SATA-4 connector and
one low profile SATADOM on SATA-5 connector.
