Intel S2600CW - Integrated Megaraid Support

Intel® Server Board S2600CW Functional Architecture Intel® Server Board S2600CW Family TPS
44 Revision 2.4
3.4.10 Integrated MegaRAID Support
Integrated MegaRaid RAID (IMR) (RAID 0/1/10) support is included with based LSISAS3008
functionality. Integrated MegaRaid (IMR) (RAID 5) upgrade is supported through installation of
an activation key.

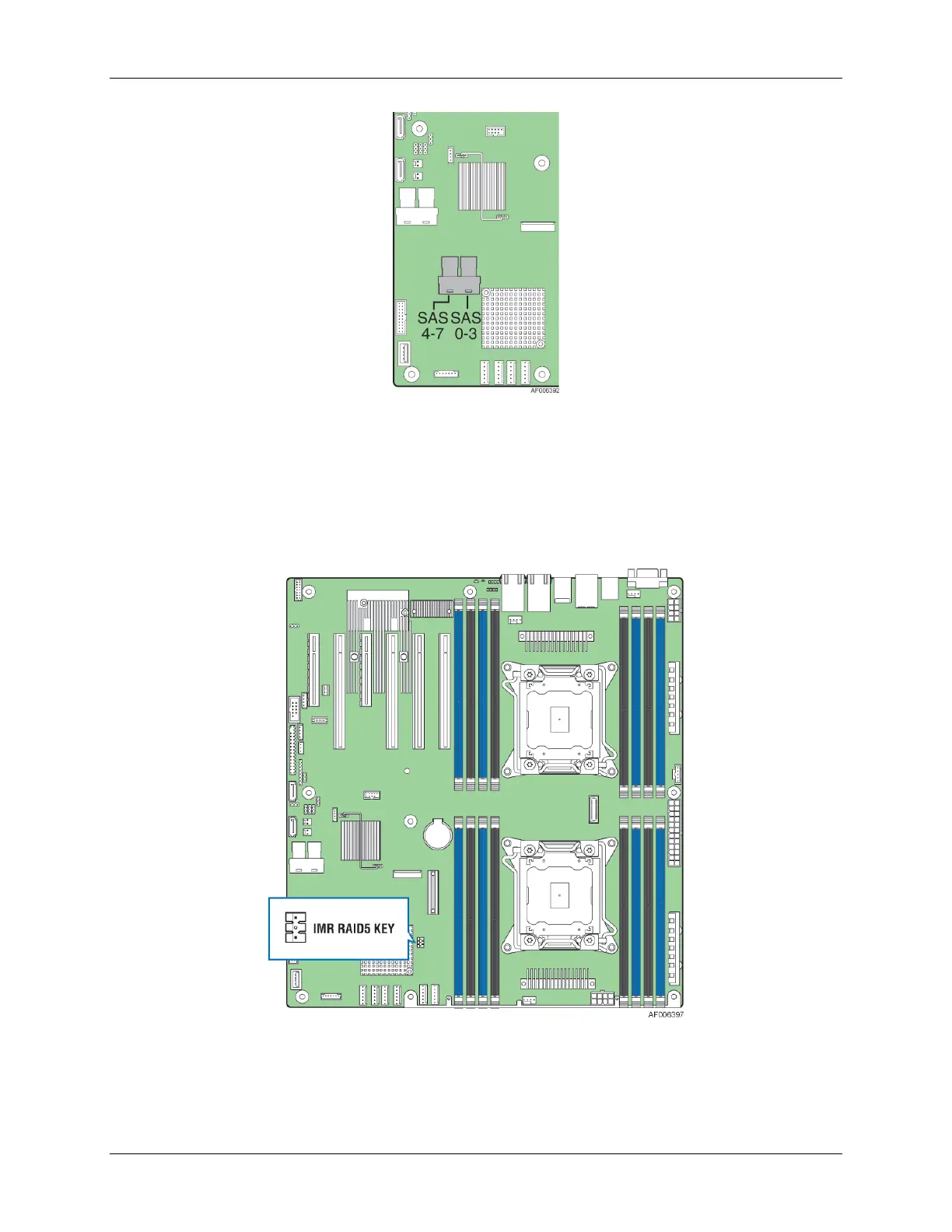

The following diagram identifies the location of the activation key for the IMR RAID 5.
