Intel® Server Board S2600CW Functional Architecture Intel® Server Board S2600CW Family TPS
52 Revision 2.4

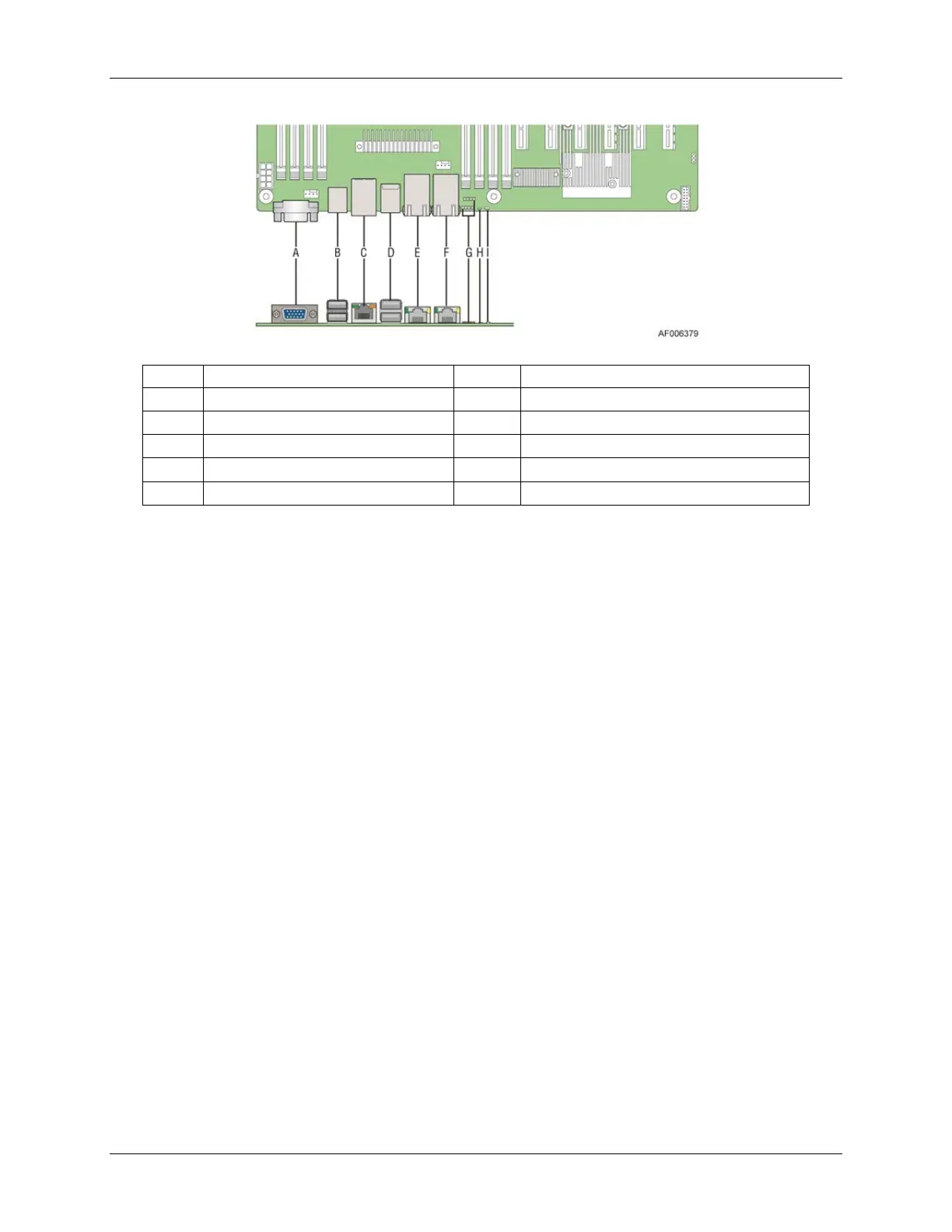

Callout
Description
Callout
Description
A
Video
B
USB 2.0
C
Dedicated Management NIC (DMN)
D
USB 3.0
E
NIC1
F
NIC2
G
System Diagnostic LED
H
ID LED
I
System Status LED
The server board S2600CW2R/S2600CW2SR (I350) has the following MAC addresses
assigned:
 NIC 1 MAC address
 NIC 2 MAC address – Assigned the NIC 1 MAC address +1
 Integrated BMC LAN Channel MAC0 address – Assigned the NIC 1 MAC address +2
 Integrated BMC LAN Channel MAC1 address – Assigned the NIC 1 MAC address +3
 Intel® Remote Management Module (Intel® RMM) MAC address – Assigned the NIC 1
MAC address +4
The server board S2600CWTR/S2600CWTSR (X540) has the following MAC addresses
assigned:
 NIC 1 MAC address
 NIC 2 MAC address – Assigned the NIC 1 MAC address +1
 Integrated BMC LAN Channel MAC0 address – Assigned the NIC 1 MAC address +2
 Integrated BMC LAN Channel MAC1 address – Assigned the NIC 1 MAC address +3
 Intel® Remote Management Module (Intel® RMM) MAC address – Assigned the NIC 1
MAC address +4
 NIC 1 SAN MAC address - Assigned the NIC 1 MAC address +5
 NIC 2 SAN MAC address - Assigned the NIC 1 MAC address +6
