1 Product Features
This chapter briefly describes the main features of the Intel® Server Board S7200AP/APR and the Intel®
Compute Module HNS7200AP/APR. This includes illustrations of the products, a list of features, and
diagrams showing the location of important components and connections. The two main boards are
described in this document to include support for several chassis. The document includes updates for Intel®
Server Board S7200APR refresh product that is supported in the Intel® Server Chassis H2204XXLRE.

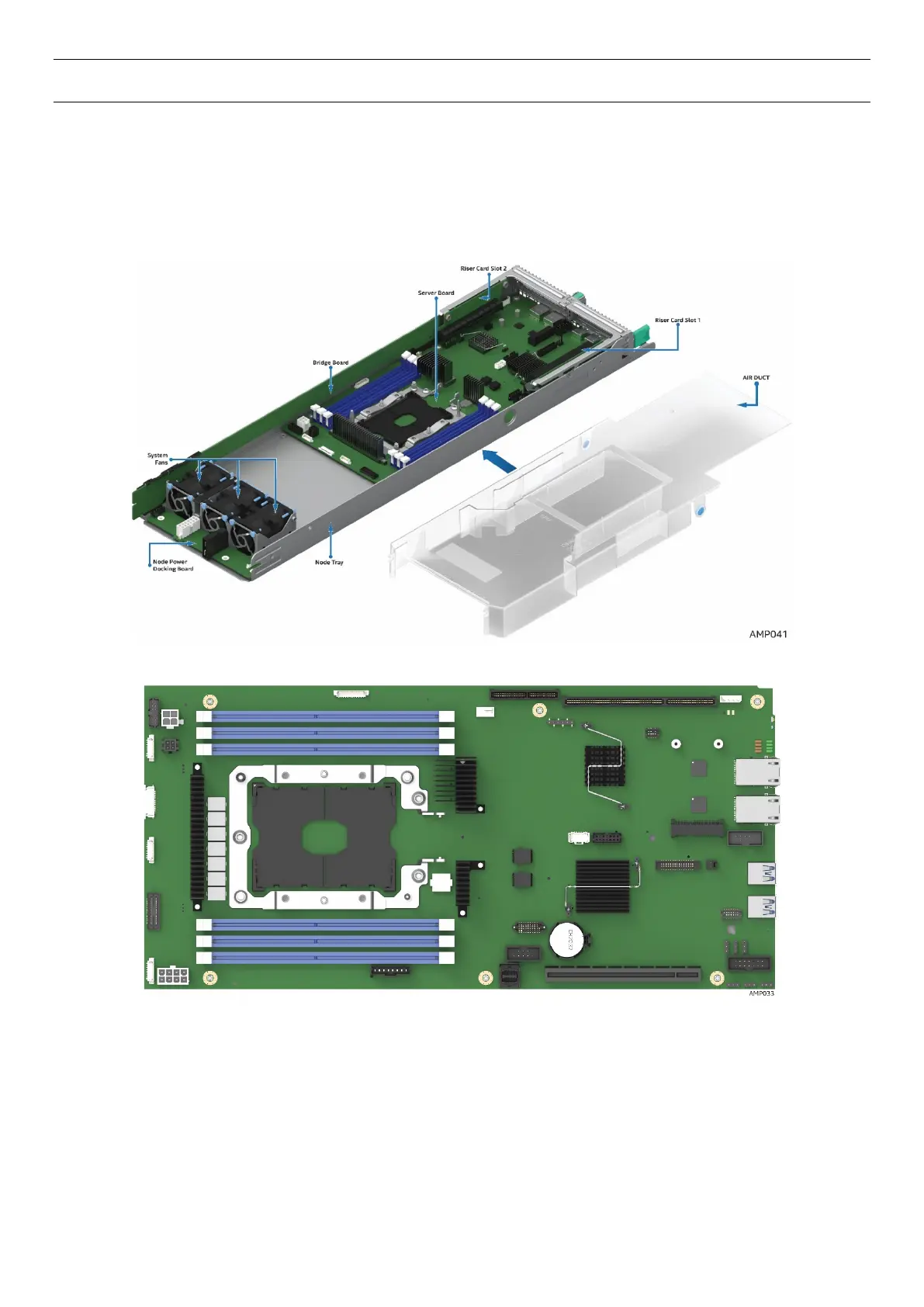

Figure 1. Intel® Compute Module HNS7200AP Product Family
Figure 2. Intel® Server Board S7200AP Product Family
