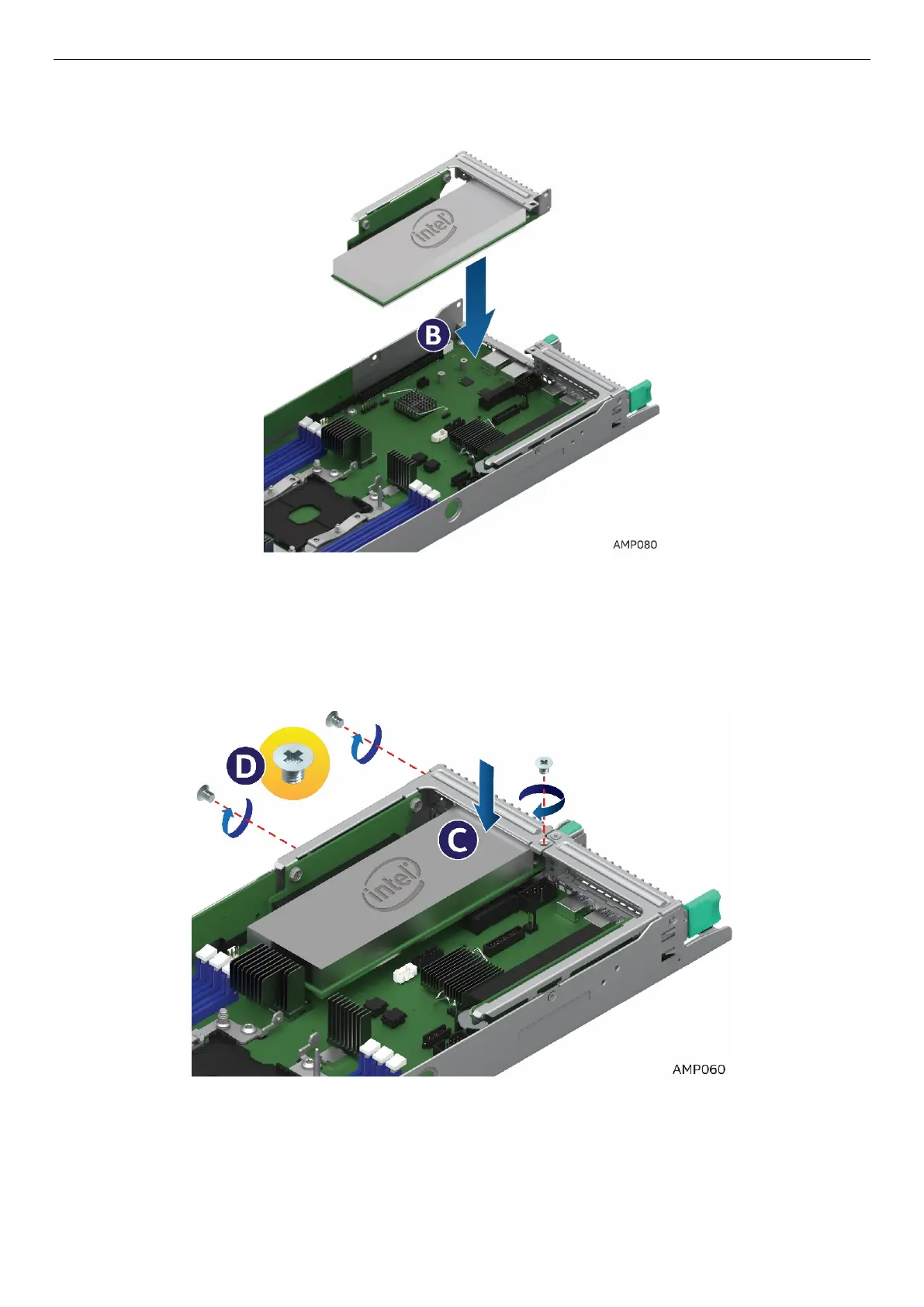

Figure 60. Installing the PCIe* Add-In Card– Step 1
6. Align and insert the PCIe riser assembly into the Riser Slot 1 on the server board (See letter B).
Figure 61. Installing the PCIe* Add-In Card– Step 2
7. Ensure that the Add-In Card and Riser are fully seated (See letter C).
8. Tighten the three screws (See letter D).
Figure 62. Installing the PCIe* Add-In Card– Step 3
