1.5 Server Board Features
This section helps you identify the components and connectors on the server board. Intel® Server Board
S7200AP features shown. All major features that are called out are common to both boards.

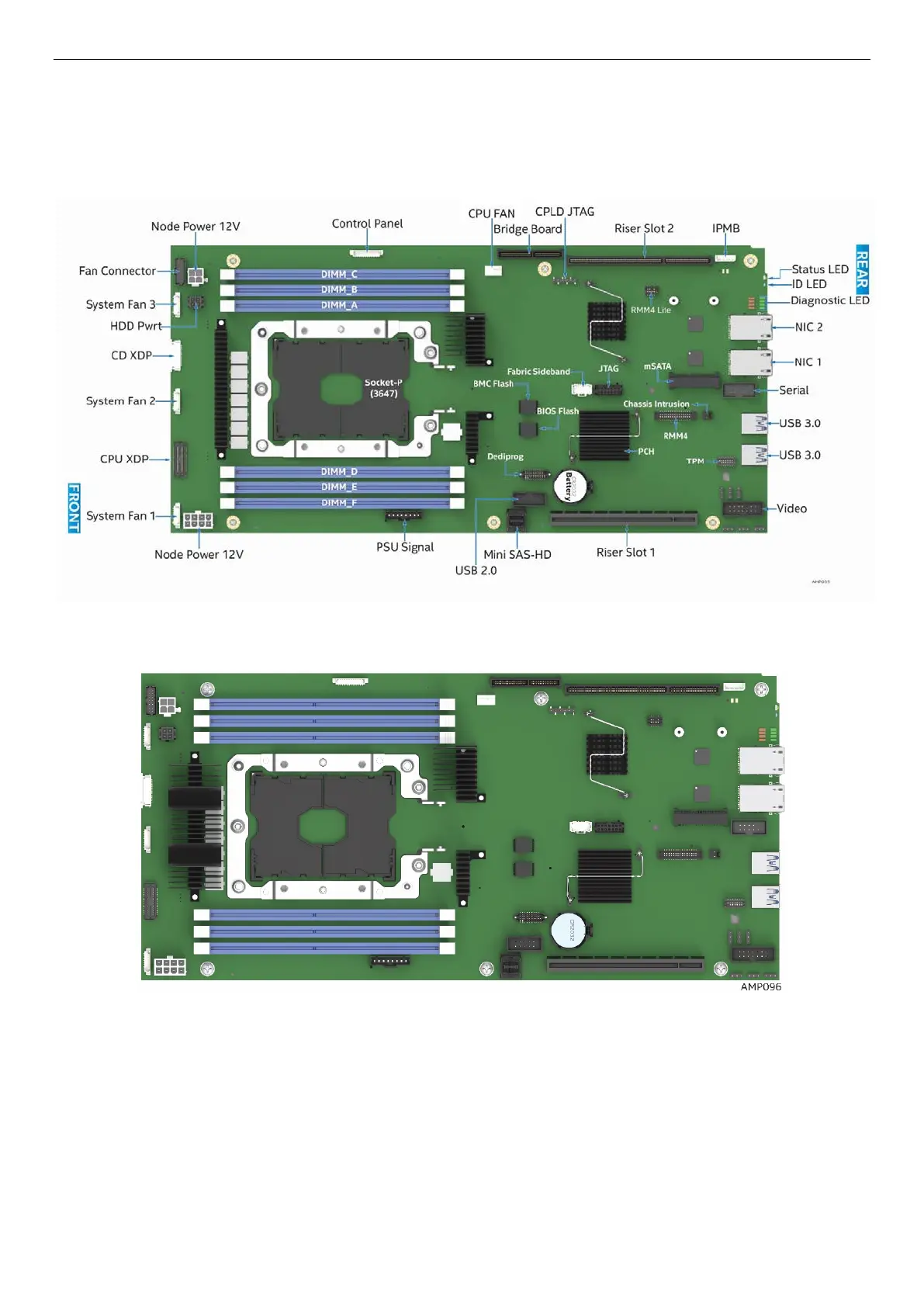

Figure 7. Intel® Server Board S7200AP Features
Figure 8. Intel® Server Board S7200APR
