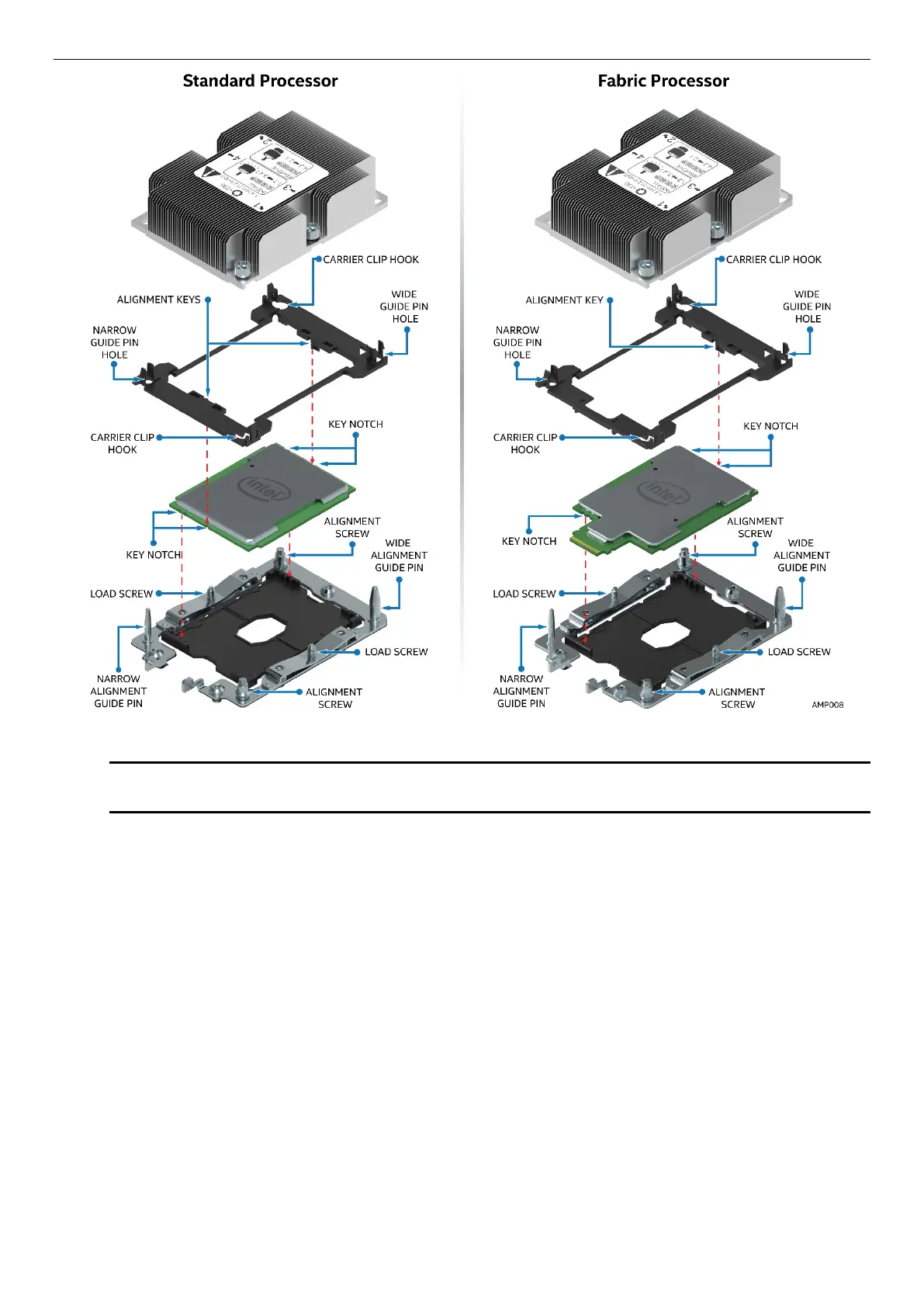

Figure 18. Alignment Features
CAUTION: Handle the processor carefully. Do not touch the bottom-side contacts or components,
always grip the processor by its edges.
