Intel S7200AP - Figure 21. Orienting Processor Carrier Clip Sub-Assembly to Heat Sink; Figure 22. Processor Heat Sink Module (PHM)

6. Orient the processor carrier clip sub-assembly over the processor heat sink so that all corner features
are in alignment.

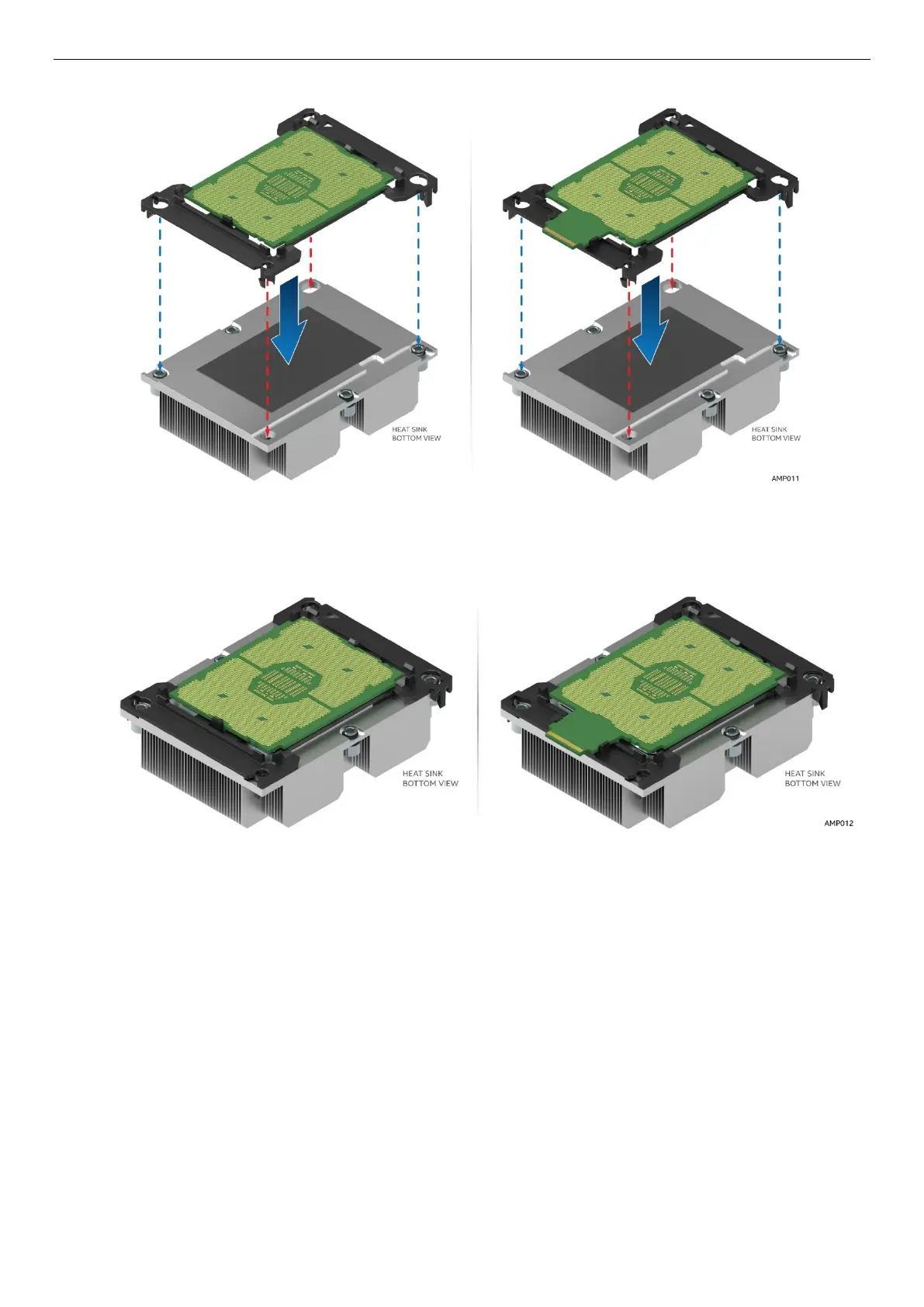

Figure 21. Orienting Processor Carrier Clip Sub-assembly to Heat Sink
7. Push the processor carrier clip sub-assembly down on to the processor heat sink until it snaps into
place, ensuring all four corners are secure.
Figure 22. Processor Heat Sink Module (PHM)
