Intel S7200AP - Figure 50. Installing Riser 1; Figure 51. Removing Riser 2; Install Riser 2; Remove Riser 2

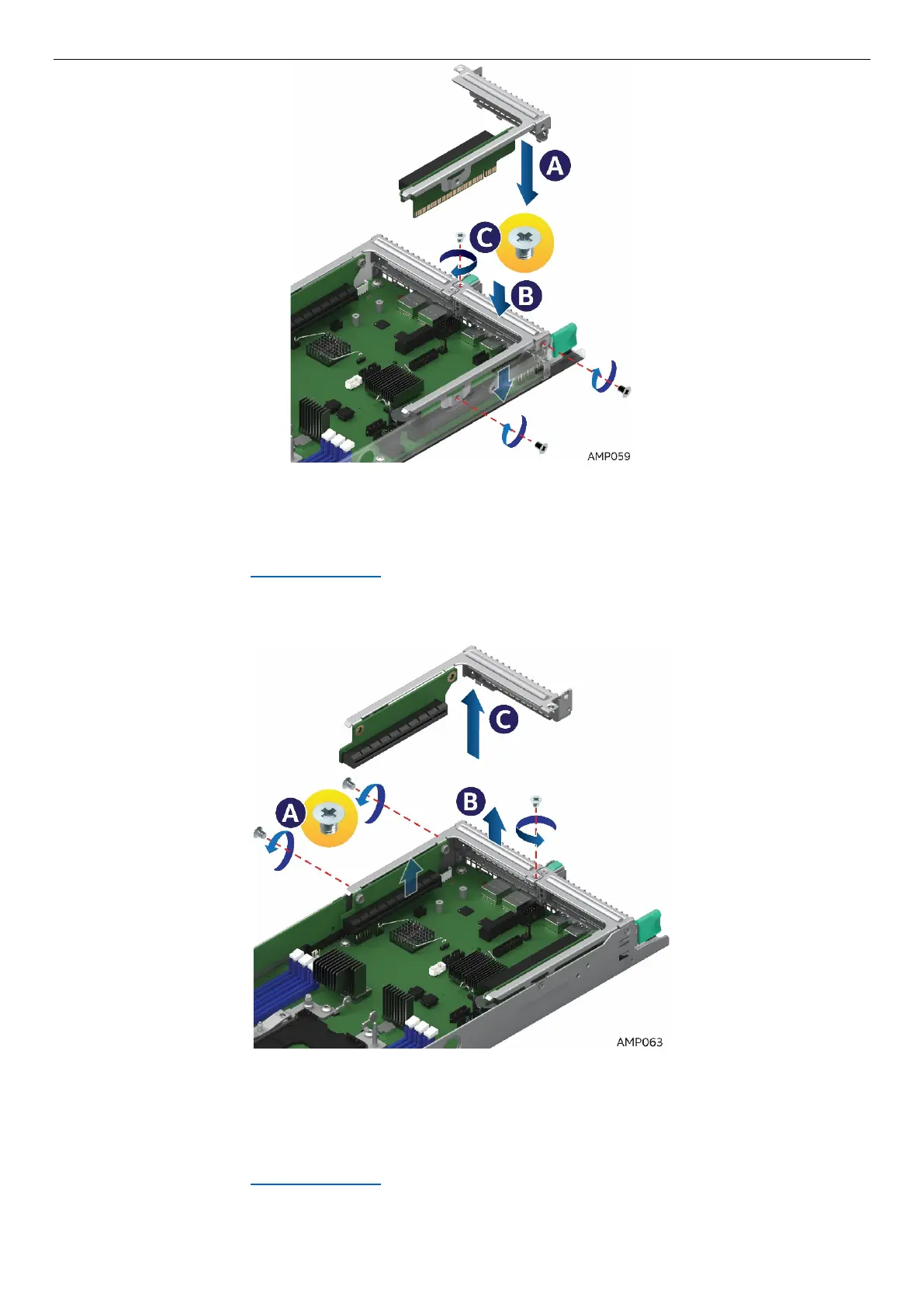

Figure 51. Installing Riser 1
2.7.3 Remove Riser 2
1. Power off the compute module and disconnect the power cable(s).
2. Remove the air duct. See section 2.3.1
.
3. Loosen the 3 screws (See A )
4. Pull and lift the riser straight up and out of the system (See B and C)
Figure 52. Removing Riser 2
2.7.4 Install Riser 2
1. Power off the compute module and disconnect the power cable(s).
2. Remove the air duct. See section 2.3.1
.
3. Align and insert Riser 2 into Riser Slot 2 (See A)
4. Ensure that the Riser is all the way down and fully seated (See B)
