1.1.5 Chassis Feature Set for Intel® Compute Module HNS7200APR
The following table lists a brief description of the 2U H2000-G Chassis Product Family features
Feature
Description
Dimensions (2U)
438mm x 86.9mm x 771/733mm
17.24” width x 3.42 length x 30.35/28.86” height
Node Support
Intel® Compute Module options:
HNS7200APR (up to four)
Power Supply
2 x 2130W AC CRPS
System Cooling
3 dual rotor 40 x 56 mm fixed fans per node
PCIe support
Two low profile PCIe cards on riser 1 and 2
Storage
4 x 2.5” SATA drive Note: 2.5” SATA HDD installed in the 3.5” Drive Carrier
Bridge Board Options:
(1) 6G SATA only RAID 0, 1, 10 SW RAID ESRT2
System SKUs
Supported for H2204XXLRE chassis only
Note: Intel® Compute Module HNS7200APR is not supported in Intel® Server Chassis H2312XXLR2 and
H2216XXLR2
For additional details on chassis features, refer to the Intel® Server Chassis H2000G Product Family TPS.
1.2 Back Panel Feature Identification
The Intel® Compute Module HNS7200AP product family has the following board rear connector placement
and features.
Label
Description
Label
Description
A
USB 3.0 Port 1
B
USB 3.0 Port 2
C
NIC port 1 (RJ45)
D
NIC port 2 (RJ45)
E
POST Code LEDs (8 LEDs)
F
ID LED
G
Status LED

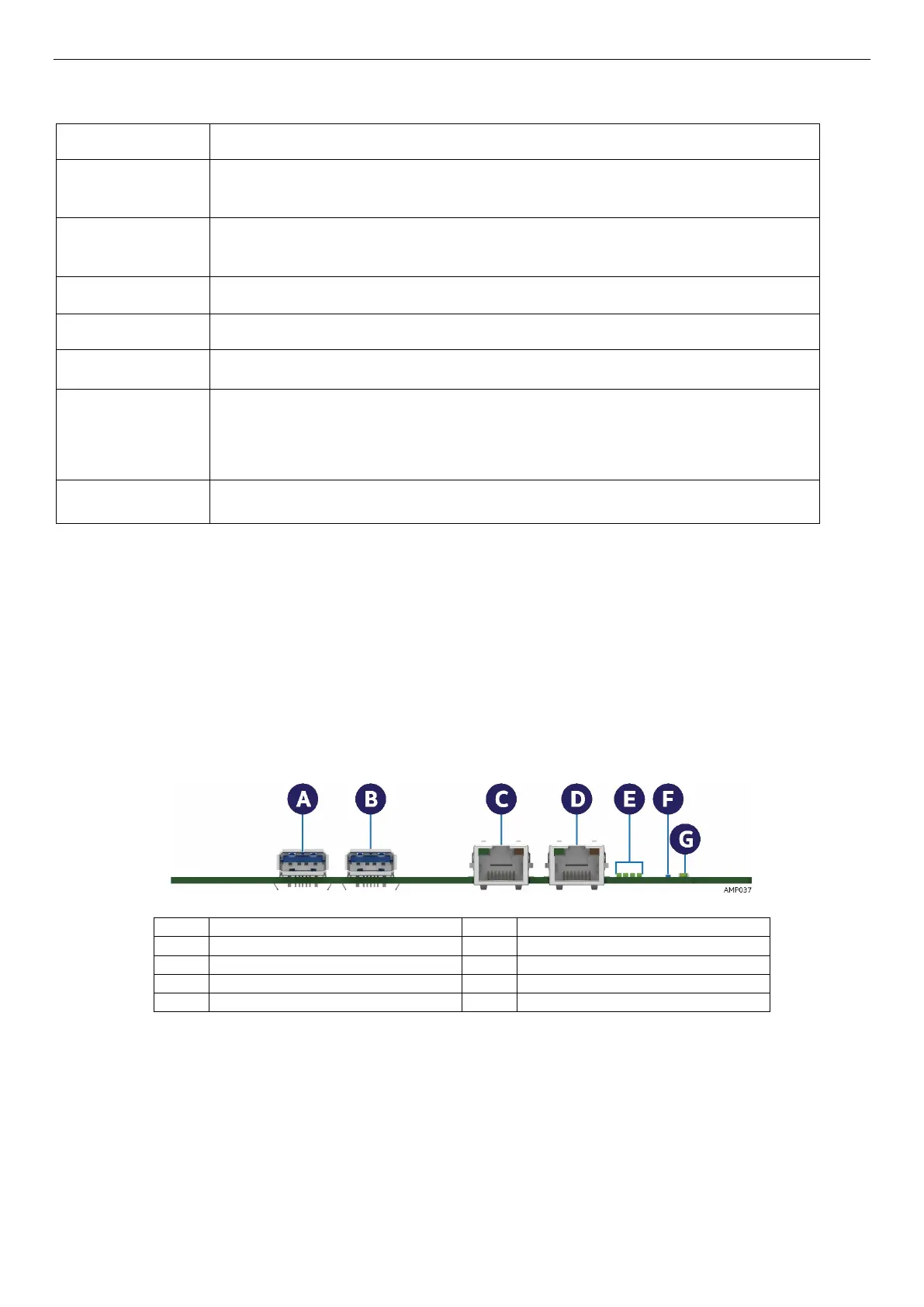

Figure 3. Intel® Server Board S7200AP Rear Connectors
