1.7 Configuration and Recovery Jumpers

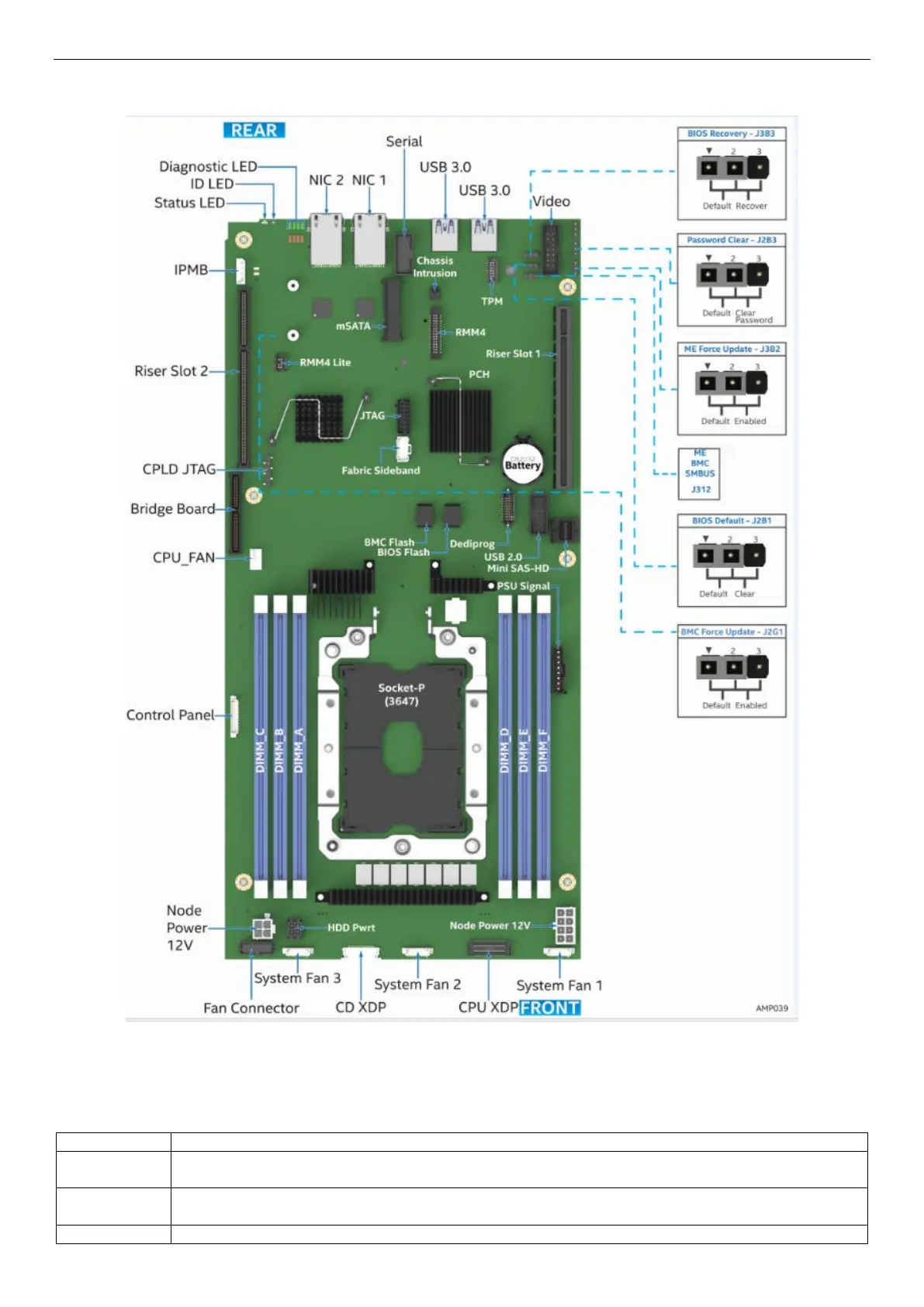

Figure 10. Configuration and Recovery Jumpers
Jumper Name
Description
BMC Force
Update (J2G1)
If pins 2-3 are selected, the Integrated BMC Force Update Mode is enabled. These pins should be selected
on 1-2 for normal system operation.
BIOS Default
(J2B1)
If pins 2-3 are selected, the BIOS settings are restored to the factory defaults on the next reset. These pins
should be selected on 1-2 for normal system operation.
BIOS Recovery
If the system BIOS is corrupted, an onboard backup copy of the BIOS can be loaded using the BIOS
