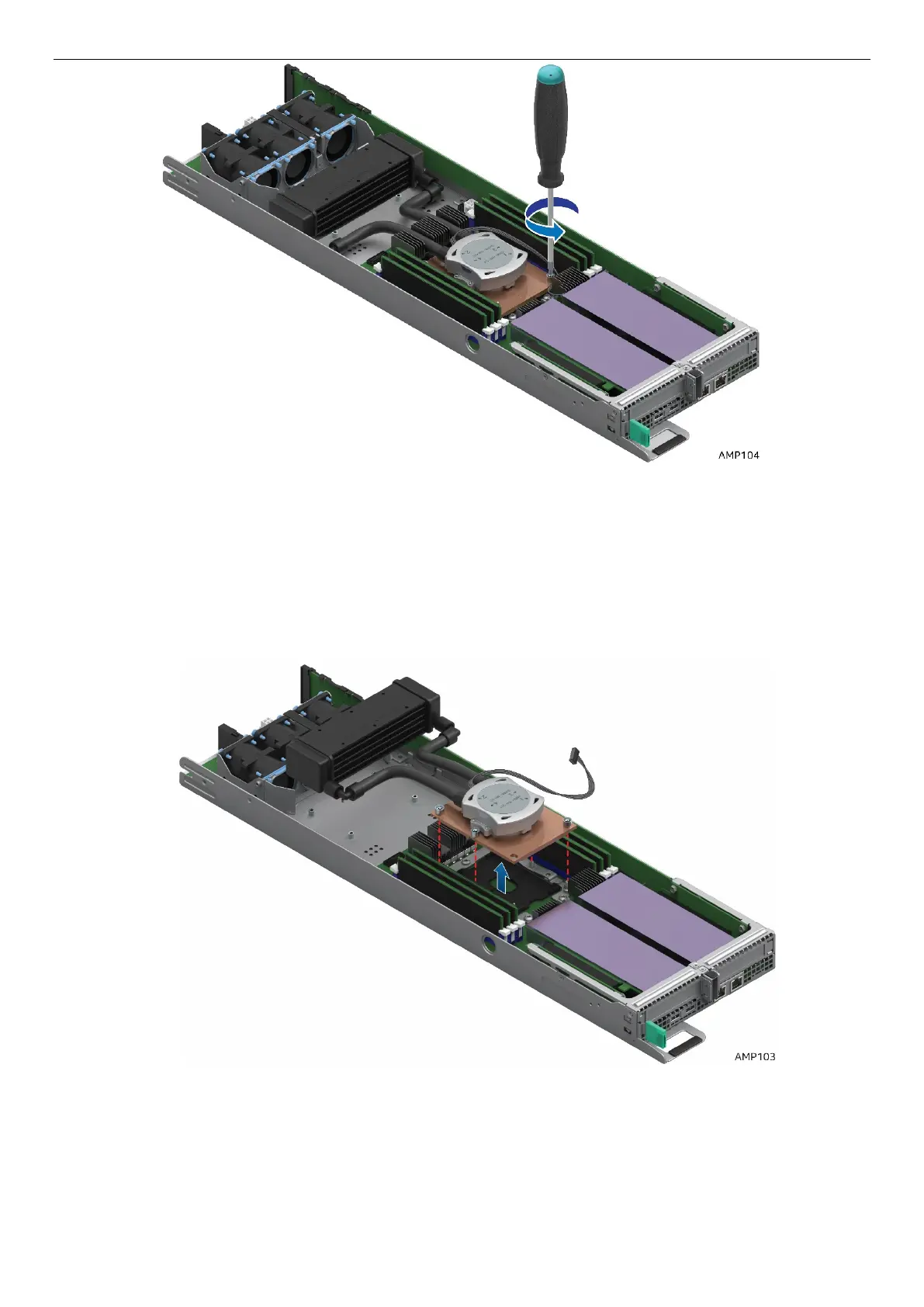

Figure 39. Remove Cold Plate Assembly
6. Carefully lift the LACC Assembly away from the node. Use two hands to grasp the heat exchanger and
cold plate to safely remove the LACC assembly.
Figure 40. Lift out LACC Assembly
