2.3.2 Installing the Air Duct
NOTES: Ensure that all DIMM latches are closed before installing the air duct.
1. Align the front end of the air duct with the hinges on both sides of the fan bracket (See letter A).
2. Rotate the air duct (See letter B) and lower it down until the left and right side buttons snaps into place.

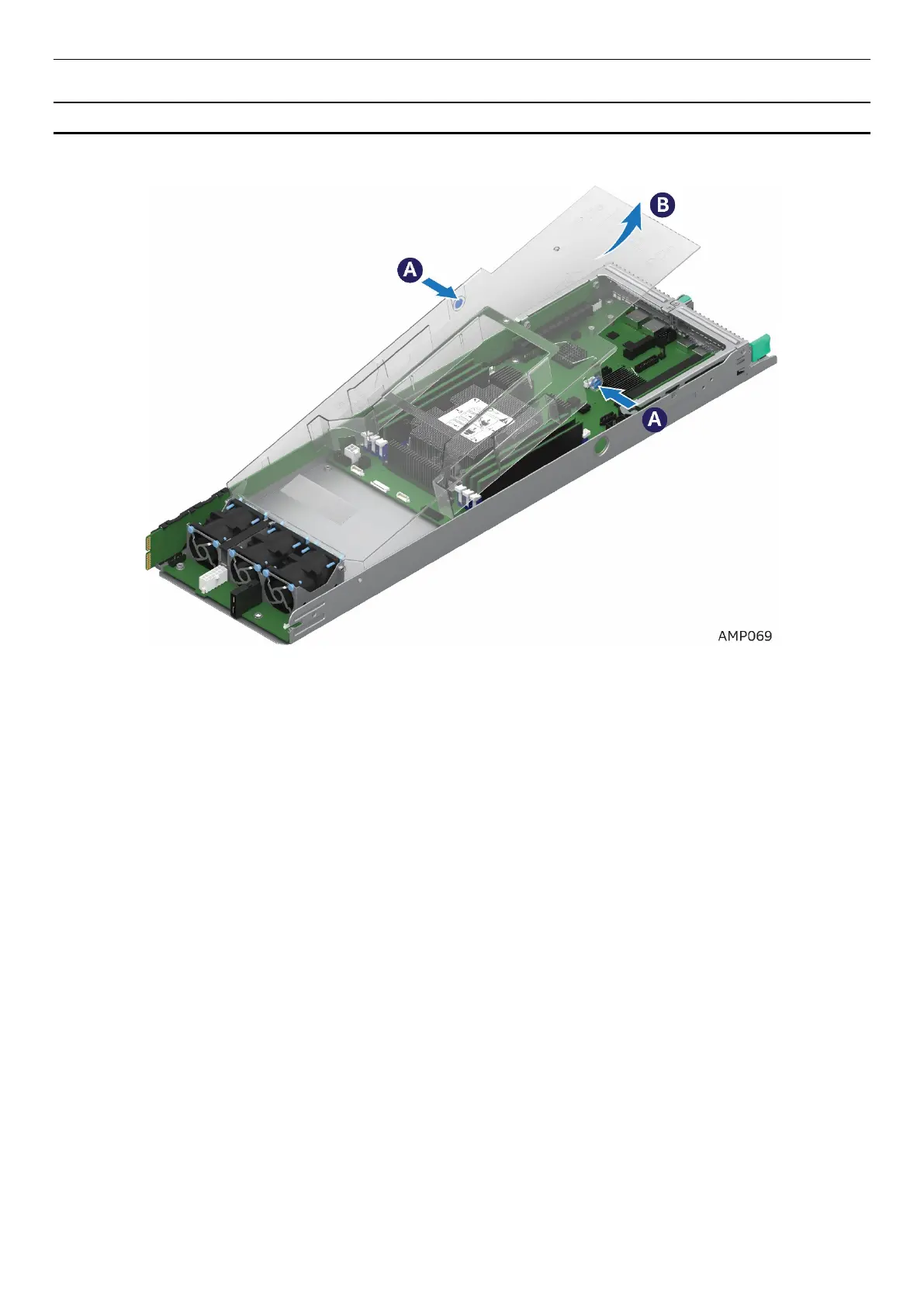

Figure 13. Installing the Air Duct
