INVT Goodrive300-01A-RT Series User Manual

Goodrive300-01A-RT series integrated machine Commissioning instruction
-20-
Click Jog for the main motor to determine the motor rotation direction; click Load or Unload to test
the action of solenoid valve. Click Return to enter system configuration, then, click Menu to return to
the menu interface.
Note: If the motor rotates reversely, adjust the wiring sequence of the motor cable.
6. Return to the menu interface after you complete the commissioning on the "System config" page
according to the factory commissioning guide.
7. Click Fan Parameters in the menu.

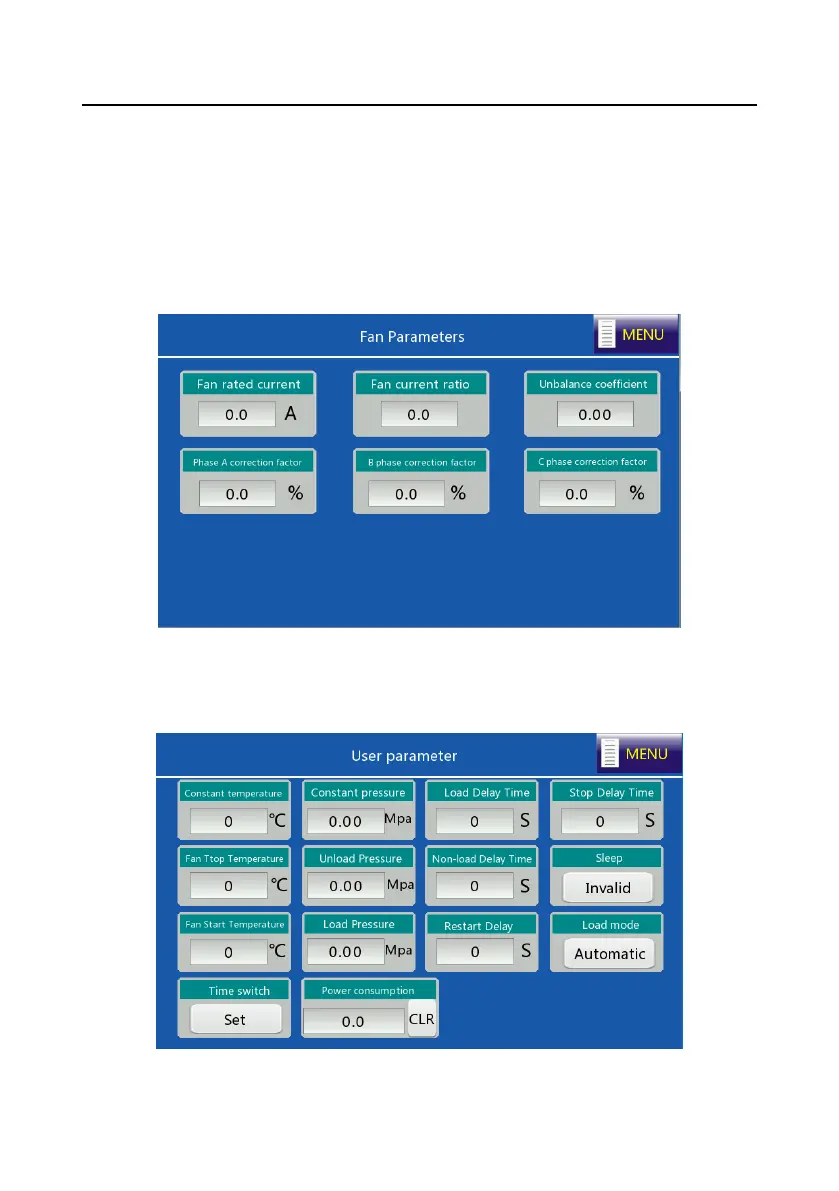

Figure 4-8 Fan parameters interface
Set the fan rated current according to the fan nameplate.
8. Click User parameter in the menu.
Figure 4-9 User parameter interface
