Chapter 3 Machine disassembly
Chapter 3 Machine disassembly
3.1 For each type
3.1.1 Case Cover

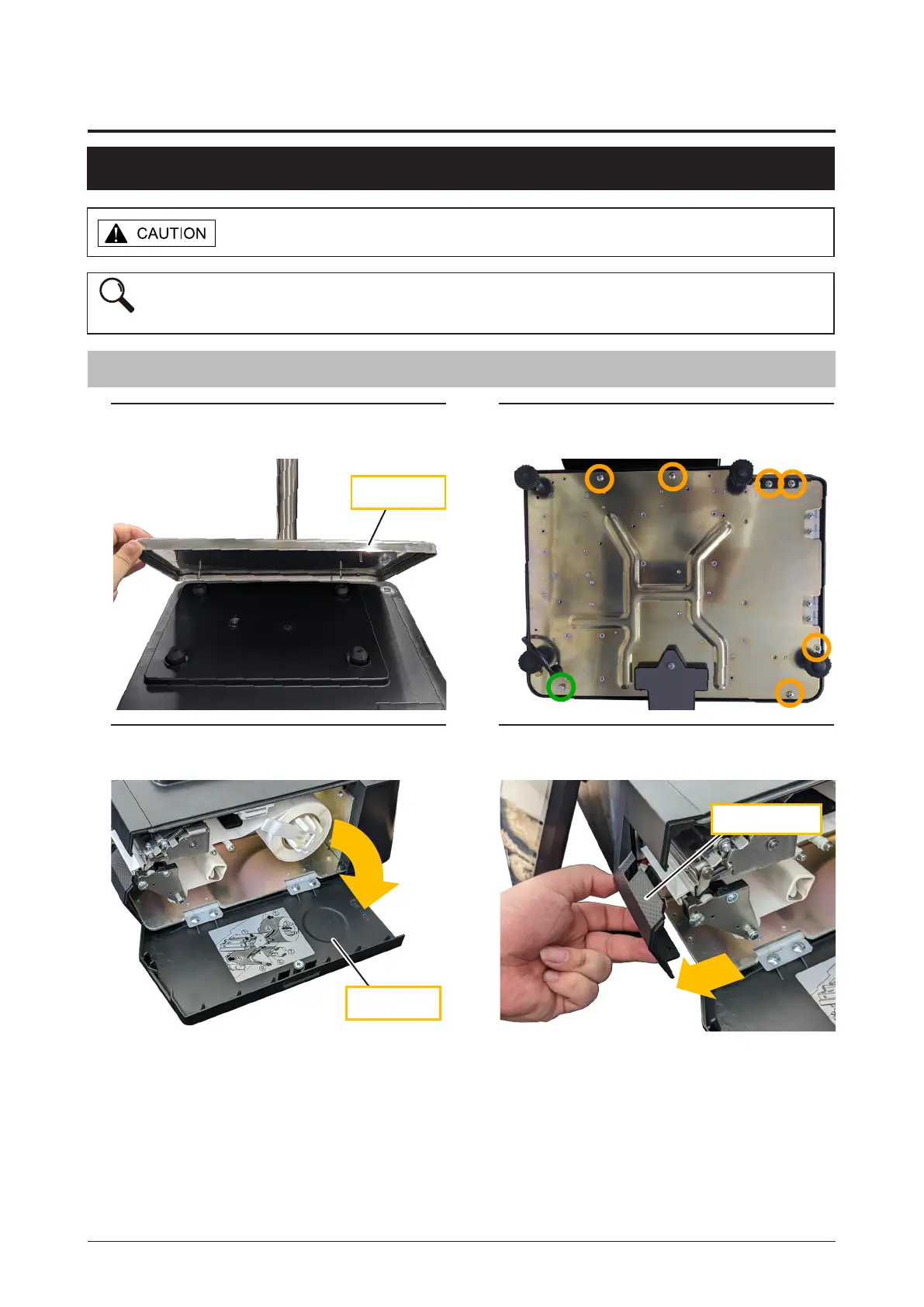

1. Detach the platter.
3. Open the side cover.
2. Remove the six screws (orange)
and one hex screw (8 mm, green).
4. Unhook the front cover.
Make sure to unplug the power cord from the wall outlet before starting the
disassembly work.
The procedure of this section is based on that of Bench Type. For the Customer Display and
Operation Display of Hanging Type, refer to the section3.3 Hanging Type.
REFERENCE
Platter
Side cover
Front cover
