Chapter 3 Machine disassembly

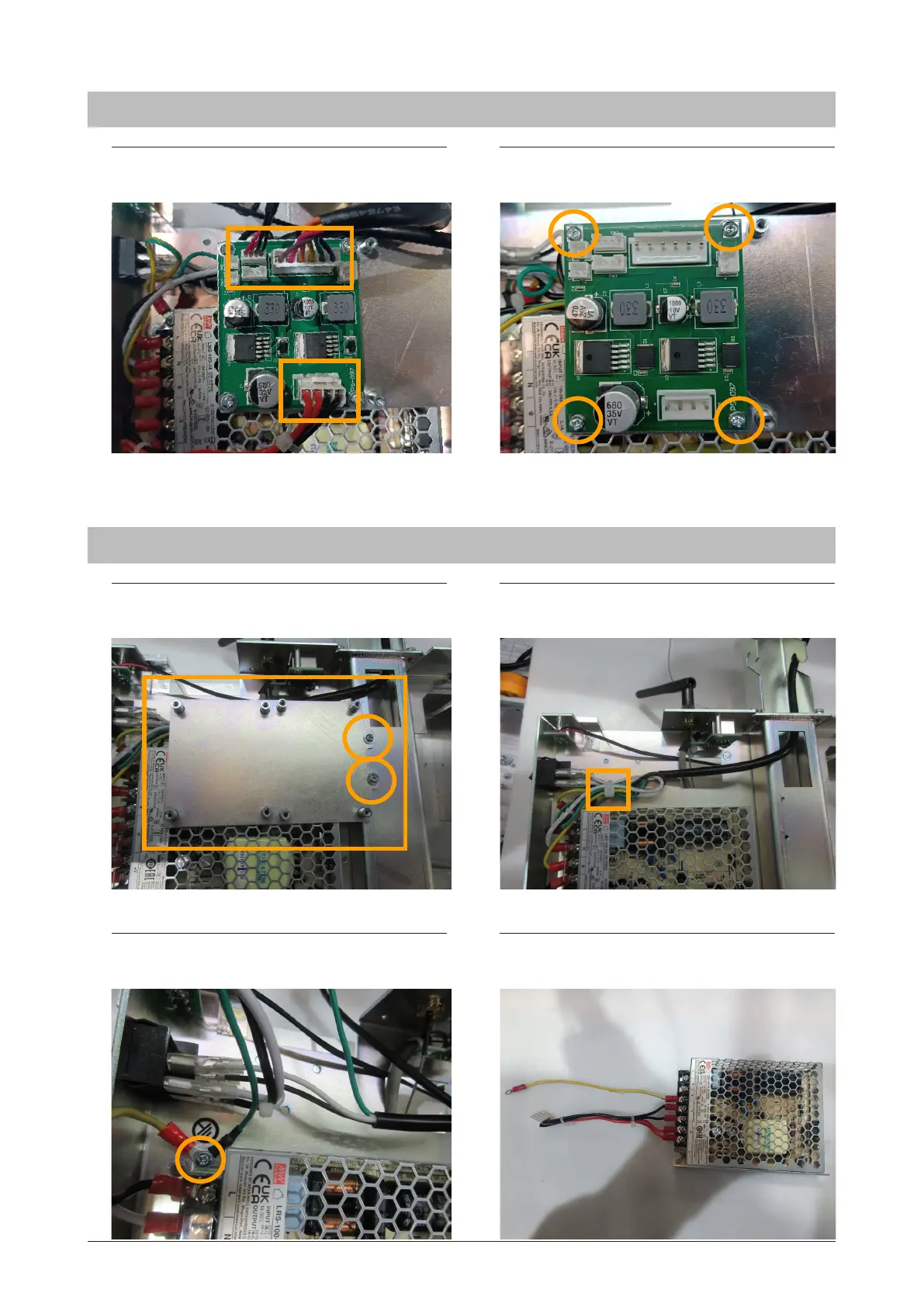

3.3.8 PS-097 Power Board
1. Unplug the connectors.
2. Remove the four screws and
remove PS-097 Power Board.
3.3.9 Power Supply
1. Remove the two screws and
remove the support plate.
2. Cut off the cable tie.
3. Remove the screw and ground
wires.
2. Detach the power supply.
