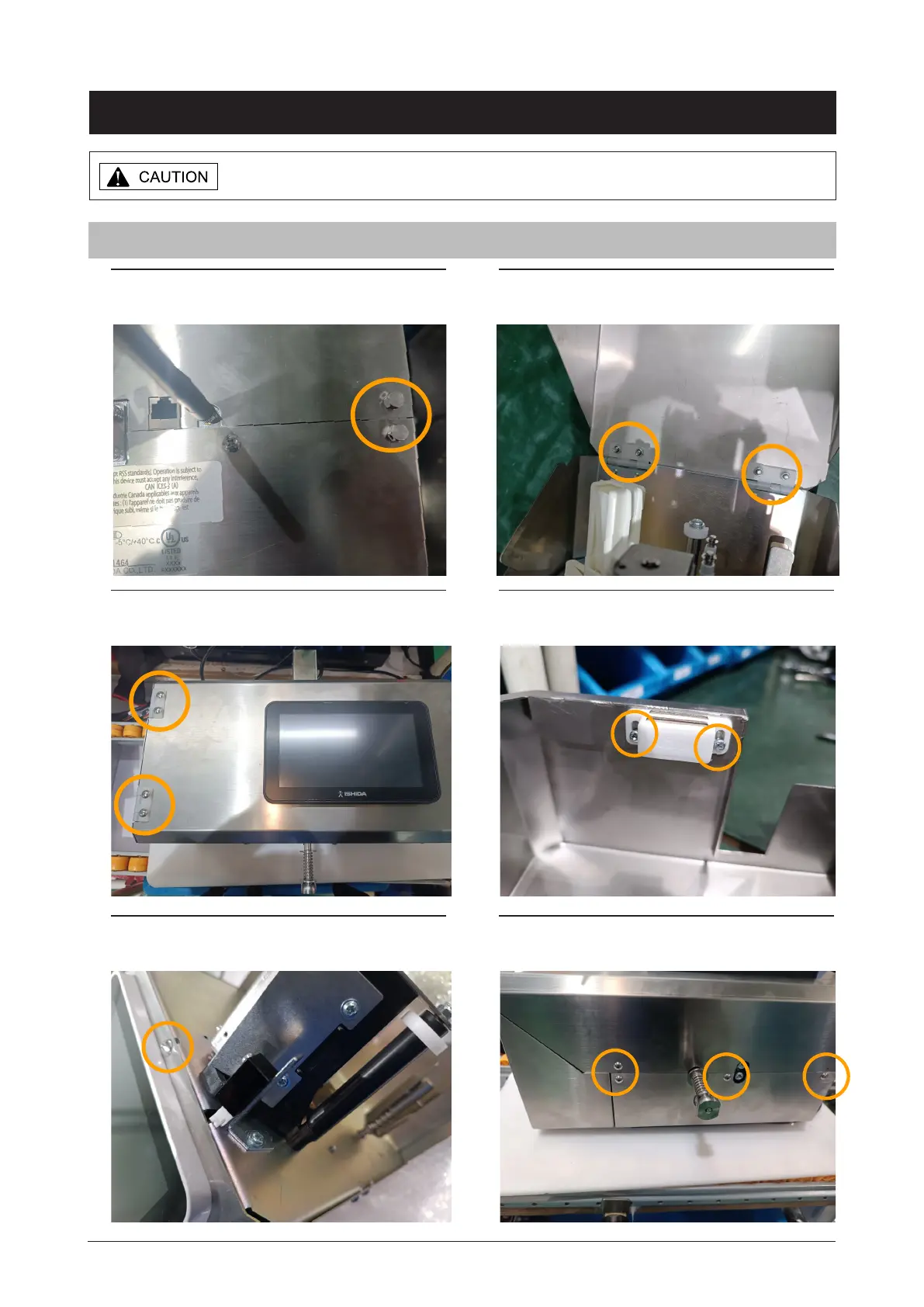

Chapter 3 Machine disassembly
3.3 Hanging type
3.3.1 Case Cover
Make sure to unplug the power cord from the wall outlet before starting the
disassembly work.
1. Remove two housing seal screws.
3. Remove the four screws and
remove fixed hinges
2. Remove the four hinge nuts and
remove the side panels.
4. Remove the two screws and
remove door magnet.
5. Remove the screw.
6. Remove the four screws.
