ISHIDA UNI-8 - Module Board

3-8
Capter 3 Machihe disassembly

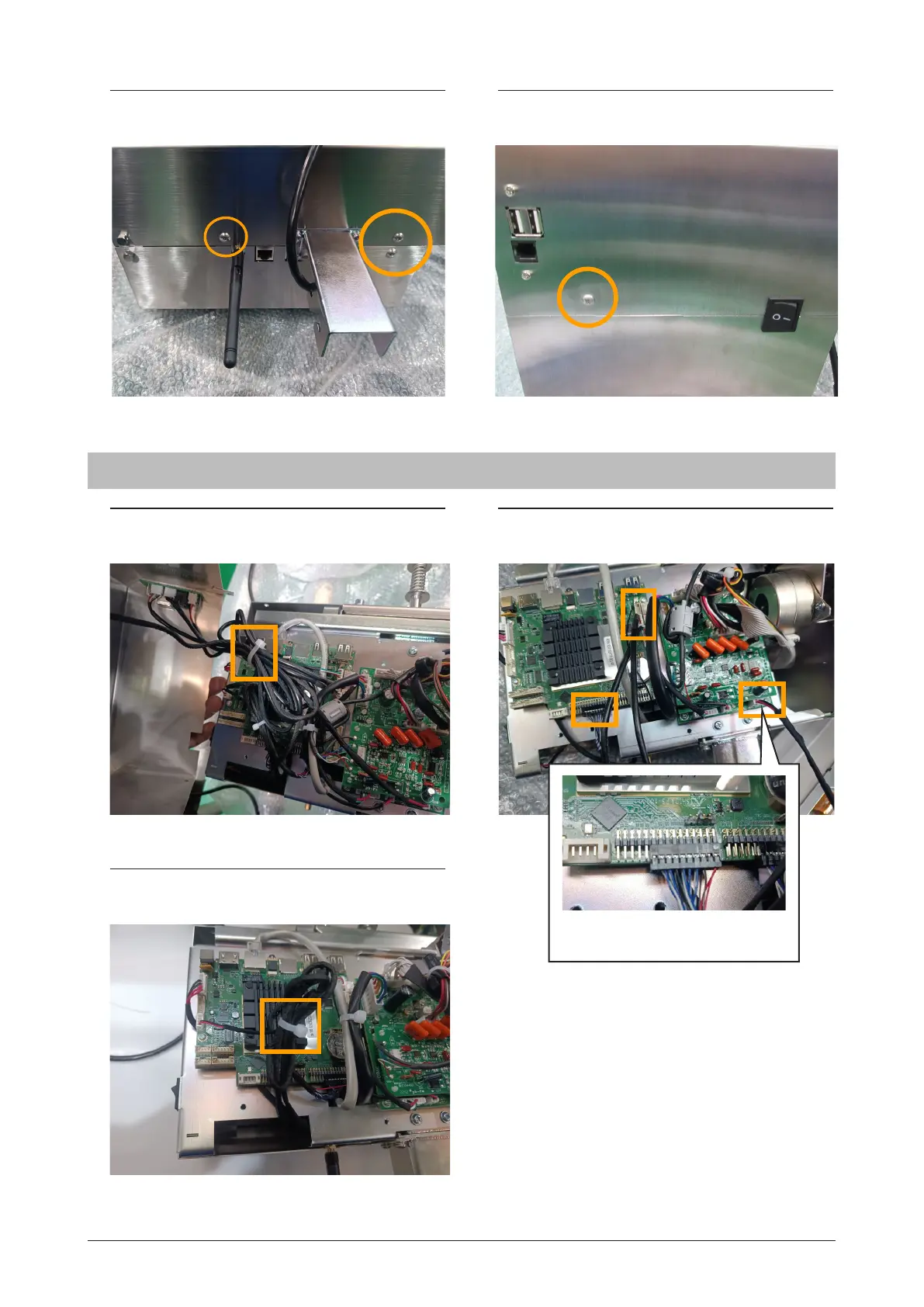

7. Remove the three screws.
1. Cut off the cable tie.
8. Remove the screw and remove
front and rear covers.
2. Unplug the connectors.
3. Cut off the cable tie.
3.3.2 PS-105 Module Board
Rear Display
Connecter Position
