3-5

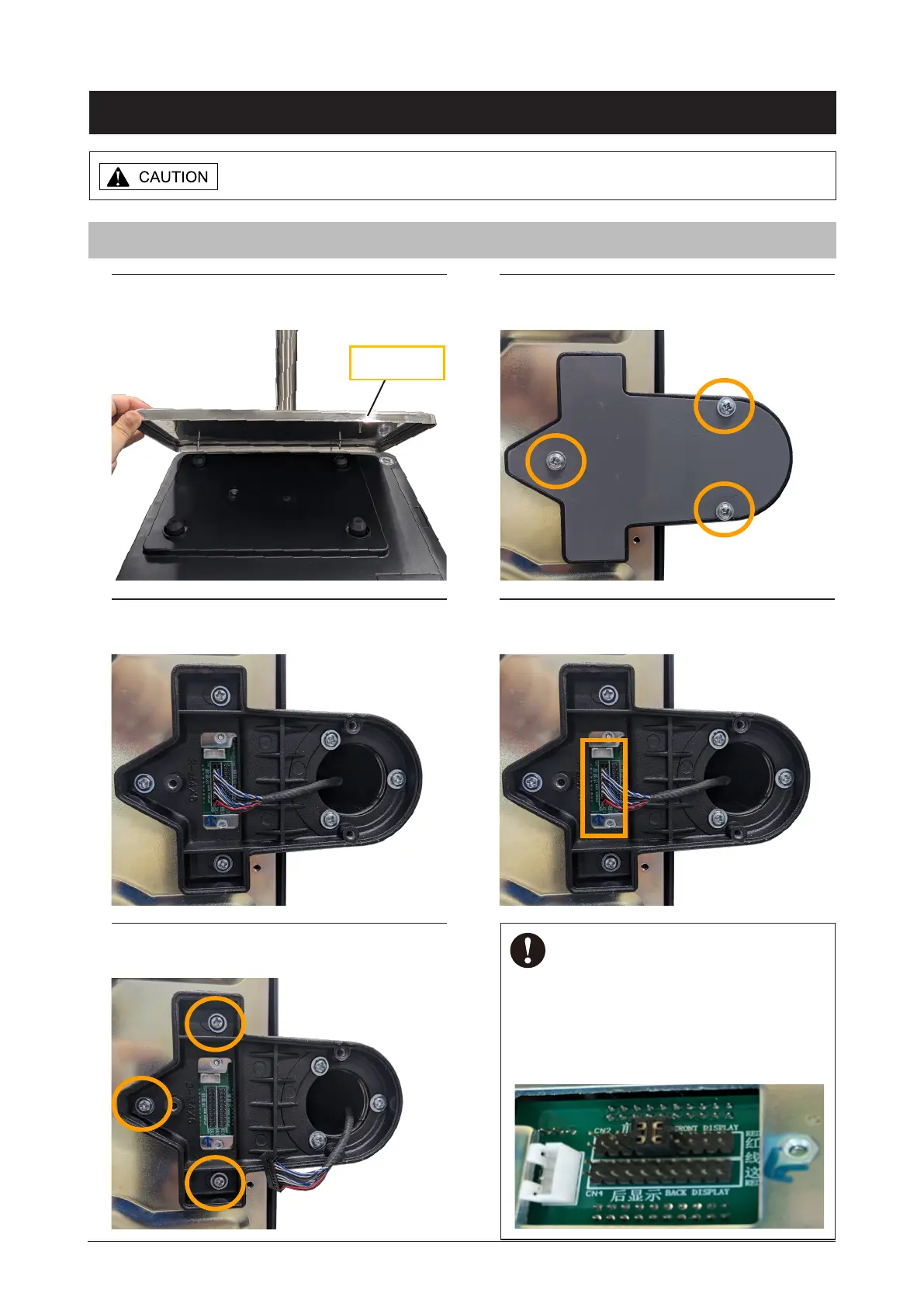

Chapter 3 Machine disassembly
3.2 Pole type
3.2.1 Pole Unit
1. Detach the platter.
3. Detach the cover.
2. Remove the three screws.
4. Unplug the connector.
Make sure to unplug the power cord from the wall outlet before starting the
disassembly work.
5. Remove the three screws and
detach the base.
Platter
When installing the customer display
on the Bench/Pole model, pay
attention to the orientation of the
harness. Insert the connector so that
the red line is aligned with the pin on
the side with the arrow.
NOTE
To Next Page
