4-6
Capter 4 Electric Components
4.1.6 Main Display and Touch Panel Board

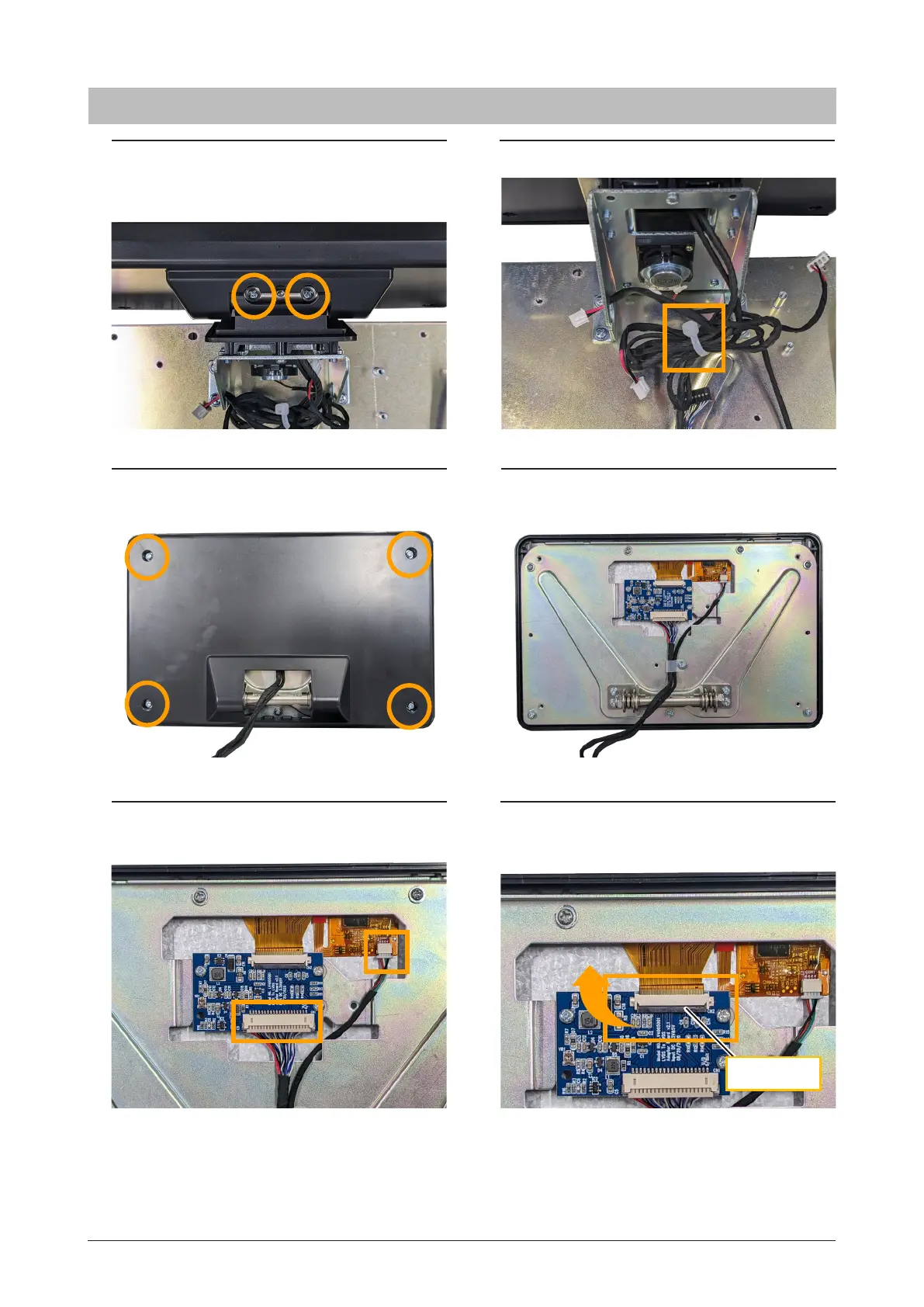

1. Remove the two screws. 2. Cut the tie and untie the cords.
3. Remove the four screws. 4. Remove the cover.
5. Unplug the two connectors. 6. Pull up the stopper and unplug the
flat cable.
Stopper
