ISHIDA UNI-8 - A;D Board; PS-096 C Printer Board; Main Board

3-12
Capter 3 Machihe disassembly

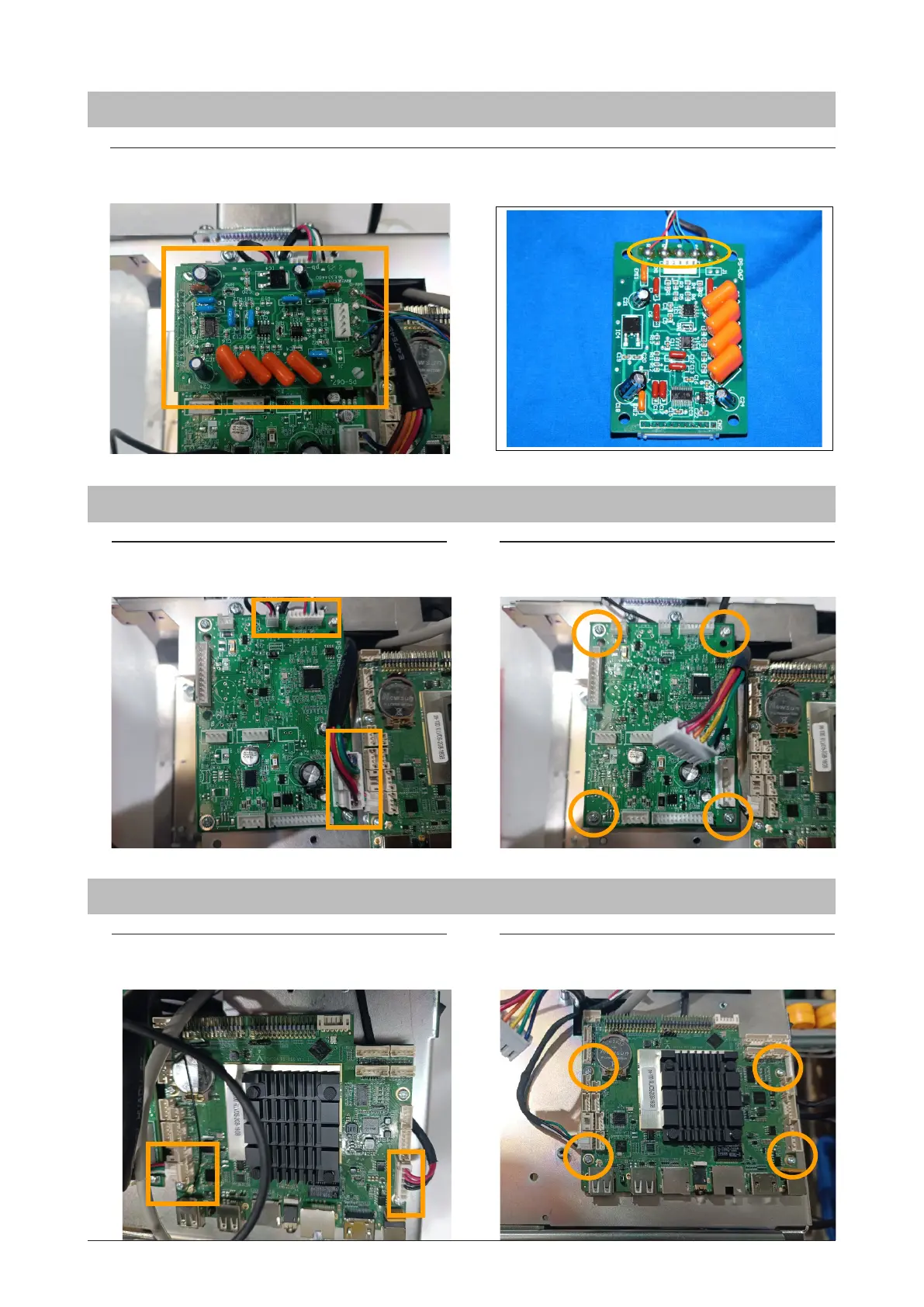

1. Pull PS-067 straight up and unplug
the connector on the back side.
3.3.5 PS-067 A/D Board
When replacing the load cell, remove
the solder.
3.3.6 PS-096C Printer Board
1. Unplug the connectors.
2. Remove the four screws and
remove PS-096C Printer Board.
3.3.7 PS-100 Main Board
1. Unplug the connectors.
2. Remove the four screws and
remove PS-100 Main Board.
