ISHIDA UNI-8 - Electrical Signals

4-10
Capter 4 Electric Components

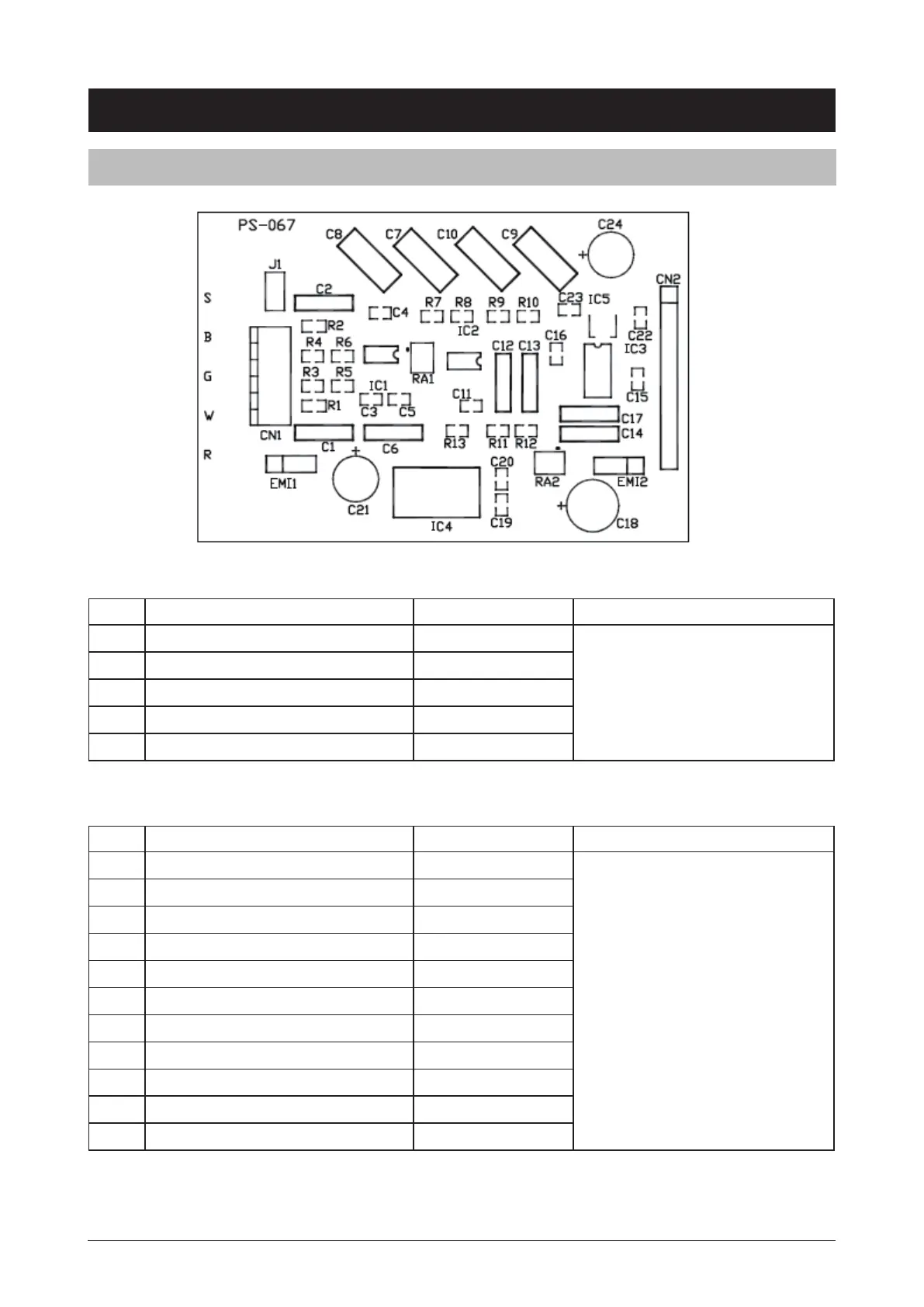

4.2.1 PS-067
4.2 Electrical signals
No. Signal Name Direction Opposite Side
1 R -
Load Cell
2 W -
3 G <-
4 B <-
5 S -
CN1
No. Signal Name Direction Opposite Side
1 Not Connected
PS-096C
2 XIN_2.5MHz <-
3 RESET <-
4 SCLK <-
5 Not Connected
6 +5V -
7 Not Connectted
8 DRDY ->
9 GND -
10 VIN -
11 Not Connected
CN2
