4-15
Chapter 4 Electric Components

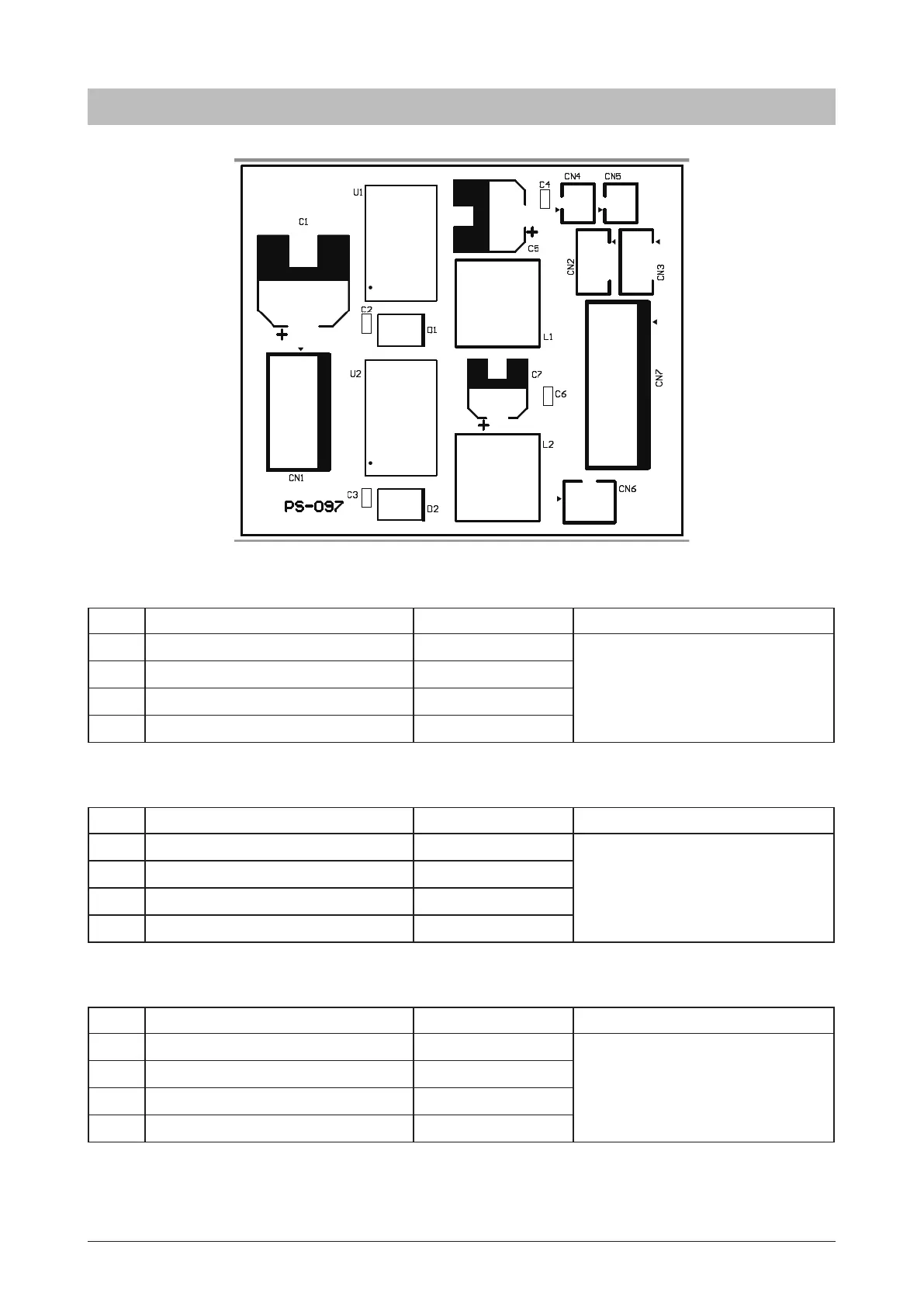

4.2.3 PS-097
No. Signal Name Direction Opposite Side
1 24V <-
Switch Power Supply
2 24V <-
3 GND <-
4 GND <-
CN1
No. Signal Name Direction Opposite Side
1 12V ->
PS-100
2 12V ->
3 GND ->
4 GND ->
CN2
No. Signal Name Direction Opposite Side
1 12V ->
PS-100
2 12V ->
3 GND ->
4 GND ->
CN3
