jcb 19C-1E User Manual

Attachments
Buckets
Installation
1. Put the tooth in position.
2. Install the nuts and bolts to secure the tooth in position.
Toe Plate
Removal
1. Make the machine safe.
Refer to: Maintenance Position (Excavator End Lowered) (Page 116).
2. Remove the nut and bolt.
3. Remove the toe plate.

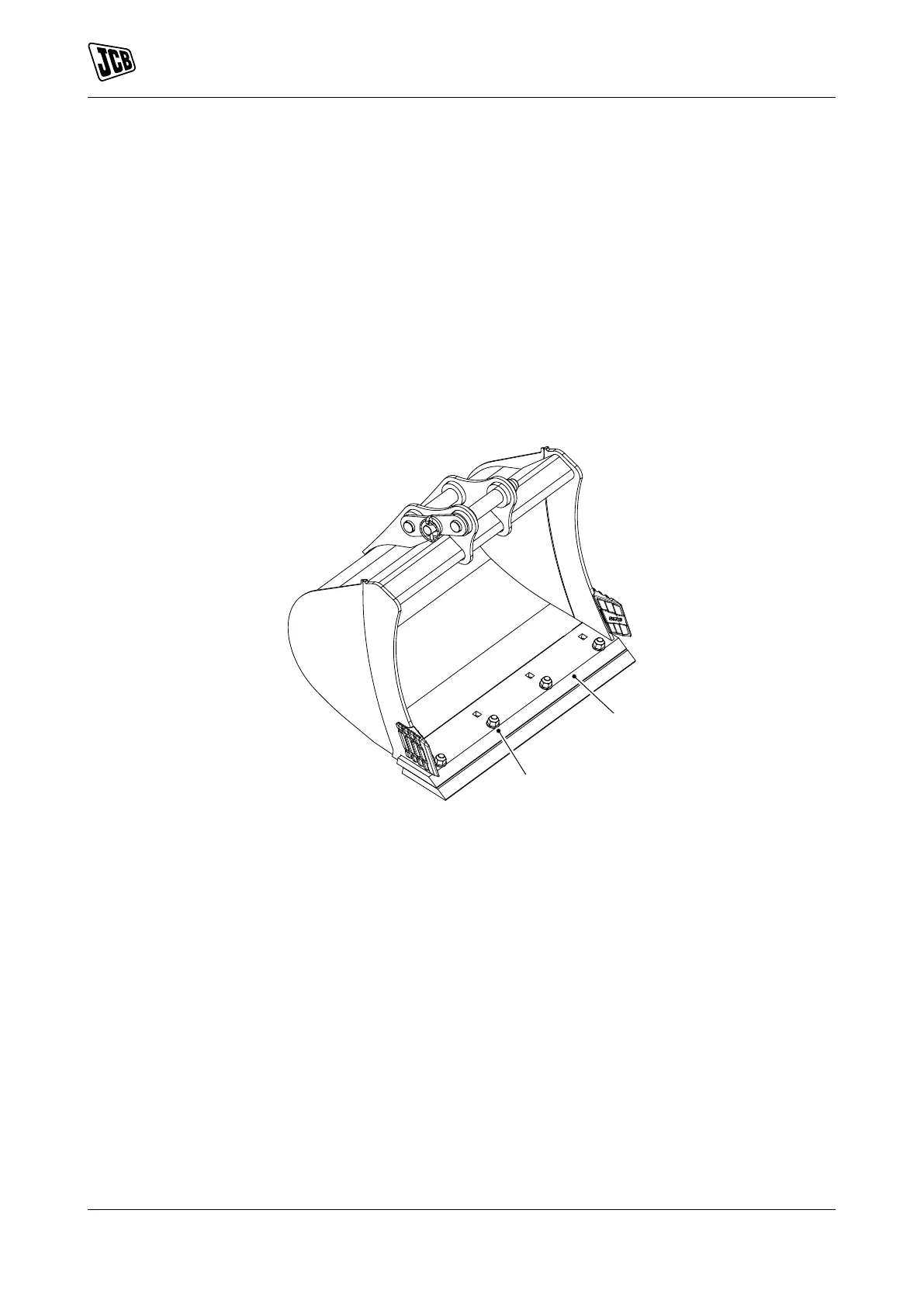

Figure 87.
A
B
A Toe plate B Nut and bolt
96 9831/8250-4 96
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
