Maintenance
Tracks
Refer to: General (Page 163).

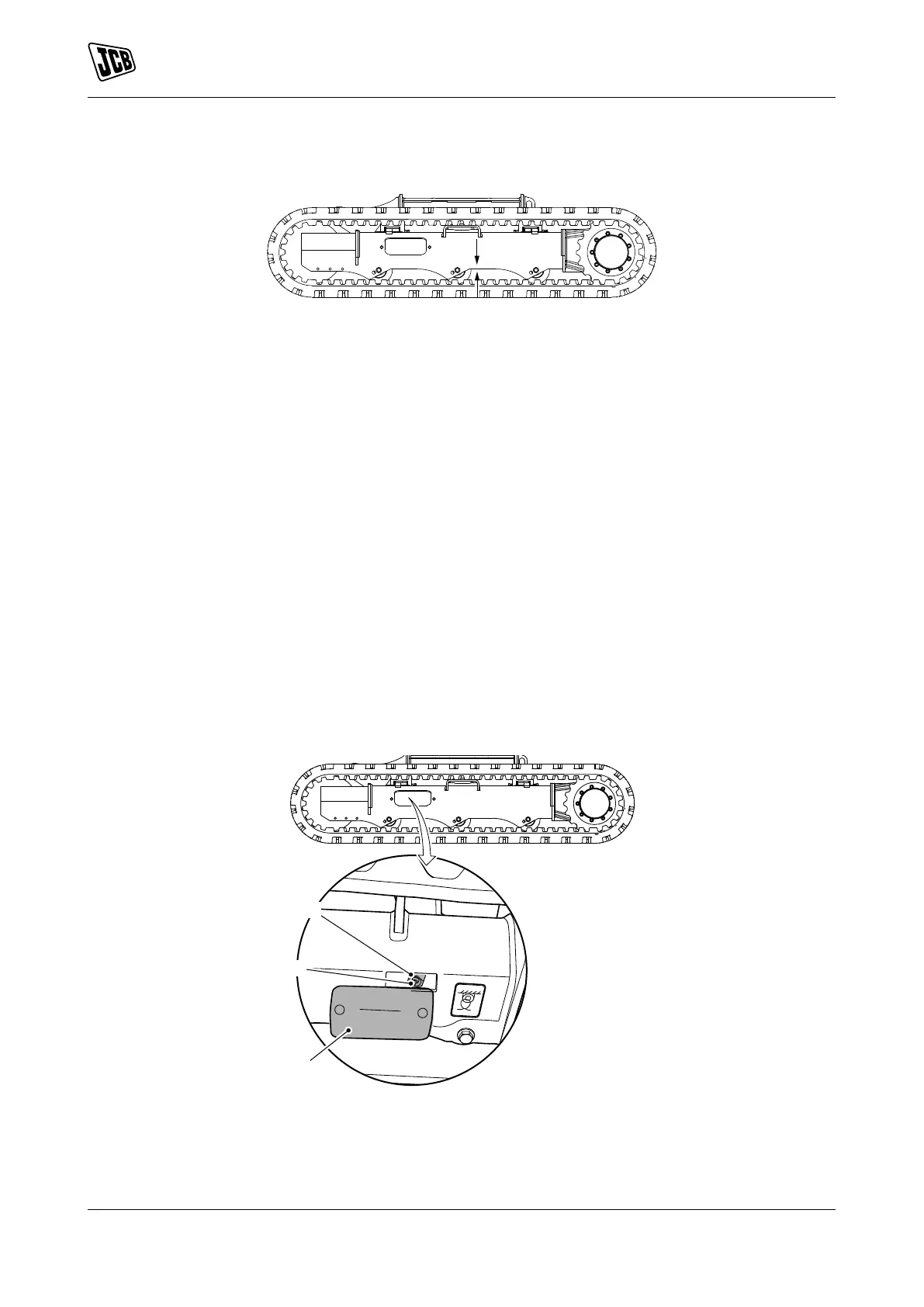

Figure 105.
A
A Tension measurement
5.1. If the measurement is incorrect then you must adjust the track tension.
Tighten the Track
1. Remove the cover plate.
2. Add grease through the nipple in the adjusting screw until track tension is correct.
3. Rotate the track. Track tension will increase during rotation.
4. Check the track tension at its tightest point to avoid over tensioning.
5. Install the cover plate.
Loosen the Track
1. Remove the cover plate (if installed).
2. Loosen adjusting screw until track tension is correct.
3. Rotate the track. Track tension will increase during rotation.
4. Check the track tension at its tightest point to avoid over tensioning.
5. Install the cover plate.
Figure 106.
C
B
A
A Cover plate (if installed) B Nipple
C Adjusting screw
135 9831/8250-4 135
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
