Operation
Lifting the Machine
7. Check that the lifting eye is positioned directly above the machine centre of gravity.

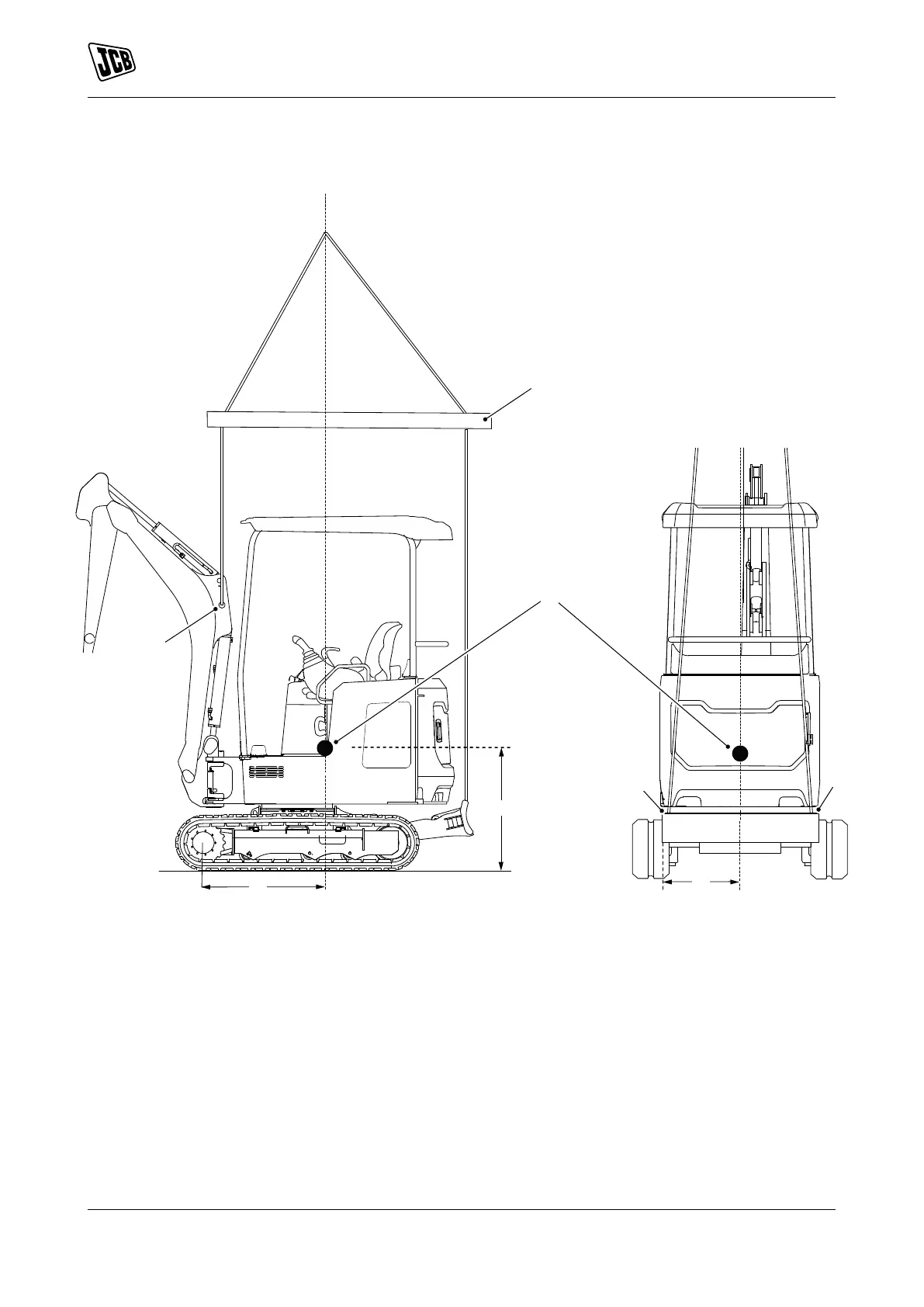

Figure 58.
A
B
B
C
F
E
G
D
A Boom lift point B Dozer blade lift point
C Spreader bar D Centre of gravity
E Dimension= 817mm F Dimension= 786mm
G Dimension= 528mm
73 9831/8250-4 73
