Attachments

Working with Attachments

Connecting the Hydraulic Hoses

1. Make the machine safe.

Refer to: Maintenance Positions (Page 116).

2. Vent the hydraulic system.

Refer to: Discharge (Page 138).

3. Check the hoses and adaptors for damage.

Refer to: Check (Condition) (Page 139).

4. Connect the hoses:

4.1. Make sure that the hose is not twisted. Pressure applied to a twisted hose can cause the hose to fail

or the connections to loosen.

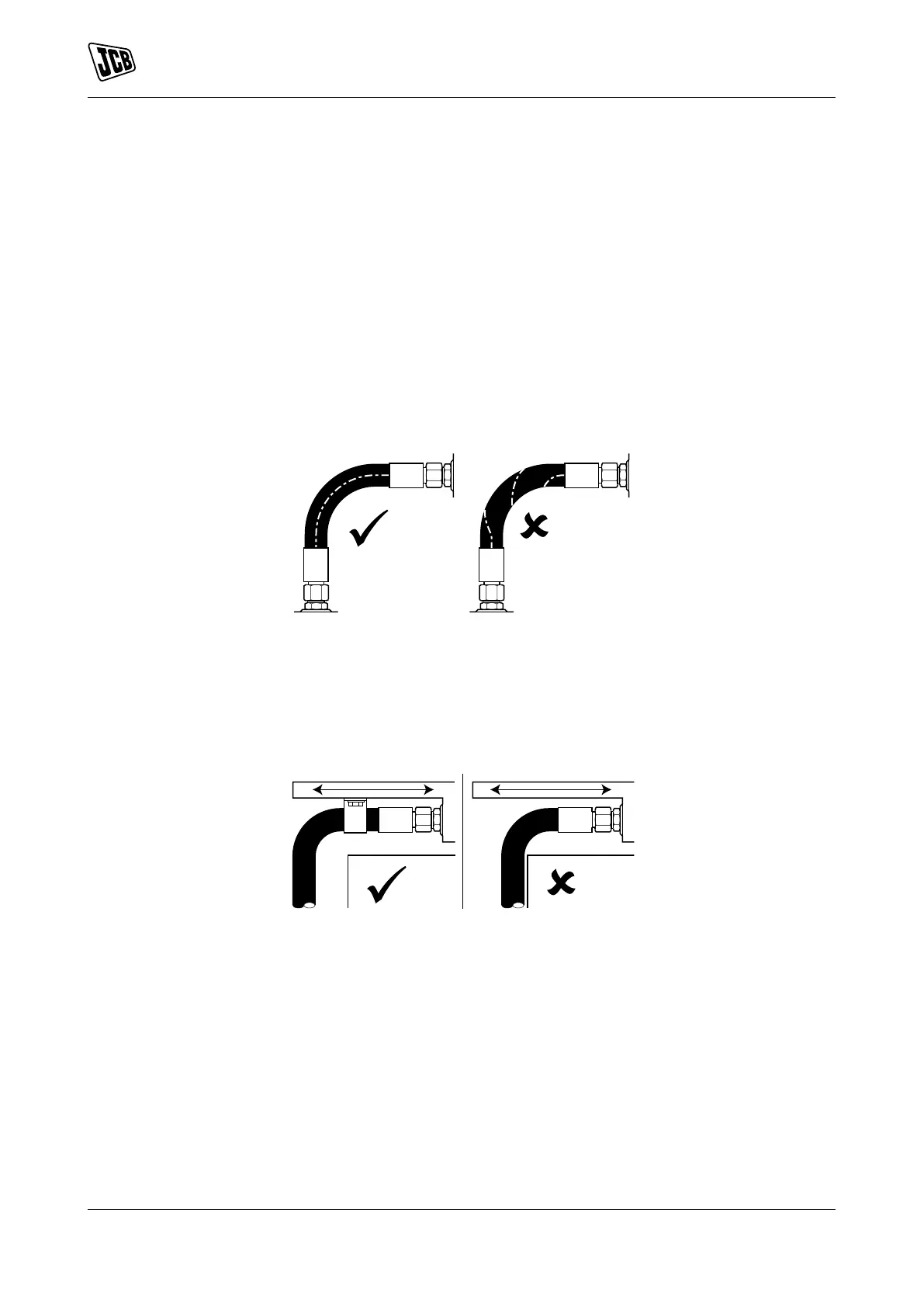

Figure 66.

4.2. Make sure that the hose does not touch hot parts. High ambient temperatures can cause the hose

to fail.

4.3. Make sure that the hose does not touch parts which can rub or cause abrasion.

4.4. Use the hose clamps (where possible) to support long hose runs and keep the hoses away from

moving parts, etc.

Figure 67.

4.5. To allow for length changes when the hose is pressurised, do not clamp at the bend. The curve absorbs

the change.

83 9831/8250-4 83
