JOHNSON CONTROLS
164
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA
DURULENE ISOLATOR CROSS-REFERENCE
* WEIGHT RANGE (LBS) * WEIGHT RANGE (KGS) VENDOR P/N COLOR YORK P/N
Up to 825 Up to 374 RD-3 CHARCOAL-WR CHARCOAL 029-25335-001
826 through 1688 375 through 766 RD-4 BRICK RED-WR BRICK RED 029-25335-002
1689 through 4000 767 through1814 RD-4 CHARCOAL-WR CHARCOAL 029-25335-004
* Value is de-rated by 25%
Units shipped on or after June 15, 2008

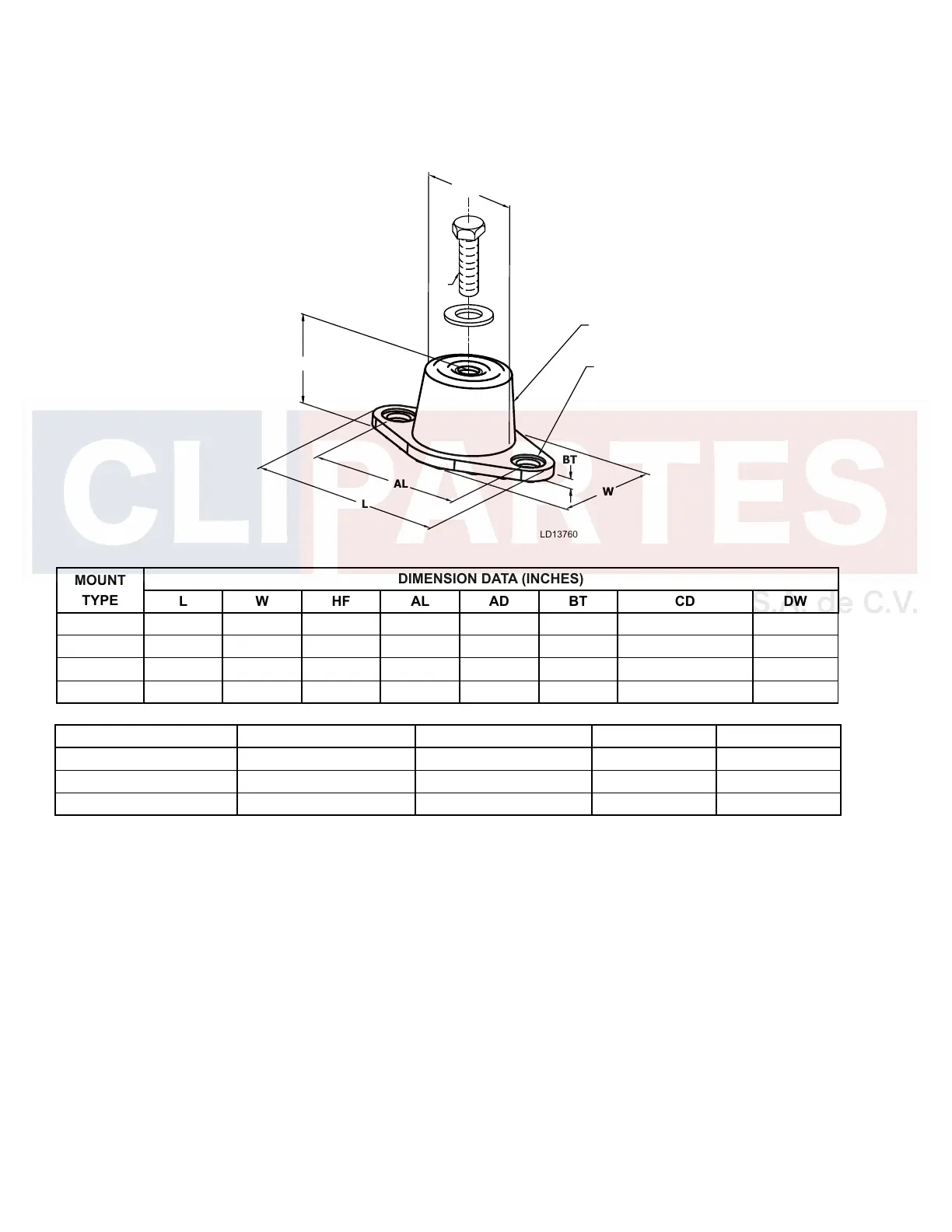

LD13760
L
AL
DW
BT
HF
n
AD THRU
TYP 2 PLACES
MOLDED
DURULENE
CD
W
NOTES:
1. ALL DIMENSIONS ARE IN INCHES, INTERPRET PER ANSI Y14.
2. REFER TO PAGE FOR INSTALLATION INSTRUCTIONS.
3. MOUNT MOLDED IN WEATHER RESISTANT DURULENE COMPOUND AS STANDARD. ALSO AVAILABLE IN OTHER MATERIALS
SUCH AS NATURAL RUBBER, EXTREME HIGH TEMPERATURE SILICONE, HIGH-DAMPED SILICONE, NITRILE, AND EPDM.
4. AL = MOUNTING HOLE CENTER TO CENTER SPACING.
5. HF = FREE HEIGHT OF MOUNT, PRIOR TO LOADING. OPERATING HEIGHT CALCULATED BY THE FREE HEIGHT LESS THE
STATIC
DEFLECTION UNDER LOAD. ALL DIMENSIONS FOR REFERENCE ONLY
6. HARDWARE ZINC-ELECTROPLATED
L W HF AL AD BT
RD1-WR 3.13 1.75 1.25 2.38 0.34 0.19
RD2-WR 3.88 2.38 1.75 3.00 0.34 0.22
RD3-WR 5.50 3.38 2.88 4.13 0.56 0.25
RD4-WR 6.25 4.63 2.75 5.00 0.56 0.38
TYPE
DIMENSIONAL DATA [INCHES]
MODEL NUMBER
RATED
CAPACITY
[LBS]
RATED
[IN]
DURO (± 5)
JCI PART
NUMBER
RD2-Light Blue-WR 135 0.5 30
RD2-Brown-WR 170 0.5 40
RD2-Brick Red-WR 240 0.5 50
RD2-Lime-WR 380 0.5 60
RD2-Charcoal-WR 550 0.5 70
MODEL NUMBER
RATED
CAPACITY
[LBS]
RATED
[IN]
DURO (± 5)
JCI PART
NUMBER
RD1-Light Blue-WR 35 0.4 30
RD1-Brown-WR 45 0.4 40
RD1-Brick Red-WR 70 0.4 50
RD1-Lime-WR 120 0.4 60
MODEL NUMBER
RATED
CAPACITY
[LBS]
RATED
[IN]
DURO (± 5)
JCI PART
NUMBER
RD3-Brown-WR 250 0.5 40
RD3-Brick Red-WR 525 0.5 50
RD3-Lime-WR 750 0.5 60
RD3-Charcoal-WR 1100 0.5 70 029 25335 001
MODEL NUMBER
RATED
CAPACITY
[LBS]
RATED
[IN]
DURO (± 5)
JCI PART
NUMBER
RD4-Brown-WR 1500 0.5 40
RD4-Brick Red-WR 2250 0.5 50 029 25335 002
RD4-Lime-WR 3000 0.5 60
RD4-Charcoal-WR 4000 0.5 70 029 25335 004
RD4-Purple-WR 5000 0.5 80
NOTES:
1. All dimensions are in inches per ANSI Y14.
2. Refer to next page for Installation Instructions.
3. Mount molded in weather resistant durulene compound as standard; also available in other materials such as natural rubber, extreme high
temperature silicone, high-damped silicone, nitrile and EDPM.
4. AL = Mounting hole center to center spacing.
5. HF = Free height of mount, prior to loading. Operating height calculated by the free height less the static deection under load.
All dimensions for reference only.
6. Hardware - Zinc electroplate.
MOUNT
TYPE
DIMENSION DATA (INCHES)
L W HF AL AD BT CD DW
RD1-WR 3.13 1.75 1.25 2.38 0.34 0.19 5/16-18 UNC X 3/4 1.25
RD2-WR 3.88 2.38 1.75 3.00 0.34 0.22 3/8-16 UNC X 1 1.75
RD3-WR 5.50 3.38 2.88 4.13 0.56 0.25 1/2-13 UNC X 1 2.50
RD4-WR 6.25 4.63 2.75 5.00 0.56 0.38 1/2-13 UNC X 1 3.00
