JOHNSON CONTROLS
72
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA

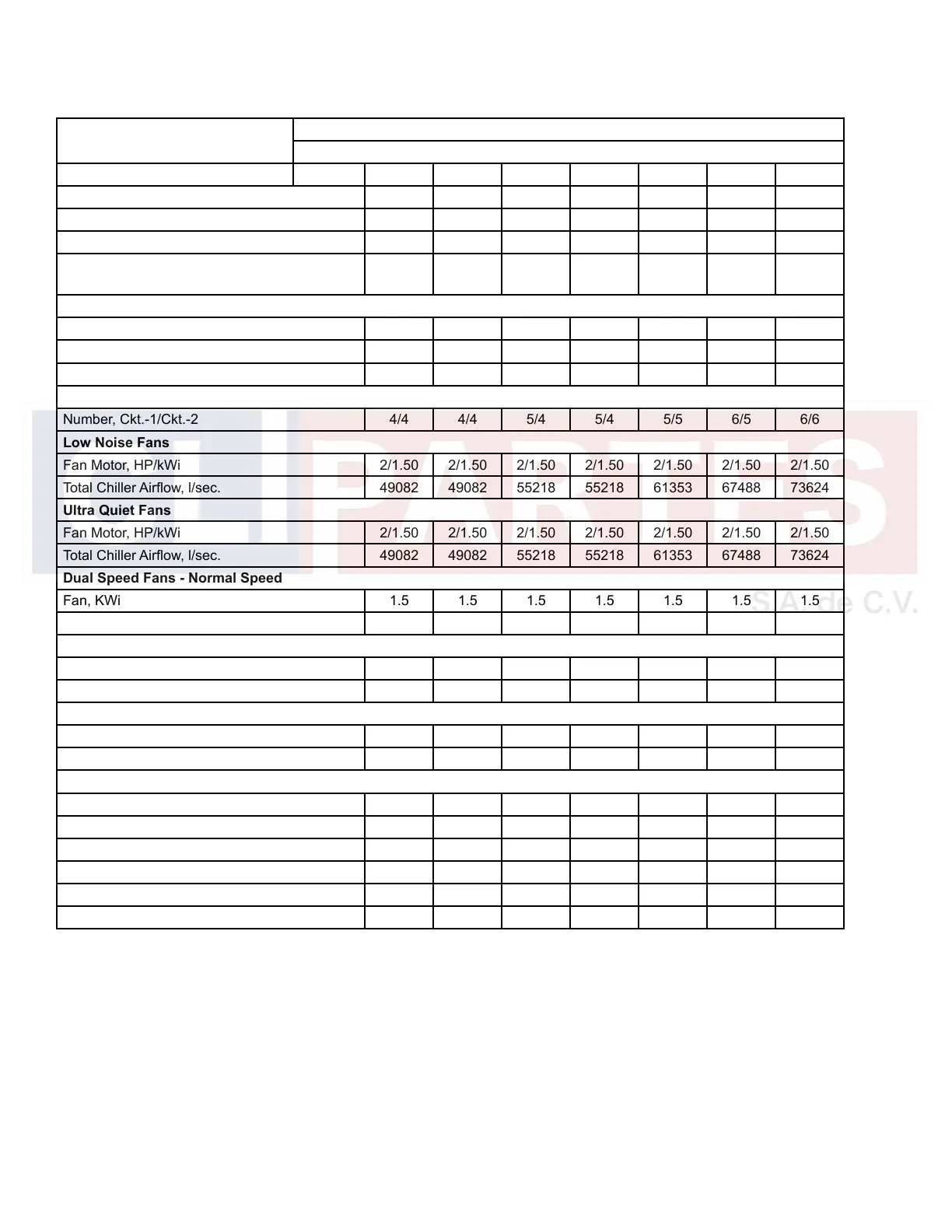

PHYSICAL DATA (SI - STANDARD EFFICIENCY)
REFRIGERANT R-134A
STANDARD EFFICIENCY
MODEL NUMBER (YCIV____ S/P)
GENERAL UNIT DATA 60HZ 0157 0177 0187 0207 0227 0247 0267
Number of Independent Refrigerant Circuits 2 2 2 2 2 2 2
Refrigerant Charge, R-134a, Ckt.-1/Ckt.-2, kg. 74/74 77/77 84/77 87/80 87/87 105/89 105/105
Oil Charge, Ckt.-1/Ckt.-2, liters 19/19 19/19 19/19 19/19 19/19 19/19 19/19
Compressors, Semihermetic Screw Qty per
Chiller
2 2 2 2 2 2 2
Condensers, High Efficiency Fin/Tube with Integral Subcooler
Total Chiller Coil Face Area, m2 21.8 21.8 24.5 24.5 27.2 30.0 32.7
Number of Rows 3 3 3 3 3 3 3
Fins per meter 669 669 669 669 669 669 669
Condenser Fans
Number, Ckt.-1/Ckt.-2 4/4 4/4 5/4 5/4 5/5 6/5 6/6
Low Noise Fans
Fan Motor, HP/kWi 2/1.50 2/1.50 2/1.50 2/1.50 2/1.50 2/1.50 2/1.50
Total Chiller Airow, l/sec. 49082 49082 55218 55218 61353 67488 73624
Ultra Quiet Fans
Fan Motor, HP/kWi 2/1.50 2/1.50 2/1.50 2/1.50 2/1.50 2/1.50 2/1.50
Total Chiller Airow, l/sec. 49082 49082 55218 55218 61353 67488 73624
Dual Speed Fans - Normal Speed
Fan, KWi 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Total Chiller, m3/s 42 42 47 47 52 57 62
Dual Speed Fans - Lower Speed
Fan, KWi 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Total Chiller, m3/s 32 32 36 36 40 44 48
High Static Fans
Fan, KWi 3.7 3.7 3.7 3.7 3.7 3.7 3.7
Total Chiller, m3/s 49 49 55 55 61 67 74
Evaporator, Direct Expansion
Water Volume, liters 253.6 359.6 359.6 529.9 529.9 529.9 529.9
Maximum Water Side Pressure, Bar 10 10 10 10 10 10 10
Maximum Refrigerant Side Pressure, Bar 16 16 16 16 16 16 16
Minimum Chilled Water Flow Rate, l/sec. 8.8 10.1 10.1 11.4 11.4 11.4 11.4
Maximum Chilled Water Flow Rate, l/sec. 42.6 47.3 47.3 50.5 50.5 50.5 50.5
Water Connections, inches 8 10 10 10 10 10 10
