SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6

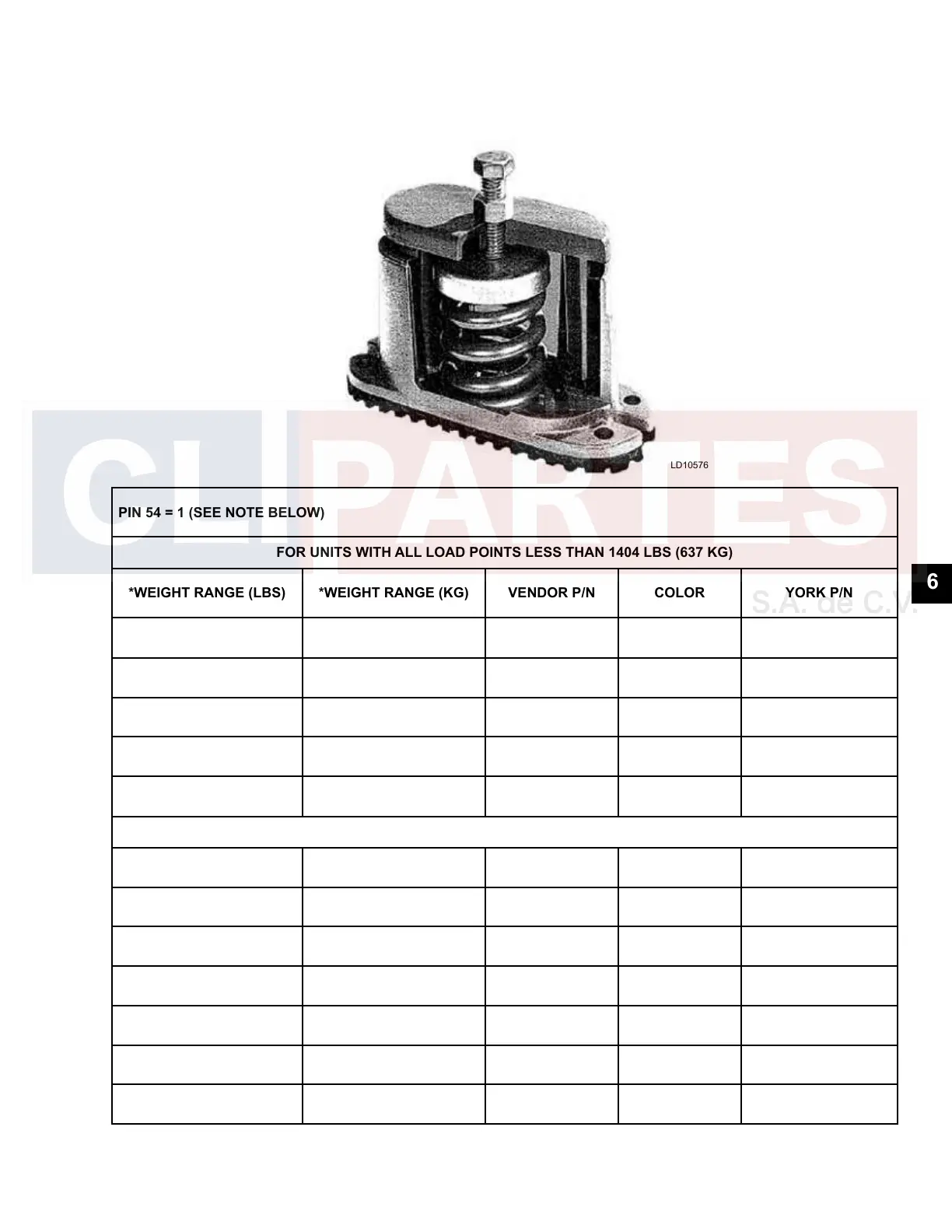

CIP 1" DEFLECTION RESTRAINED MOUNTING SPECIFICATIONS
LD10576
PIN 54 = 1 (SEE NOTE BELOW)
FOR UNITS WITH ALL LOAD POINTS LESS THAN 1404 LBS (637 KG)
*WEIGHT RANGE (LBS) *WEIGHT RANGE (KG) VENDOR P/N COLOR YORK P/N
239-384 LBS 108 to 174 kg CIP-B-450 Red 029-24583-002
384-639 LBS 174 to 290 kg CIP-B-750 White 029-24583-003
639-851 LBS 290 to 386 kg CIP-B-1000 Blue 029-24583-004
851-1064 LBS 386 to 483 kg CIP-B-1250 Gray 029-24583-005
1064-1404 LBS 483 to 637 kg CIP-B-1650 Black 029-24583-006
FOR UNITS WITH ANY LOAD POINT ABOVE 1404 LBS (637 KG)
UP TO 851 LBS Up to 386 kg CIP-C-1000 Black 029-24583-007
851-1149 LBS 386 to 521 kg CIP-C-1350 Yellow 029-24583-008
1149-1489 LBS 521 to 675 kg CIP-C-1750 Black w/ Red 029-24583-009
1489-1786 LBS 675 to 810 kg CIP-C-2100 Yellow w/ Red 029-24583-010
1786-2028 LBS 810 to 920 kg CIP-C-2385 Yellow w/ Green 029-24583-011
2028-2254 LBS 920 to 1022 kg CIP-C-2650 Red w/ Red 029-24583-012
2354-2936 lbs 1022 to 1332 kg CIP-C-2935 Red w/ Green 029-24583-013
* Value is de-rated by 15%
Units shipped before June 15, 2008
