Johnson Controls York YCIV A Series - Chilled Liquid and Suction Temperature Sensor Input Voltage; TABLE 31 - Temperature Input Voltage Sensor (Measured Signal to Shield at the Sensor)

JOHNSON CONTROLS
319
SECTION 9 - MAINTENANCE
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
9
CHILLED LIQUID AND SUCTION TEMPERATURE SENSOR INPUT VOLTAGE

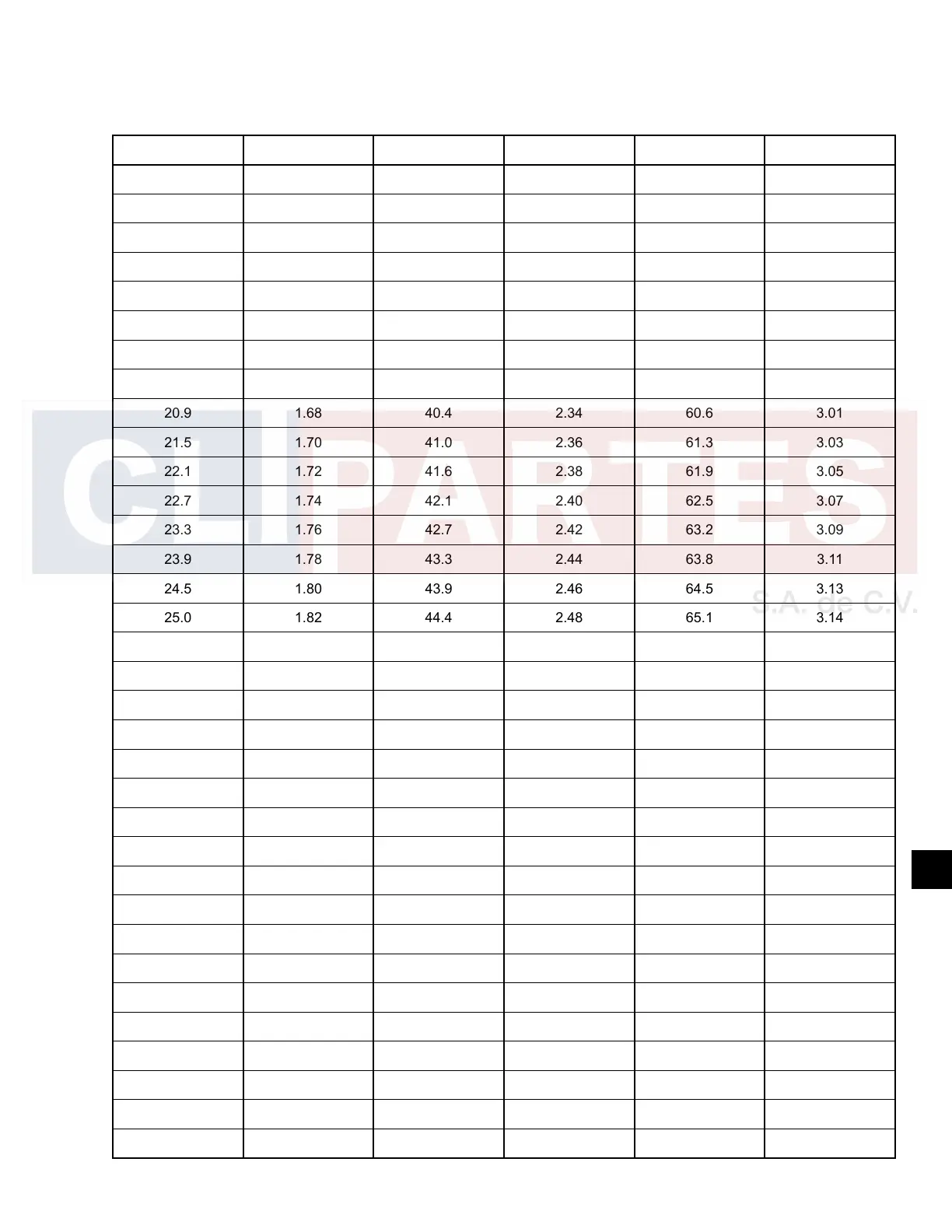

TABLE 31 - TEMPERATURE INPUT VOLTAGE SENSOR (MEASURED SIGNAL TO SHIELD AT THE SENSOR)
TEMP. (ºF) VOLTAGE TEMP. (ºF) VOLTAGE TEMP. (ºF) VOLTAGE
16.1 1.52 35.9 2.19 55.6 2.85
16.7 1.54 36.5 2.21 56.3 2.87
17.3 1.56 37.0 2.23 56.9 2.89
17.9 1.58 37.6 2.25 57.5 2.91
18.5 1.60 38.2 2.27 58.1 2.93
19.1 1.62 38.7 2.29 58.7 2.95
19.7 1.64 39.3 2.30 59.4 2.97
20.3 1.66 39.9 2.32 60.0 2.99
20.9 1.68 40.4 2.34 60.6 3.01
21.5 1.70 41.0 2.36 61.3 3.03
22.1 1.72 41.6 2.38 61.9 3.05
22.7 1.74 42.1 2.40 62.5 3.07
23.3 1.76 42.7 2.42 63.2 3.09
23.9 1.78 43.3 2.44 63.8 3.11
24.5 1.80 43.9 2.46 64.5 3.13
25.0 1.82 44.4 2.48 65.1 3.14
25.6 1.84 45.0 2.50 65.8 3.16
26.2 1.86 45.6 2.52 66.5 3.18
26.8 1.88 46.2 2.54 67.1 3.20
27.3 1.90 46.7 2.56 67.8 3.22
27.9 1.91 47.3 2.58 68.5 3.24
28.5 1.93 47.9 2.60 69.2 3.26
29.0 1.95 48.5 2.62 69.9 3.28
29.6 1.97 49.1 2.64 70.6 3.30
30.2 1.99 49.7 2.66 71.3 3.32
30.8 2.01 50.3 2.68 72.0 3.34
31.3 2.03 50.8 2.70 72.7 3.36
31.9 2.05 51.4 2.71 73.4 3.38
32.5 2.07 52.0 2.73 74.2 3.40
33.0 2.09 52.6 2.75 74.9 3.42
33.6 2.11 53.2 2.77
34.2 2.13 53.8 2.79
34.8 2.15 54.5 2.81
35.3 2.17 55.0 2.83
