JOHNSON CONTROLS
175
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6
COMPONENT LOCATIONS

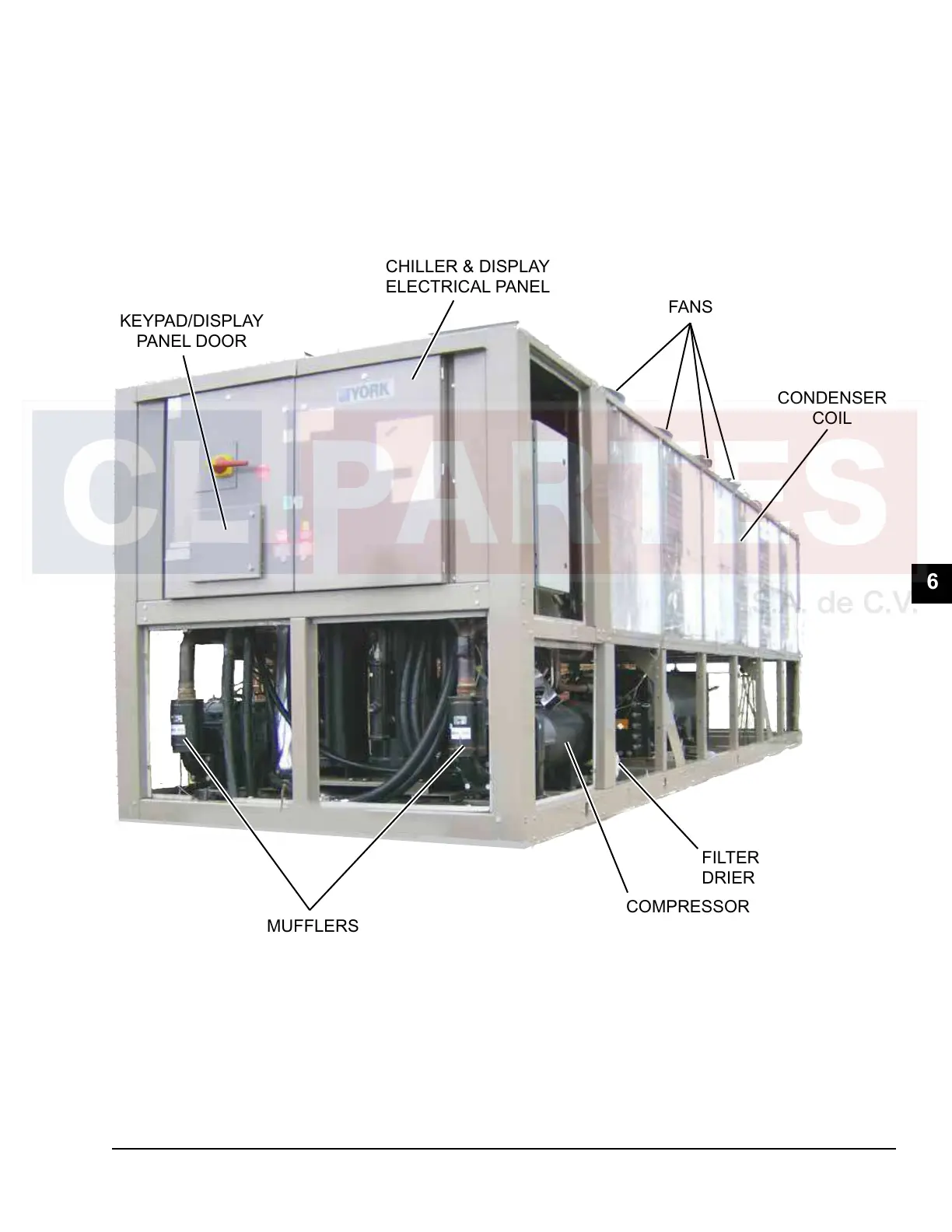

FIGURE 24 - COMPONENT LOCATIONS
KEYPAD/DISPLAY
PANEL DOOR
CHILLER & DISPLAY
ELECTRICAL PANEL
FANS
CONDENSER
COIL
FILTER
DRIER
COMPRESSOR
MUFFLERS
LD13121
