FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA

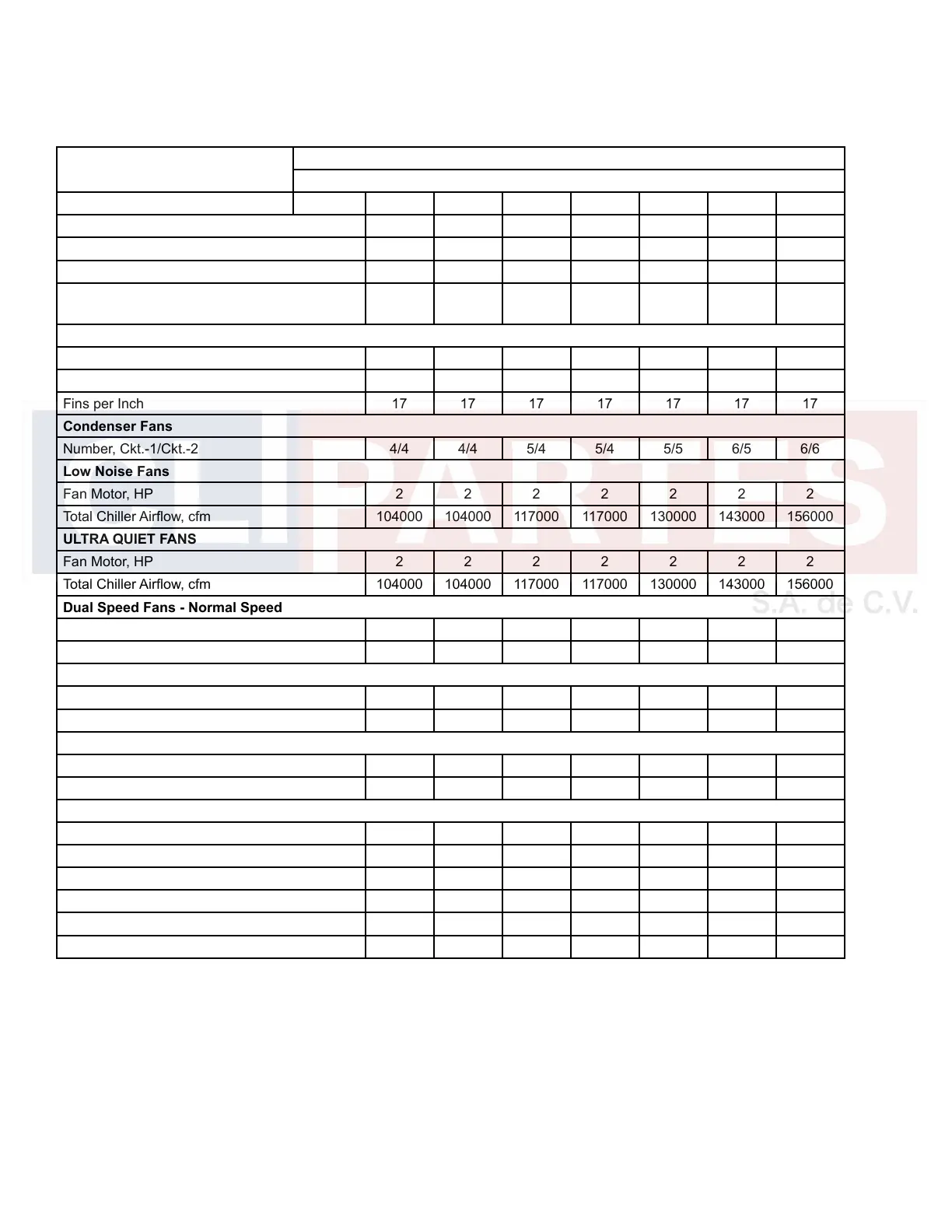

PHYSICAL DATA (ENGLISH - STANDARD EFFICIENCY)
REFRIGERANT R-134A
STANDARD EFFICIENCY
MODEL NUMBER (YCIV____ S/P)
GENERAL UNIT DATA 60HZ 0157 0177 0187 0207 0227 0247 0267
Number of Independent Refrigerant Circuits 2 2 2 2 2 2 2
Refrigerant Charge, R-134a, Ckt.-1/Ckt.-2, lbs 162/162 170/170 185/170 192/175 192/192 230/195 230/230
Oil Charge, Ckt.-1/Ckt.-2, gal. 5/5 5/5 5/5 5/5 5/5 5/5 5/5
Compressors, Semi-hermetic Screw Qty per
Chiller
2 2 2 2 2 2 2
Condensers, High Efficiency Fin/Tube with Integral Subcooler
Total Chiller Coil Face Area, ft2 235 235 264 264 293 323 352
Number of Rows 3 3 3 3 3 3 3
Fins per Inch 17 17 17 17 17 17 17
Condenser Fans
Number, Ckt.-1/Ckt.-2 4/4 4/4 5/4 5/4 5/5 6/5 6/6
Low Noise Fans
Fan Motor, HP 2 2 2 2 2 2 2
Total Chiller Airow, cfm 104000 104000 117000 117000 130000 143000 156000
ULTRA QUIET FANS
Fan Motor, HP 2 2 2 2 2 2 2
Total Chiller Airow, cfm 104000 104000 117000 117000 130000 143000 156000
Dual Speed Fans - Normal Speed
Fan Motor, hp 2 2 2 2 2 2 2
Total Chiller, CFM 88000 88000 99000 99000 110000 121000 132000
Dual Speed Fans - Lower Speed
Fan Motor, hp 2 2 2 2 2 2 2
Total Chiller, CFM 67200 67200 75600 75600 84000 92400 100800
High Static Fans
Fan Motor, hp 5 5 5 5 5 5 5
Total Chiller, CFM 104000 104000 117000 117000 130000 143000 156000
Evaporator, Direct Expansion
Water Volume, gals. 67.0 95.0 95.0 140.0 140.0 140.0 140.0
Maximum Water Side Pressure, PSIG 150 150 150 150 150 150 150
Maximum Refrigerant Side Pressure, PSIG 235 235 235 235 235 235 235
Minimum Chilled Water Flow Rate, gpm 140 160 160 180 180 180 180
Maximum Chilled Water Flow Rate, gpm 675 750 750 800 800 800 800
Water Connections, inches 8 10 10 10 10 10 10
Contact your nearest Johnson Controls Sales Ofce for weight data.
